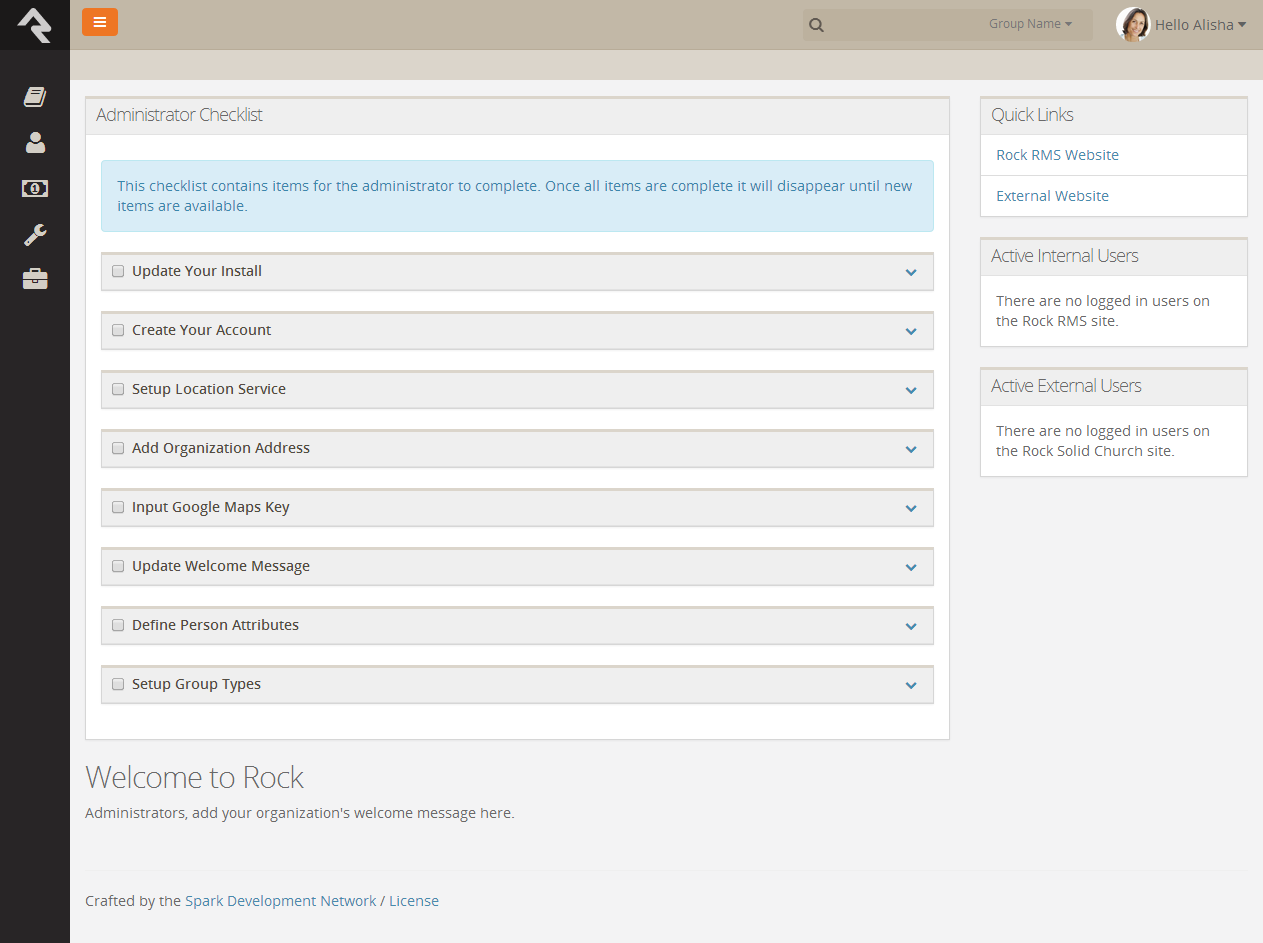

Administrator Checklist

After install you will see an Administrator's Checklist on the homepage. Don't worry; only administrators will see this block. The welcome block below it will greet a majority of your colleagues.

The Administrator's Checklist block gives you a list of things you'll want to complete before you get too far along in your deployment of Rock. Once you've checked all of the items off, this block will disappear, but not forever… After an update there may be additional configuration steps required before you're able to use a new feature. These steps will show up in this block after the update. Think of it as an old friend who shows up in your hour of need (not like your old college roommate who only shows up at the worst possible times.)

Quick Links

You'll see a Quick Links section on the right side of the screen. This is a great place to organize links that your organization uses most often. Some churches have used this section to provide links to:

• The online catalog for ordering office supplies
• Referral lists for counseling and pastoral needs
• The organization's webmail site
• Project management tools the organization uses like Basecamp or Asana
• Facility management tools like ServiceU
• Common Forms

Active Users

Under the quick links section you will see two sections that list active users on the internal and external website. This allows you to see who is active on the site. Clicking on the name will take you to their Person Profile page.

Workflow Tasks

Next on the homepage you will find a list of workflows that pertain to the currently logged in user. This is broken down into two areas.

1. My Tasks This lists out active workflow tasks that are currently assigned to the currently logged in user.
2. My Requests This lists all of the active workflow requests you have launched.

Be Creative

Don't limit yourself to what was provided out of the box. While we'll be providing new blocks for you to add to your homepage (like staff anniversaries and birthdays), you can get started today with some simple, but powerful, tools. Below are some ideas to help get the juices flowing.

• Pastoral Messages: Below the welcome message, add a new HTML block that is secured so only Pastoral staff can see it. This is a good way to share information without overloading the screen with content that only a few people need. You can modify the security of this block to allow an approved group of people to modify it (freeing yourself to work on other tasks.)
• Team Messages: Similar in concept to the pastoral messages, you can secure an HTML block to be seen only by specific teams in your organization.

Entities

The word "entities" is used to describe the classification unit of different types of data in Rock. For instance People, Groups, Financial Transactions, Locations, Pages are all different entities in Rock. If you’re familiar with databases, entities are very similar to tables. In fact, most entities in Rock have an associated table in the database.

You might be asking, "Why do I need to know this?" For the most part, you don’t have to know a thing about entities to successfully use Rock. But, you will see the term in many of the configuration screens so it’s good to know what it is.

Defined Types / Defined Values

Many of the configuration items in Rock are made up of a list of valid values. Think about the Marital Status of a person. While we could have made this a textbox where anyone could type in the marital status of a couple, in today’s world, that could be a disaster. You’d probably get a million different answers to that question. Instead, it's better to provide a list to limit the options to those that make sense to the organization.

The "valid value" concept is prevalent in numerous areas (Record Status, Phone Types, etc). Instead of creating separate screens and logic for each of these, we came up with the concept of Defined Lists. These lists are made up of values (Defined Values) that you get to configure to match your organization.

Location Descriptors

When you create a location, you can define several location descriptors: street address, latitude/longitude point and geo-fence.

• Street Address: This is pretty obvious, the street address of the location.
• Latitude / Longitude Point: The lat/long point is simply the latitude/longitude of the location on the map. You can set this by either providing an address and allowing Rock to convert it to a lat/long (assuming a Geocoding Service is configured) or you can reference the point using Rock’s location picker.
• Geo-fence: A geo-fence is a virtual perimeter for a real-world geographic area or boundary. Geo-fences are used by Rock to define things like regions for groups and to power future mobile applications like check-in.

Types of Locations

There are two types of locations in Rock. Let’s take a look at each and see how they are used by Rock.

Address Standardization and Geocoding

Your attendees' addresses are very valuable, so it's important that they are formatted correctly and validated through the USPS database. Also, in order for these addresses to be used with the latest mapping technologies it's important to convert them into latitude and longitude points through a process called geocoding. Fortunately, Rock makes both of these tasks simple (and free)...

As addresses are entered into the system, Rock can send them to one of many online services to standardize and geocode them. These services will ensure that:

• Addresses are formatted correctly (e.g. fix upper / lower case issues)
• Items like Streets, Avenues, West and East are abbreviated correctly
• Zip+4 is researched and added
• Latitude and longitude are added to your addresses

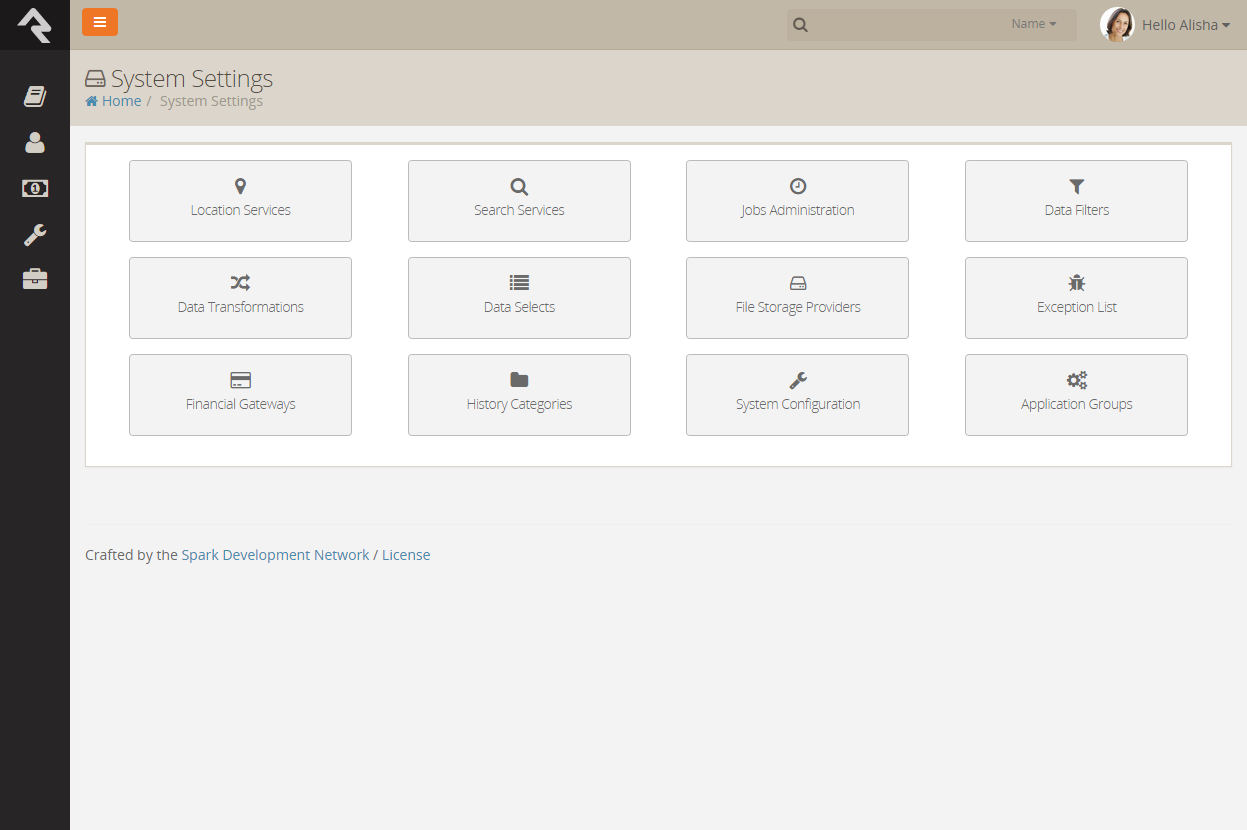

You can set up these services under Admin Tools > System Settings > Location Services. There you will see a list of services that Rock supports. Not every service supports both standardization and geocoding.

Email Settings

The configuration items you provided during the install can be updated under Admin Tools > Communication Settings > Communication Transports > SMTP. Email is sent from Rock using a communication transport. Think of this as a delivery service. Just as you might pick between sending your package via UPS or FedEx, Rock gives you options when sending out your emails. Currently, the only transport that is complete is the SMTP component (more to come soon).

Sending bulk email is difficult in today’s age of spam and spam filters. Simply configuring an ISP or Internal Exchange Server is not enough if you want to be sure that all of your messages will make it to their intended recipients. To do that, you need to make sure your DNS has proper SPF and Domain Key records and monitor that you are not on any blacklists. Even for the largest organizations, this can be an overwhelming task.

Wherever a problem exists, a new service will be created to help solve it and that has certainly been the case in the area of email deliverability. With the importance of email and the complexity of getting your environment right, it makes sense for most organizations to outsource the sending of their emails. These services specialize in getting it right and the pricing is fairly reasonable. Below are a couple of the top services in this area.

• Mandrill (mandrill.com)
• MailJet (mailjet.com)
• SendGrid (sendgrid.com)

These services do require some minor changes to your organization’s DNS settings, but they walk you through the process online to make it easier.

Security Roles

The basic access control unit is the Security Role. While you can provide security specific to an individual, it's often overly tedious and problematic to define security access down to the individual. Using Security Roles is much more flexible and less prone to error.

Having a well thought out strategy for security roles is critical. Too simple and your users might have more rights than they need; too complex and security will be difficult to maintain. We've worked hard to build a foundation for you to build from in this area. Below is a list of security roles that come with Rock with a description of their usage. We strongly recommend looking over these roles and reading their descriptions before you start setting up your staff and users. You can find these roles under Admin Tools > Security > Security Roles.

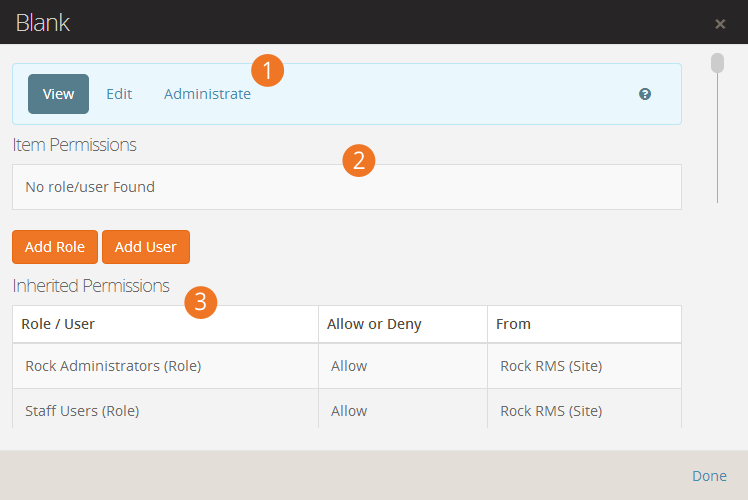

Permissions

Wherever you see the you can manage the security of the item being displayed. This will bring up the Security Editor show below.

1Actions

The first thing you’ll see is a tabbed list of the security actions available for the item. Normally these will be View, Edit and Administrate. You will set permissions for each of these actions.

2Item Permisstions

The Item Permissions list the specific permissions defined for the item. If there are no specific permissions set for this particular item, the permissions will be blank. Instead, security is being inherited from its parent. But now we’re jumping ahead...

3Inherited Permissions

Most items don’t have permissions of their own. They inherit their permissions from their parents. For the most part, you’ll only add Item Permissions when you want to increase the security of the item. This is a very powerful concept. It keeps you from having to constantly and consistently tweak the security of each item. It also allows you to change the security of an item and let the change trickle down to all of its children.

Questions About Updating

Do I have to update to the latest version?

Depending how often you update, you may see several updates available. You don’t necessarily need to update to the latest and greatest version. You can update to any version you wish. Doing so will install all of the previous updates to that point.

Can I skip a specific update?

No, updates are cumulative so you cannot skip over a specific update or patch.

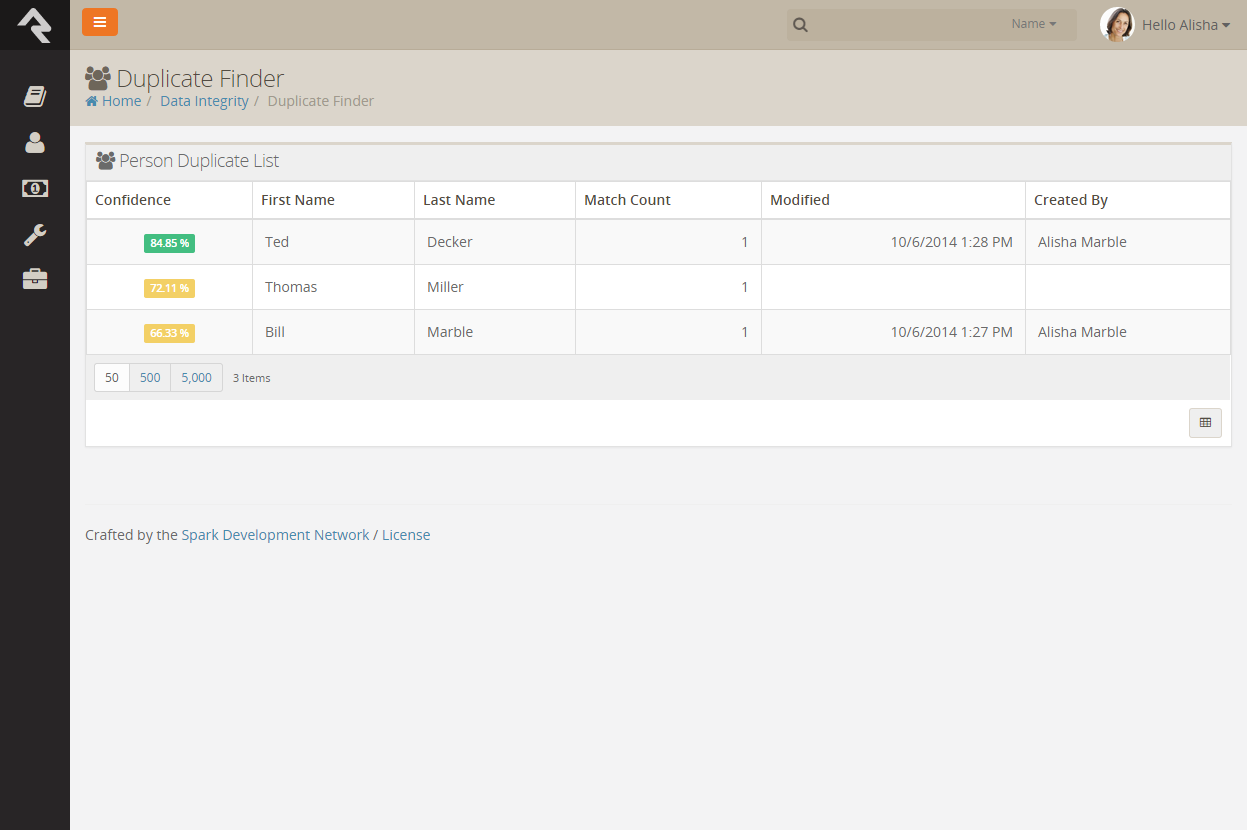

Duplicate Finder

The duplicate finder routinely goes through your database looking for records that could be duplicates. When it finds possible matches, it scores them and lists them for you under Tools > Data Integrity > Duplicate Finder.

1 Confidence:

Indicates the likelihood that this is a duplicate record.

2 Name:

The first and last name of the individual.

3 Record Count:

The number of possible duplicate records for this person.

4 Modified:

The date and time the duplication record was modified. This is another data point to help you determine if a record is a duplicate.

5 Created By:

The person (or possibly application) that created the duplicate record. This helps determine how the duplicate may have come into existence and which data point might be more accurate.

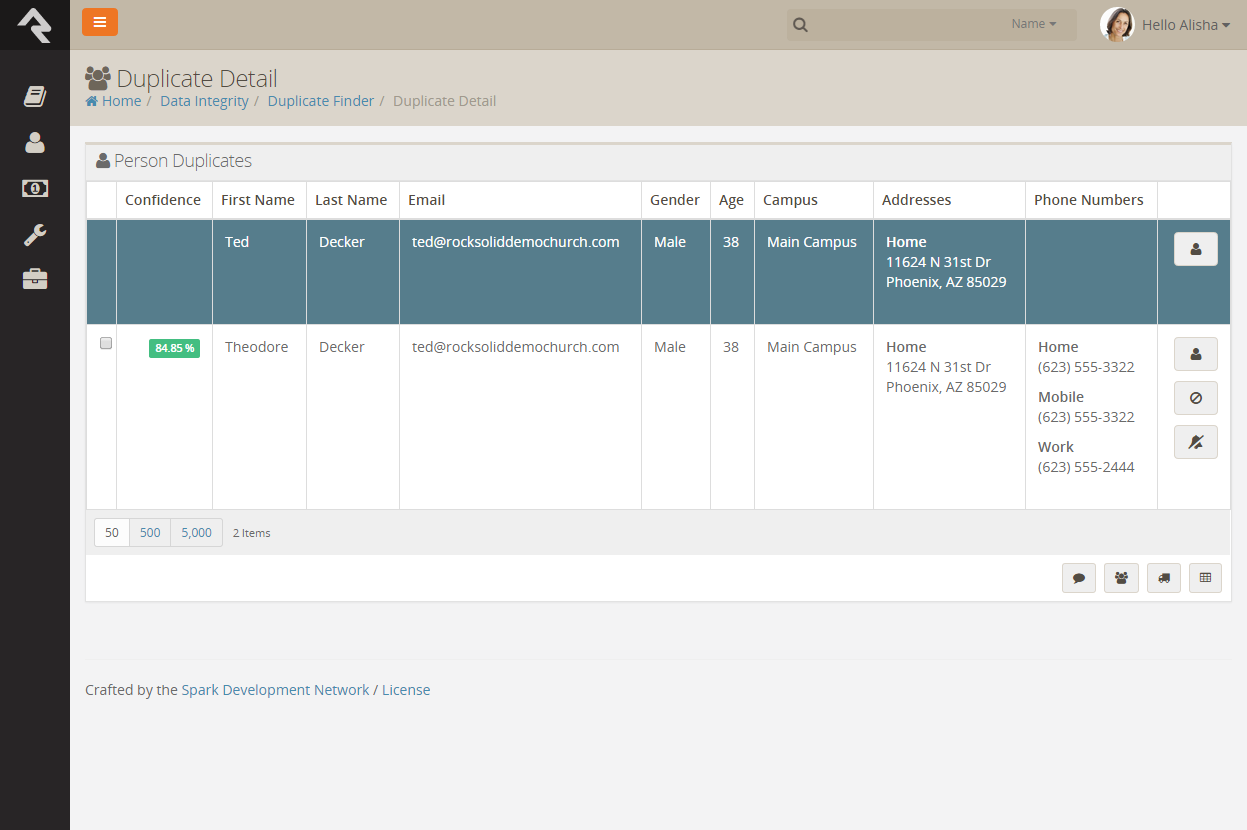

Clicking on a row will take you to the duplicate detail screen.

The top row represents the source record and the rows below represent possible duplicate records. If any of these rows are duplicates, you can select them and select the fa fa-users in the grid footer to merge them. Each record has a series of buttons to the right. These buttons perform the actions defined below.

• Will open the person profile page for this individual in a new window.
• Tells Rock that this record is definitely not a duplicate to the record above.
• Tells Rock that there is currently no way to be sure if this record is a duplicate of the one above. This will keep Rock from showing it as a possible duplicate until more information is available to help determine its true status.

If you're uncertain whether two records are duplicates or not, you can simply decide not to do anything yet. As more data is added to the records, Rock will update the match scores to reflect a more accurate prediction.

Reports

There are several clean up reports that have been created to help you identify records that need your attention. Feel free to add your own reports here. Each of the reports that ship with Rock are documented below.

Workflows

Workflows can be set up to help automate the process of data integrity. Feel free to add your own. We've outlined the ones that come with Rock below.

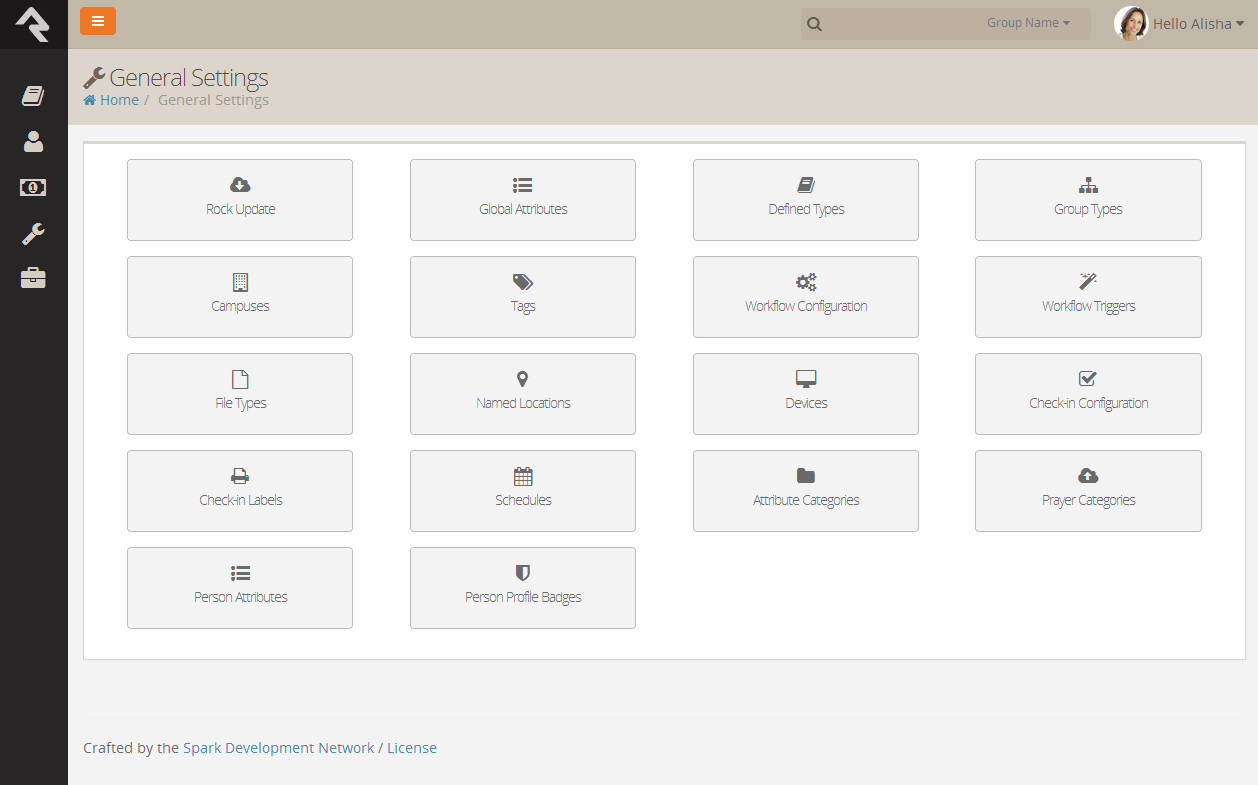

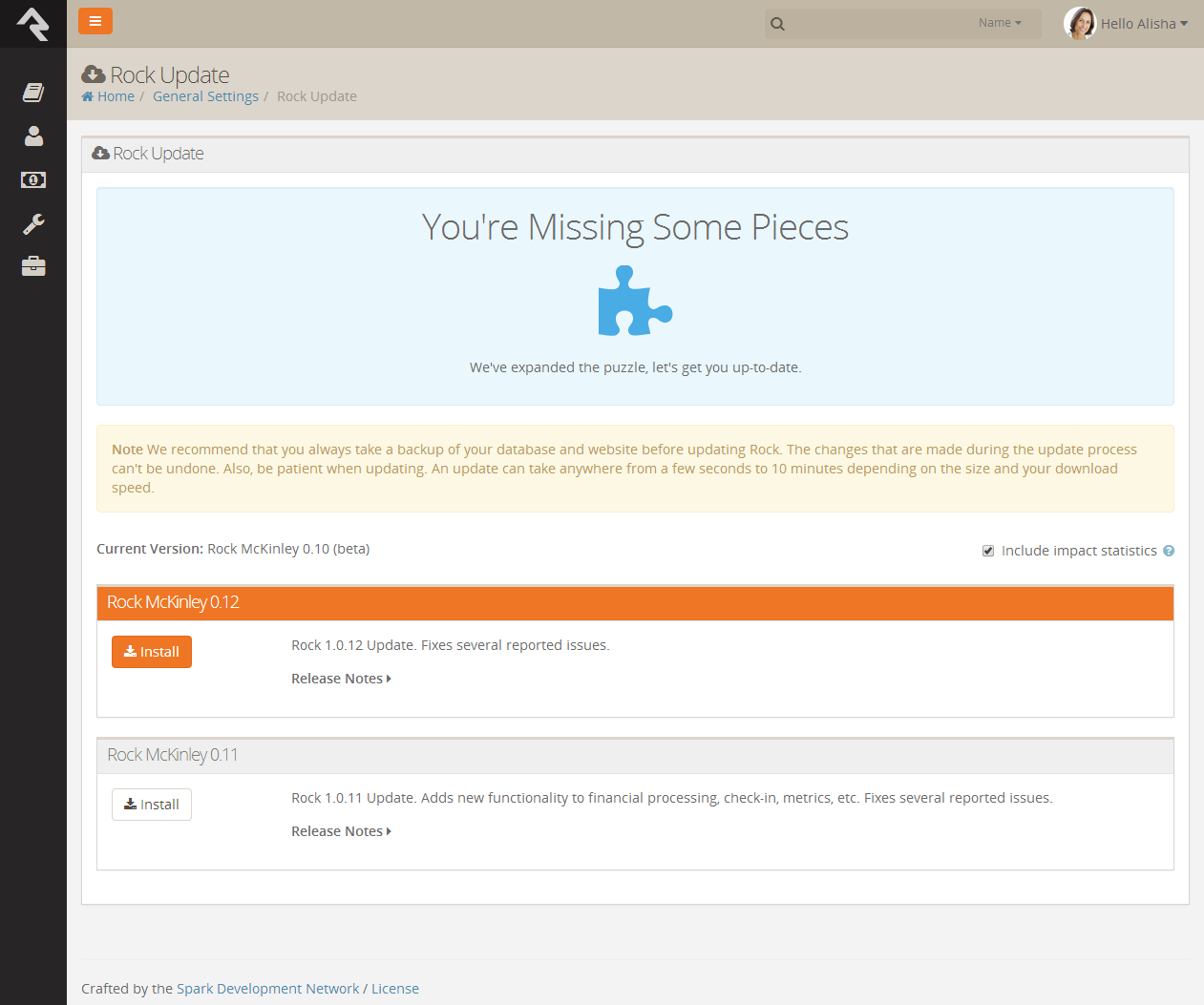

Rock Update

Updates are one of Rock’s best features. Many systems require tedious updates. And many times only the vendor can complete them. Not so with Rock. When an update is made available, all you need to do is visit this screen. Details will be provided about the updates available. When you’re ready, you simply click the Install button. Rock will then download and install the updates for you. How easy is that?!

Global Attributes

Global attributes are the basic configuration settings that are used to customize Rock. Each has a default value that you can override. Many of these were set for you during the installation process. Below is a list of the core settings and descriptions.

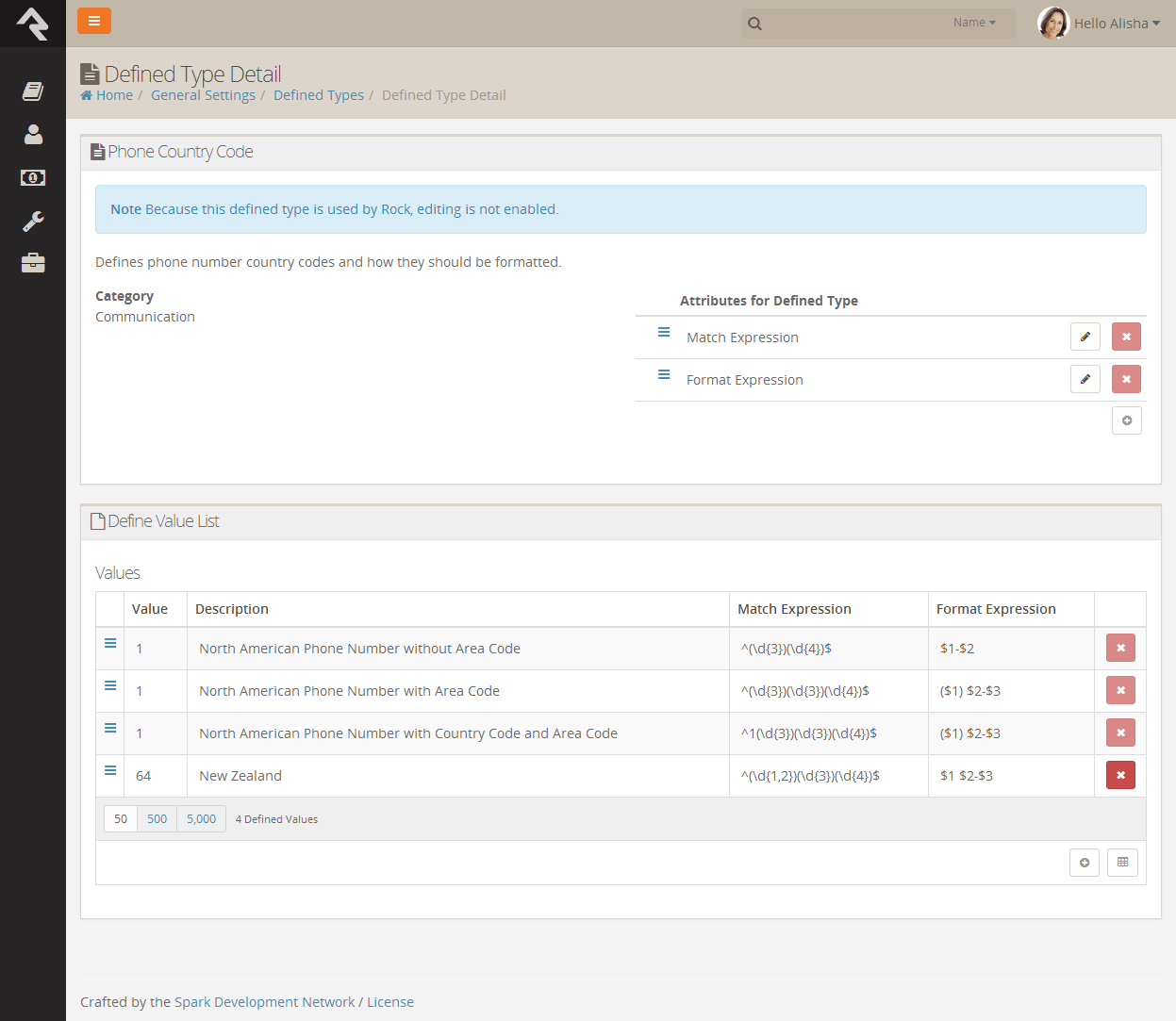

Defined Types

Defined Types are settings that are specific to a certain feature. In the list, you’ll find settings for Check-in, Giving, Marketing Campaigns, Metrics and People. Each of these will be discussed more in sections relevant to each feature, but let’s look quickly at how you can edit these settings.

Each Defined Type can have multiple values (cleverly called Defined Values). To edit the values for a Defined Type, simply click on the item in the grid you want to edit. You will then be taken to a new screen where you can edit its values.

Group Types

The Group Types screen is used to add new types of groups and modify those that already exist. These settings are discussed in detail in the Rock Your Groups guide.

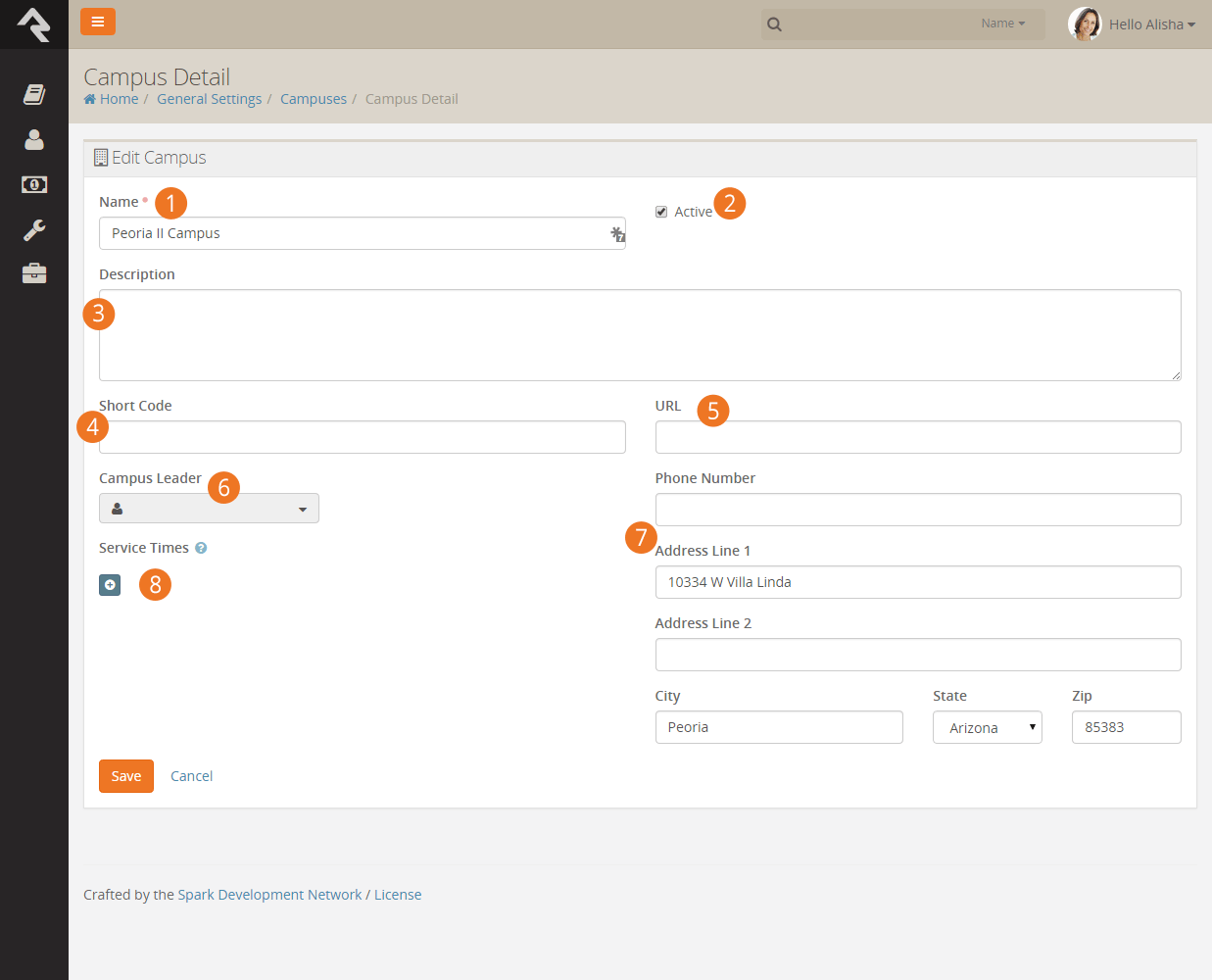

Campuses

If your organization has several sites you can manage them here. See the chapter 'Campuses' to see the various options available to you.

Tags

Tags allow you to categorize people into groupings based on a descriptive label. Tags are discussed in detail in the Person and Family Field Manual. As an administrator, you will be responsible for the classification of organizational and personal tags. Only administrators can create an organizational tag or convert a personal tag to an organizational tag.

Workflow Configuration

Rock is built on top of a powerful workflow engine. These workflows can be configured using the screens found in this section. Creating and configuring workflows is covered in the Working With Workflows guide.

Workflow Triggers

You can configure a workflow to be launched whenever an entity record is changed or deleted. See the Working With Workflow guide for more information on configuring these triggers.

File Types

Rock can be made to store and manage several different types of files. These include things like images for marketing campaigns, label templates for check-in and the pictures of individuals that display on the Person Profile page. These files can be saved in different storage types. The two main storage types are:

• Database: The files are stored as BLOBs (Binary Large OBjects) in the database. Database storage is a good solution for items that you’d like backed-up with your data. Database storage is also a bit more secure since the files are stored in an additional layer of security in the database.
• File System: Files using this storage type are stored on the webserver’s file system. They are securely stored in a directory that cannot be directly linked to. This storage type is best for large files that might eat up your valuable database storage space.

Each file type can select which storage type to use. You can also specify if you would like to cache the file type to improve speed. Caching is especially useful when using storage types other than the file system since they tend to be a bit slower. Enabling the cache will store a cached version on the server to improve speed. Caching is also very useful when working with images. Rock has the ability to size images on the fly. While this is very powerful, it can impact performance, especially with large source images. When caching is enabled though, the resized image is cached, so the resize is not required in the future until the image is updated.

Named Locations

This configuration screen allows you to define specific locations with a name. You will want to use this to define your campuses, buildings and rooms. These Named Locations can then be used with configuring groups, check-in, etc.

Devices

The devices screens are used to manage devices that interact with Rock in some way. Today this is primarily used to help manage check-in kiosks but in the future we hope to add support for all types of devices.

Schedules

Several features require the configuration of repeating schedules. For instance, check-in needs to know your church’s service times to be able to configure the time check-in should start. These screens allow you to create these schedules.

Attribute Categories

Everything stored in Rock can have attributes added to it. For example, we can add numerous attributes to a person that match what is important to your organization. In an effort to keep this from becoming unmanageable, you can group your attributes into categories. These screens help define these categories and provide some basic configuration for each.

The first step in adding a category is to filter by the data entity you wish to work with. The default, and most often used, is Person. For each category you can provide a description and also give it an icon to use on the Rock screens.

Prayer Categories

The prayer features use categories to help organize and classify prayer requests. See the Raising Up Prayer guide for more information on configuring prayer features.

Person Attributes

This screen allows you to manage the person attributes you have configured in the system.

Person Profile Badges

Badges are simple icons that express details about a person’s involvement or activity with your organization. An example of a badge would be baptism or attendance rate.

Sites

The sites section lists all of the websites that are running off of your set-up of Rock. Rock initially comes configured with three different sites:

• Rock Internal: The internal site used by the organization’s staff to manage people and groups, and to manage the system in general.
• External Website: The primary portal for those outside the organization.
• Check-in: The site that is used for the check-in system.

You can add as many sites as you wish. For instance, the site that Spark Development Network uses to manage Rock has all of the sites above plus two additional ones. One hosts the Spark site (sparkdevnetwork.org) and the other hosts the Rock site (rockrms.com). Notice that each site looks different and unique from the outside, but shares a common set of data and configuration.

See the Designing and Building Websites Using Rock guide for more information on configuring new sites in Rock.

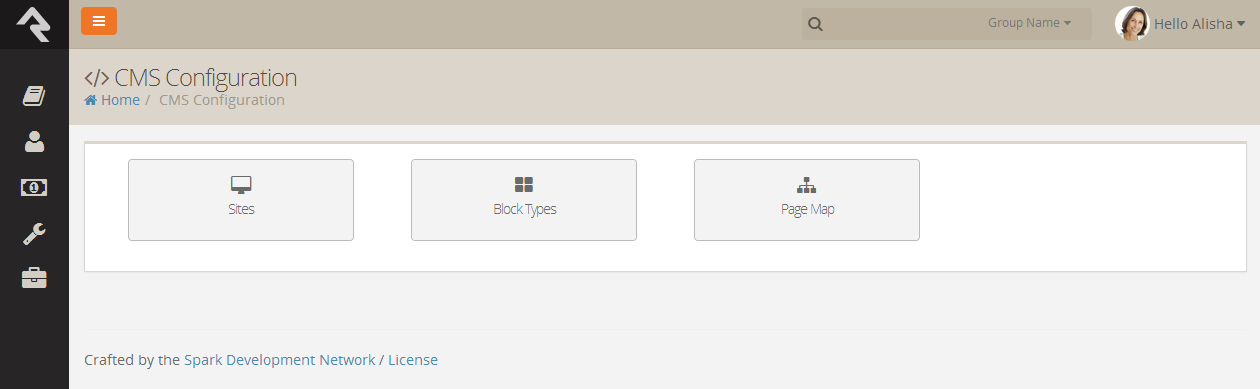

Block Types

Every page in Rock is made up of several blocks. These blocks are the core unit of functionality. You might be familiar with the HTML block on the homepage, for example. For the most part, everything on the screen is a part of one block or another. These screens list all of the various types of block available.

Page Map

While most of the configuration of a page can be completed right on that page, there are times when it’s difficult to navigate to a supporting page if it isn’t shown in the main navigation. This screen lists all of the pages defined in Rock in a simple tree display to help you get where you’re going.

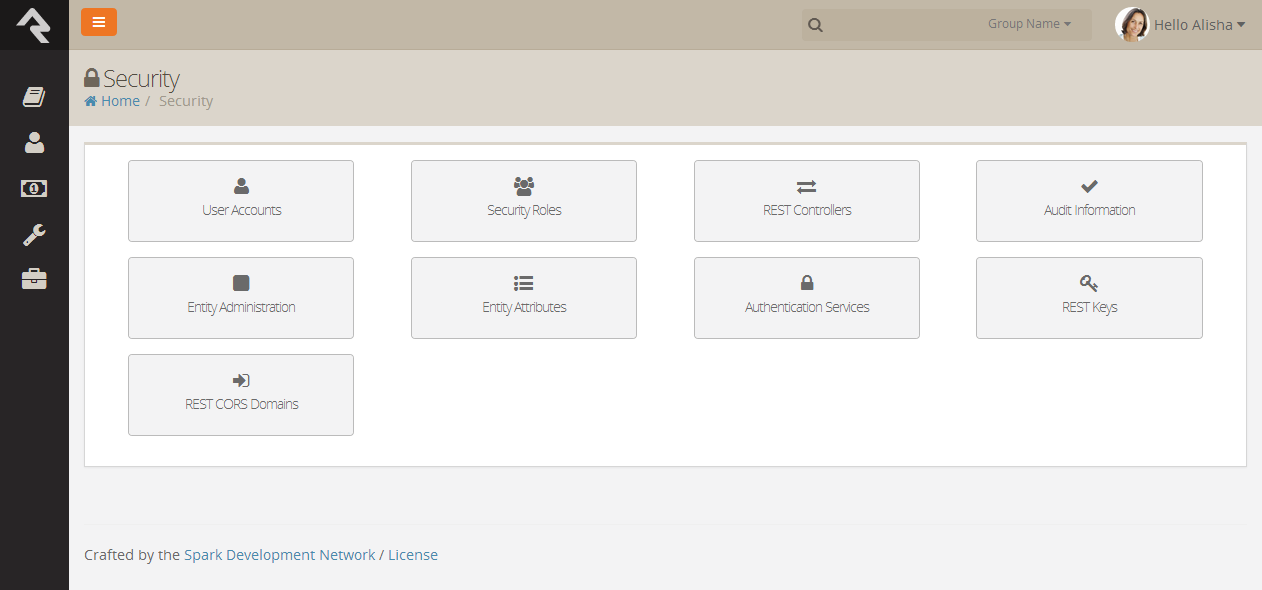

User Accounts

While you can find a specific user’s accounts on their Person Profile page, you can see a list of all user accounts on these screens. This helps determine which person is tied to a specific account and see the general login activity.

Security Roles

Security roles are used to lock down features and data in Rock. While you can configure Rock at the user-level (allow and deny specific users), it’s much easier to assign people to roles and then base your security off of these groups. This adds consistency to your security model, which leads to fewer mistakes. The security role screens allow you to manage your roles and add individuals to them.

REST Controllers

One way you can build applications that extend Rock is through a technology called REST (REpresentational State Transfer, http://en.wikipedia.org/wiki/Representational_state_transfer). If this seems Greek to you, don’t worry. Most developers are familiar with it. The screens in this area help document all of the REST APIs that are available to you. From these screens you can also secure the REST API to ensure only authorized applications can access the data.

Audit Information

Most changes to the Rock database are tracked in a special audit table. The information in these tables is presented in the screens of this section. This is a helpful tool for you to see what changes are being made and by whom. You can also use these logs to write custom SQL reports or create custom jobs that take action after certain changes.

Entity Attributes

This configuration section can help you define additional Organizational Attributes. For the most part, you should not need to do this unless you are writing your own code to run inside Rock. To add an Organizational Attribute, simply create a new attribute that is not tied to an entity. (This really is what an organizational attribute is.)

By now you know about attributes and the power they bring to Rock. In fact, they are more powerful than you realize. We’ve already discussed how attributes can be attached to any type of entity (person, group, etc.) In more complex scenarios, you can actually attach them to an entity with certain criteria. Say you only wanted an attribute to be on a group if it is of the type Serving Team; you could configure that using these screens. Most organizations will never need to get this advanced with their configurations, but it’s good to know that it can be done, if needed.

Entity Administration

Entities are specific types of data. A person is a type of entity. So are a group, an email communication and a financial transaction. For those of you familiar with databases, an entity is like a table in your database. (In fact most, but not all, entities do have a corresponding table in the database.) These sets of screens allow you to view and configure all of the entities in Rock.

There are only two configuration items that you need to worry about. The first is whether the entity is "common." Common entities are shown at the top of the list when you need to select from a list of entities. Rock has preconfigured Groups and People to be common, but you may wish to add more (especially if you start adding custom entities of your own).

You can also add security to entities to help protect the data they contain. For instance, we have configured the Financial Transactions entity to only be viewable by those in the finance security roles. This is especially useful when it comes to using the reporting features of Rock. The security you define here will be used by the reporting engine to ensure that only authorized individuals are allowed to access sensitive data.

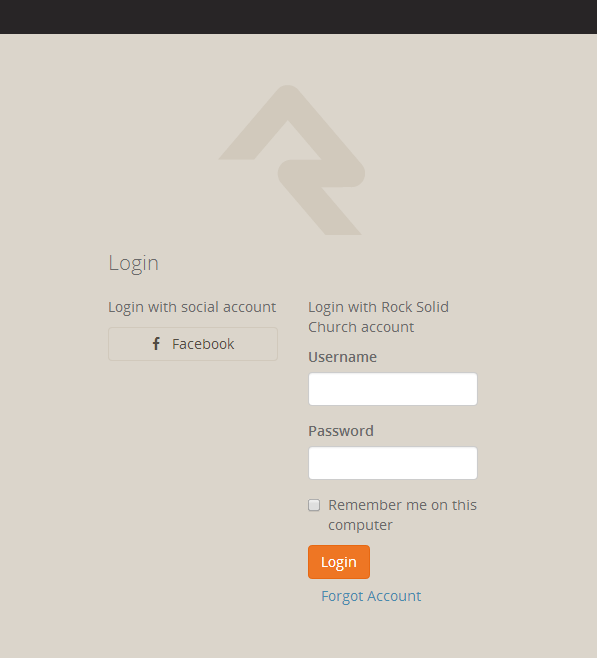

Authentication Services

Rock can be configured to allow several types of authentication during the login process. Let’s look at them more closely.

• Database: This is the most common authentication type for most organizations. This stores the user's username and password in the database. The user's password is stored in a one-way encrypted format so it cannot be retrieved by any means.

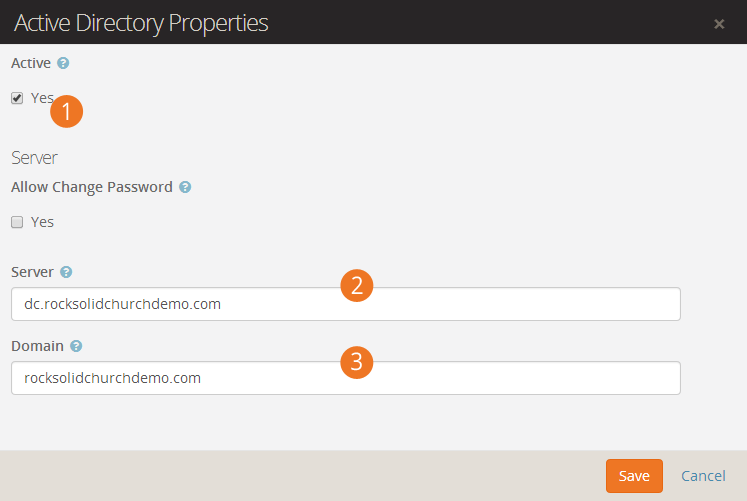

• Active Directory: If your organization uses a Microsoft Active Directory for network logins, Rock can use it to authenticate your staff. To enable this service, you will first need to activate it and provide the address of a Domain Controller server along with the Domain Name of your network. Then, you'll then be able to configure Active Directory logins for your staff under the Security tab on their Person Profile pages.

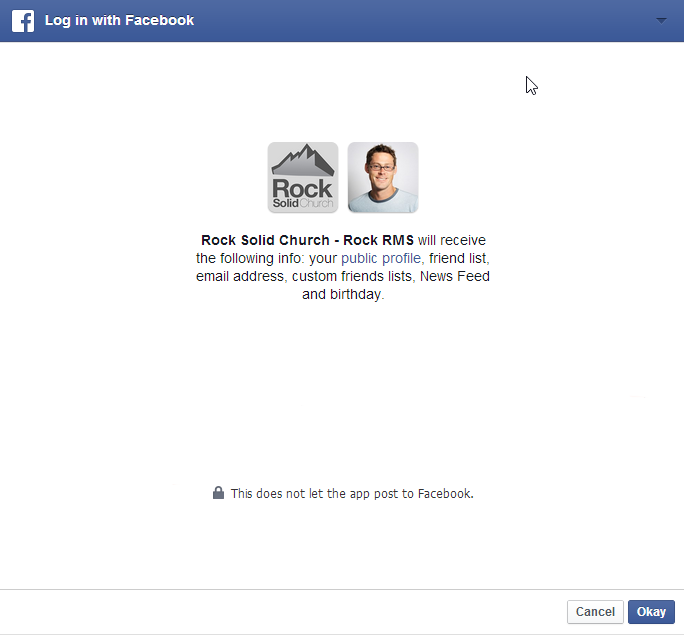

• Facebook: You can also enable the use of an individual's Facebook account as authentication to Rock. This makes their life a little easier when they have one less password to remember. In order to enable this, you will need to configure a Facebook application.

REST Keys

When writing applications that use Rock's REST API you will need to use keys for authenication. These keys can be setup and configured here. See Rock's developer documentation for more information on using REST keys in your applications.

REST CORS Domains

Writing secure web applications requires that all domains that use your server's REST API be authorized using Cross-Origin Resource Sharing (CORS). You can define these allowed domains here.

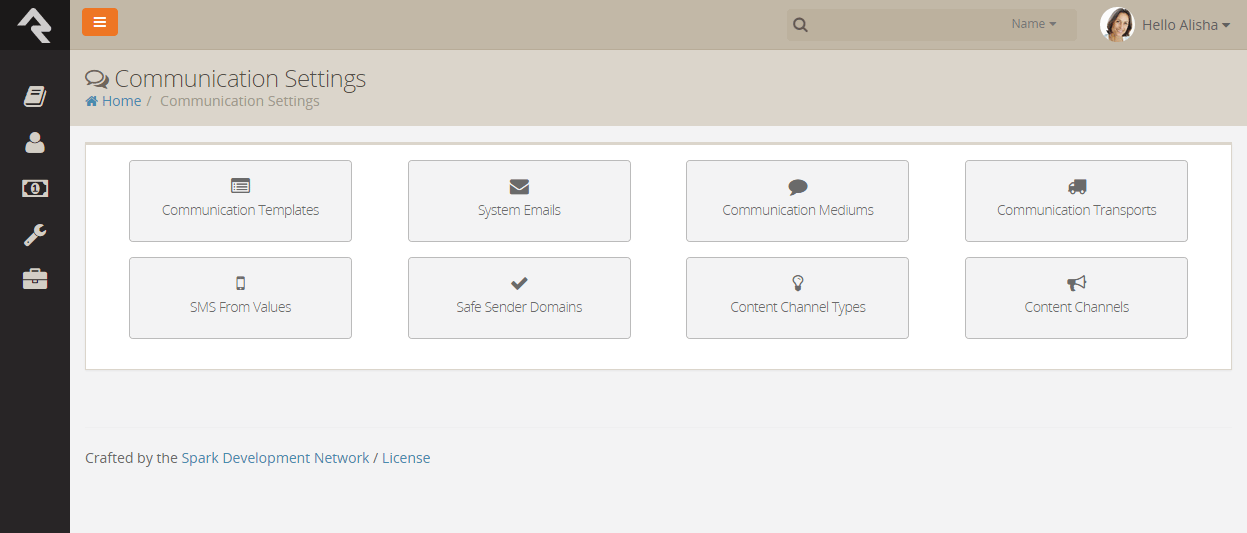

Communication Templates

You'll find over time that you often send the same types of emails and SMS messages over and over. When you see this pattern consider making a communication template to help simplify these tasks and improve consistency.

System Emails

Rock defines several email templates that are used by the system for specific needs. Some examples are the emails that are sent when someone forgets a password or a confirmation message when an account is created. You may want to change the look or wording of the emails to better match the brand and voice of your organization. This is the place to do so.

Communication Mediums

When you send a new communication from Tools > New Communication or from the bottom of any grid that contains a list of people, you can select to send either an SMS message or an email. Each of these are communication mediums. You can configure the settings for each medium from these screens. This is where you can set the Email transport to use normal SMTP or a bulk delivery service like SendGrid. This is also where you can configure the SMS channel to use Twillio to send the messages.

Rock is powerful because of its customization possibilities. Here, you can add additional communication mediums. For example, it’s possible that in the future a new medium might be created to push content through an organization's mobile app. Once this new medium is written (by either a third-party or the core team), it can be simply dropped into Rock and worked by using configuration from these screens.

Communication Transports

We mentioned services like SendGrid, Twillio and SMTP above in the Communications Mediums section. These delivery options are called Transports. They are what take the message contents and make sure that they get to the recipients. Each has a set of configuration options specific to its needs. For example, the Twillio transport requires an account SID and a token to tie into your account. These settings can be provided using these screens.

Like channels, new transports can easily be added over time, from either the core Rock team or third parties.

SMS From Values

This menu item is a hotlink to the SMS From Values defined type. This defined type helps you configure the SMS environment. See the Communicating With Rock guide for more information on SMS.

Safe Sender Domains

This menu item is a hotlink to the Safe Sender Domains defined type. This defined type defines the domains that can be used to send emails. If an Email communication is created with a From Address that is not from one of these domains, the Organization Email global attribute value will be used instead for the From Address and the original value will be used as the Reply To address. This is to help reduce the likelihood of communications being rejected by the receiving email servers.

Content Channel Types

Rock's dynamic content capabilties are a cornerstone of its content management system (CMS) feature set. The Content Channel Types helps to define the data structures for dynamic content. You can read more about these tools in the Communicating With Rock guide.

Content Channels

The Content Channels represent the actual data that is defined for use by the CMS tools. Again much more information on these tools can be found in the Communicating With Rock guide.

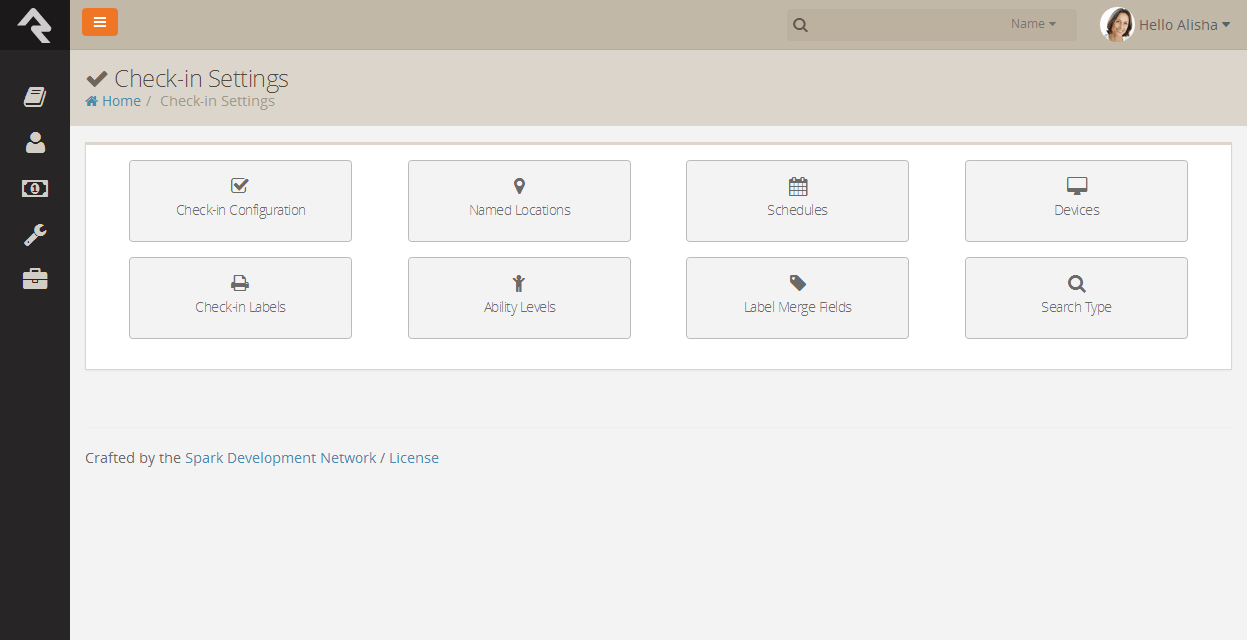

Check-in Configuration

These screens help manage the setup of your check-in configurations. These settings are discussed in detail in the Checking-out Check-in guide.

Named Locations

This configuration screen allows you to define specific locations with a name. You will want to use this to define your campuses, buildings and rooms. These Named Locations can then be used with configuring groups, check-in, etc.

Also available under Admin Tools > General Settings > Named Locations

Schedules

Several features require the configuration of repeating schedules. For instance, check-in needs to know your church’s service times to be able to configure the time check-in should start. These screens allow you to create these schedules.

Also available under Admin Tools > General Settings > Schedules

Devices

The devices screens are used to manage devices that interact with Rock in some way. Today this is primarily used to help manage check-in kiosks but in the future we hope to add support for all types of devices.

Also available under Admin Tools > General Settings > Devices

Check-in Labels

The check-in process can be configured to use several formats of printed labels. These labels and their configuration are managed using these screens. The Checking-Out Check-in guide also covers the creation and configuration of these labels.

Ability Levels

This is a short-cut link to the Ability Levels defined type. Also available under Admin Tools > General Settings > Defined Types > Ability Levels

Label Merge Fields

This is a short-cut link to the Label Merge Fields defined type. Also available under Admin Tools > General Settings > Defined Types > Label Merge Fields

Search Types

This is a short-cut link to the Search Types defined type. Also available under Admin Tools > General Settings > Defined Types > Search Types

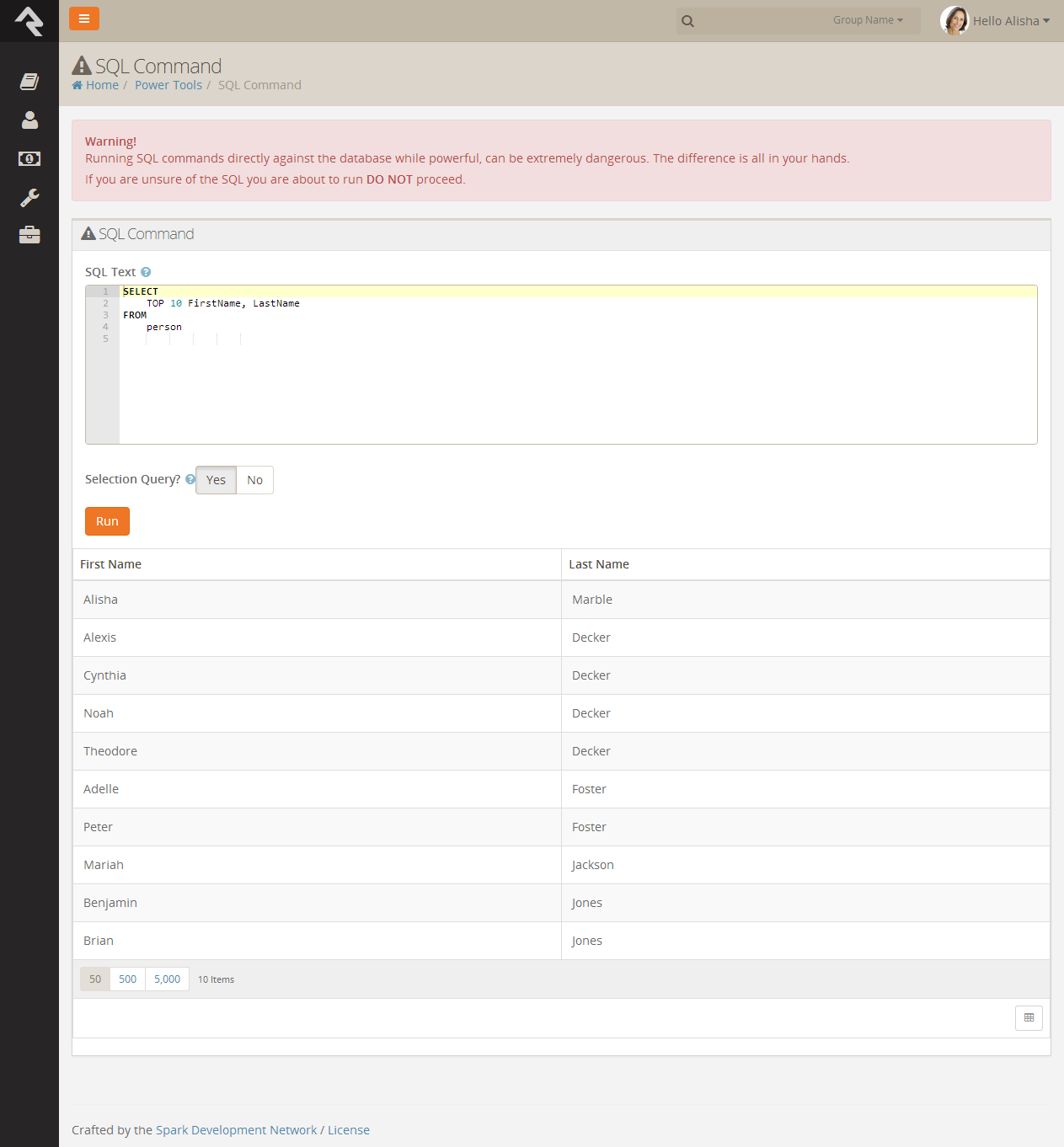

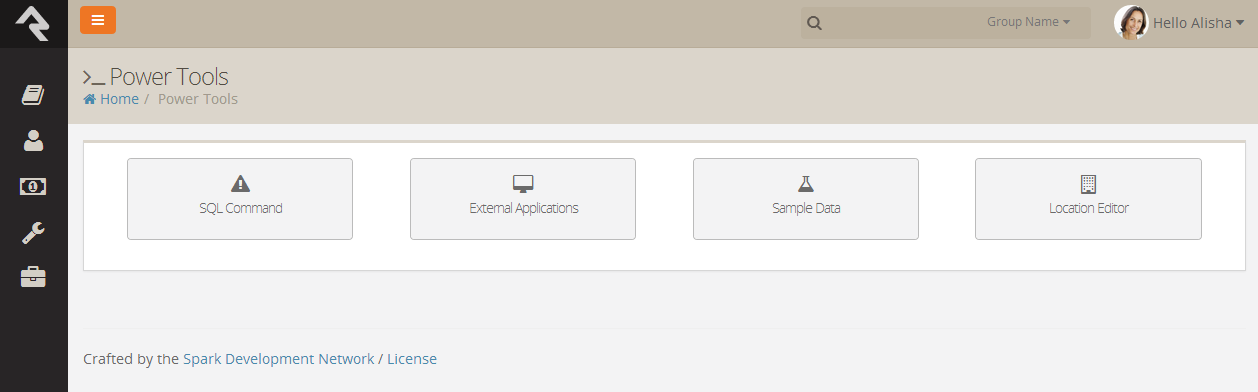

SQL Command

The SQL Command page is very powerful, but should be used with great caution. Rock is built on top of Microsoft’s SQL Server database. While for most people, this is a detail they don’t need to know, at times administrators may want to type in a SQL command to get direct access to their data.

The SQL Command block allows you to type in a SQL command and have it execute directly in the database. When used with a SELECT command, the results of your query will be displayed in a grid below the command.

You can also enter in UPDATE and DELETE commands, if you wish. In order for them to work, you’ll need to flip the Selection Query toggle as an additional fail-safe.

External Applications

We've worked hard to make as much of Rock available through a web interface as possible. Some functionality, though, requires interaction with devices like check scanners (which don’t work through today’s web browsers). Other times there are situations, like creating giving statements, where the processing of a request could take awhile to complete. In these cases, we’ve developed Windows applications to run on your desktop. These applications can be downloaded from the links provided in this section.

Sample Data

When you're just starting out, it's helpful to have some sample data to play with. Or, perhaps you'd like to create a training environment for teaching your staff. Either way, adding a standard set of people, families and groups is a breeze with Rock.

The Sample Data block is a one-step way to import a consistent set of sample data. You'll recognize many of the names from the examples in the Rock documentation. Free free to run the import repeatedly to keep time-sensitive data like attendance current.

Location Editor

Locations are normally managed through the entity they are attached to (e.g. families, groups, etc.) There are times though when you may want to adjust some properties of a location in a way that is not possible through the other means. Examples of this might be:

• An address will not geocode correctly so you would like to select the location yourself using Rock's map point selector.
• You have corrected a geo-point and you want to lock it to ensure it is not re-geocoded.
• You can also re-standardize and geocode the address from this screen.

Because of the large number of locations in your database, locations will not be displayed in the location list until you provide some filtering critieria.

Geocoding Services

Knowing the location of those who attend your church can be very powerful. In order to do this, you need to be able to convert an attendee's address (3120 W Cholla St Phoenix, AZ 85029) to a latitude / longitude point (33.590795 , -112.126459). To do this you’ll need to run your addresses through a geocoding process. Rock will handle all of the work. All you need to do is provide a geocoding service to handle the requests. Rock has a couple of services for you to pick from. More information on geocoding can be found in the Locations Section of this document.

Standardization Services

Similar to the geocoding services, you can also send your addresses through a standardization process. These processes can fix the following for your addresses:

• Fill in any missing items (555 W Main to 555 W Main St)
• Fix any case issues (555 w main st to 555 W Main St)
• Standardize elements (555 West Main Street to 555 W Main St)
• Append Zip+4 info (85383 to 85383-3622)

The standardization process helps increase the quality of the addresses in your database. More information on address standardization can be found in the Locations Section of this document.

Search Services

Rock’s Smart Search box at the top of every page allows you to search for people and groups using various criteria like name, phone and email. These screens allow you to manage these search types. For the most part you’ll want to leave them set as-is but you can inactivate one if you find it is not helpful in your situation. A key concept is that you can write your own search services with some custom coding. If you do, they will appear on this list for you to enable and configure.

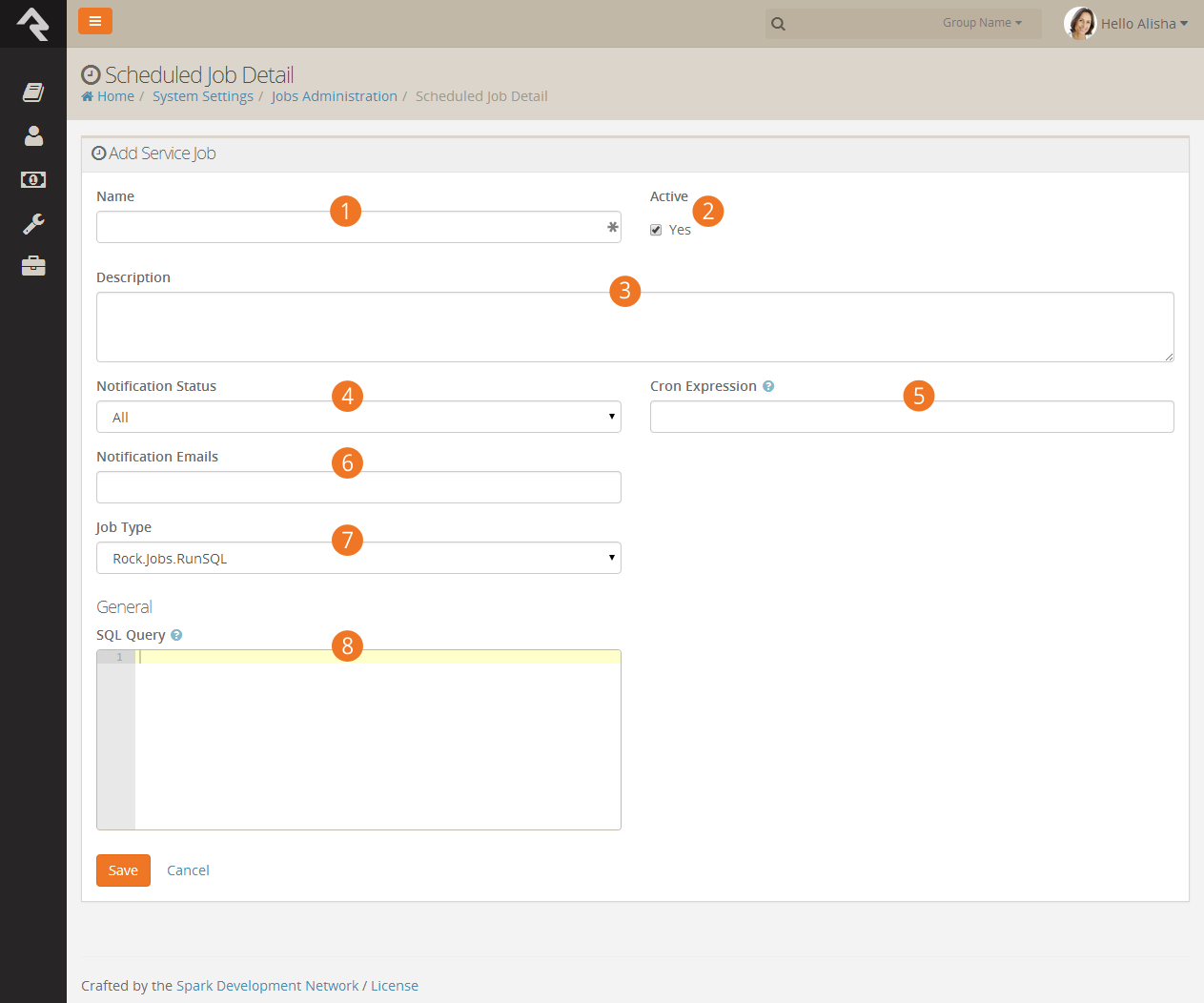

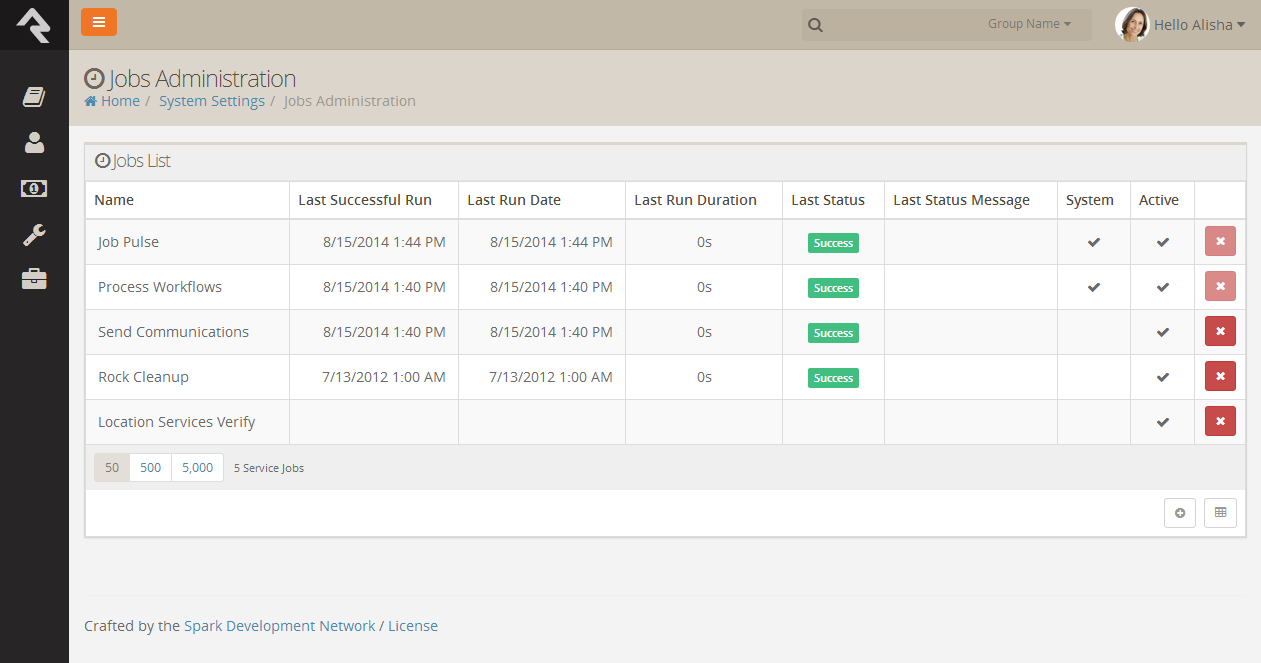

Jobs Administration

While much of Rock works through the interaction of individuals within the system, there are times when you’ll want to run functionality in the background. Examples of this might be some clean-up of the database or updating of data in the database. These background tasks are called Jobs and can be managed and scheduled through the screens in this area. More details on jobs can be found below.

Data Filters

Data Filters are an integral part of Rock’s reporting strategy. Hopefully you’ve already read about them in the Taking Off With Reporting guide. At a high level, data filters allow you to narrow down your view of data by providing specific criteria. These filters can be enabled, disabled and secured in this set of screens. Like many things in Rock, you can develop your own Data Filters that can be managed here.

Data Transformations

Once you’ve filtered your data, you can add a transformation to it before it is displayed. Say you filtered to see only children who have attended twice in the last two months, but you really want to display information about the parents of these children. A transformation (in this case the Person Parent Transformation) would convert the child data to parent data. You can manage these transformations here. Just like with filters, you can also develop your own transformations.

Data Selects

Data selects are used in reporting. When you create a report, you provide it with a data view to act as a filter. You also add columns to your report. Many of these columns will be attributes of the person or group. You can also choose to add some powerful dynamic columns. These dynamic columns are managed and secured from this screen.

Exception List

Errors are a fact of life. Some errors are the result of bugs in the software. Despite all of our work to eliminate bugs, some will sneak by us. Exceptions can also occur when blocks and pages are misconfigured. While you can set these errors to be emailed to you under the General Settings > Global Settings > Email Exceptions List, you can also view the history of these errors here.

Exceptions are shown in the order they occur. Instead of showing you every error in a large list, we have grouped them by type. This helps you determine how often an error is occurring.

File Storage Providers

Under the Admin Tools > General Settings > File Types section we discussed file storage providers. These providers help Rock manage the saving and retrieving of files to different storage mediums. The two default storage types are Database and File System. Under the File System configuration you can change the default location for files storage. For the most part, you can leave these settings as you found them.

Financial Gateways

Financial gateways allow Rock to move money from individuals’ accounts to the organization. Information on these gateways and their configuration are discussed in detail in the Rock Accounting Principles guide.

History Categories

Similar to the audit functionality, is the concept of History. While the audit feature shows nearly every change made in the system, History only shows certain changes that we’ve determined are important.

This section of the System Configuration allows you to create categories for history types. This helps coordinate history changes into related groups. For the most part, you will not need to change these categories.

System Configuration

This screen allows you to change some technical configuration settings of Rock. For the most part you should never need to worry about these settings, but we have provided this screen to help you change these settings if needed. Each of the settings is discussed below.

• Time Zone: During the install you should have set your time zone. If you need to change it, you can do that here.
• Max Upload File Size: For security reasons, webservers limit the maximum file size that can be uploaded. This helps to limit the impact of denial of service attacks. Rock has set the default value to 10 MB. If you need more you can update the size here.
• Run Jobs In IIS: By default, Rock’s job engine runs on the webserver. This setting allows you to disable this in order to run jobs as a Windows Agent. See the Jobs section for more information on this topic.

Application Groups

Several features in Rock rely on storing information on people. For instance when you use the photo request feature, Rock needs to track who has uploaded a photo, who's photo needs to be verified and who has opted-out of getting future requests. Instead of writing tons of custom code to do this we've chosen to create a re-usable group type called Application Groups. These groups are listed here for administrator access.

Managing Your Campuses

You can manage your campuses from Admin Tools > General Settings > Campuses. There you will see a list of campuses that you can manage or add to. Selecting a campus will bring up the campus details screen.

1 Name

The name of the campus.

2 Active

As you bring new campuses online, you may want to add them as inactive until you have time to configure them and prepare for the announcement.

3 Description

You can use this field to provide a description for your campus. This might be something you display to your website guests.

4 Short Code

When you grow beyond two or three sites, it's common to develop a shorter naming convention to help you refer to a campus.

5 URL

The web address for the campus.

6 Campus Leader

The person placed in charge of running the campus.

7 Contact Information

The phone number and address of the campus.

8 Service Times

The servcie times for the campus.

Adding Attributes to Campuses

There are probably other bits of information you'd like to track about your campuses. Adding additional Attributes to campuses is simple. Just follow these steps:

1. Go to Admin Tools > Security > Entity Attributes.
2. Click the to add a new attribute.
3. Select the Entity Type of "Campus" and set up the attribute information. You do not need to add a value for the Qualifier Field or Qualifier Value fields.
4. After clicking Save, you can configure security on who can edit this attribute if you wish.
5. You will now be able to set a value for this attribute in the campus details page above.

Configuring a Job

You can change the configuration of a current job or add a new job under Admin Tools > System Tools > Jobs Administration. There you will see a list of currently configured jobs. You can click a job to modify the configuration or click the Add button in the grid footer to create a new job.

After you select to add or configure a job you’ll see the screen below.

1Name

Provides a concise description of what the job is doing.

2Active

Allows you to mark the job active or inactive.

3Description

Documents in detail what that job is doing and any background criteria that you may want to know in the future. Use this field to document all the details about the job.

4Notification Status

Defines when a notification email should be sent. Options are: Success – when a job finishes successfully; Error – when a job encounters an error; All – for both Success and Error; None – never

5Cron Expression

Defines when the job is run. Cron expressions are a concise schedule pattern. They can be difficult to write without help. We recommend using the CronMaker.com website to assist you in creating these expressions.

6Notification Emails

A comma separated list of emails for the job; to use when a notification needs to be sent.

7Job Type

Selects the type of job to run.

8Job Settings

Each job type will have a set of configuration items. In this sample, the RunSQL job defines the SQL statement that you want to run when the job executes.

Under the Hood of the Jobs Engine

By default, the jobs engine runs on the webserver under the IIS webservers context. By default, IIS will shut down if no requests come in for a page. This will mean that your jobs may not execute late at night if no one is visiting your site. To mitigate this problem we created a special Job Pulse job that is set to run every 30 seconds. Its only purpose is to load a special KeepAlive.aspx page. Doing so keeps IIS alive at all times.

Large or complex organization may wish to run their jobs in a more robust fashion. For these situations, Rock can be configured to run the jobs engine as a Windows service. This requires some special configuration. We have outlined the steps required to configure this below.

Steps to Setup Rock to Run Jobs as a Windows Service

1. Edit your web.config by setting the appSetting RunJobsInIISContext to false.
2. Install the Rock Jobs Windows Service on a machine with access to the Rock database. The installer for this can be downloaded from Admin Tools > System Settings > External Applications.
3. Edit the connection string in the app.config of the installed application to match the settings of your database server.
4. Start the Rock Jobs Windows Service.

Active Directory

Many organizations already have a Microsoft Active Directory (AD) infrastructure in place for their employees to log into the network, email and other resources. Rock can use this as an additional authentication source once configured.

You can setup Rock to use your Active Directory under Admin Tools > Security > Authenication Services > Active Directory

1

Be sure to activate the security service.

2

2. Provide the server name of one of your Active Directory Domain Controllers.

3

3. Configure the AD Domain on the server to authenticate to.

Once the service is configured, you're ready to create logins in Rock. Active Directory logins can't use the normal Rock registration process. Instead you must add the login manually to the user on the Person Profile page.

Facebook Authentication

Password fatigue is a common problem with sites that require registration. In fact, a recent study found that 92% of shoppers abandon a website rather than go through the process of recovering a lost or forgotten password! However, if the website has a social media login option, they are 65% more likely to return. The same study showed that a majority of users prefer Facebook as their credential of choice. Luckily setting up a Rock website to use Facebook authentication is quick and easy. Simply follow these steps.

1. The first step is to visit the Facebook Developer website (https://developers.facebook.com/apps) and create a new application. When you do this you might consider creating a login for your organization, rather than linking it to your personal Facebook account.
2. At the top of the screen click Apps and then click Add a New App. This will begin the quickstart setup.
3. You will presented with screen asking what platform your app is for. Choose Website.
4. Next, provide a display name for your app. and select a Category. Once complete, click Create App ID.
5. Next, enter in your site and mobile URL. Both can be the same URL.
6. Next, click Skip to Developer Dashboard.
7. From the Developer Dashboard, click on App Details.
8. On this screen, add a support email address to the User Support Email. Also, add a 1024x1024 icon for your app. This will be show to your users when they authenticate, so be sure to use an organization logo that they will recognize and trust. Click Save Changes when complete and then return to the application homepage by clicking the "Dashboard" menu link.
9. Finally, the new application's "App ID" and "App Secret" add these values to the Facebook Services configuration under Admin Tools > Security > Authentication Services > Facebook.

Facebook is now activated and ready to be used. You can now enable it on each of your login pages by setting the block settings of the login control to enable the "Facebook" external service provider. Having this block setting allows you to decide which of your websites allow Facebook to be used (some organizations may prefer not to allow Facebook to be used to login to their internal Rock site.) Once enabled your login screen will now have an additional button to allow individuals to login using their Facebook account.

When someone logs in using Facebook they will see a screen similar to the one below that links their Facebook account to your server.

When an individual's Facebook account is used for the first time Rock will apply the following logic to attempt to match the Facebook account to a Rock record.

1. If a person record can be found with the same First Name, Last Name and Email, the login is attached to this record. As an extra bonus, if no birthdate is in Rock for this person the birthdate from Facebook will be added to the person’s record in Rock.
2. If an exact match could not be made, a new Rock record is created using the information from their Facebook account. The record status of this new individual is set to "Pending" so they will show up under the "Pending Individuals" report Tools > Reports > Data Quality > Pending Individuals.

Phone Numbers

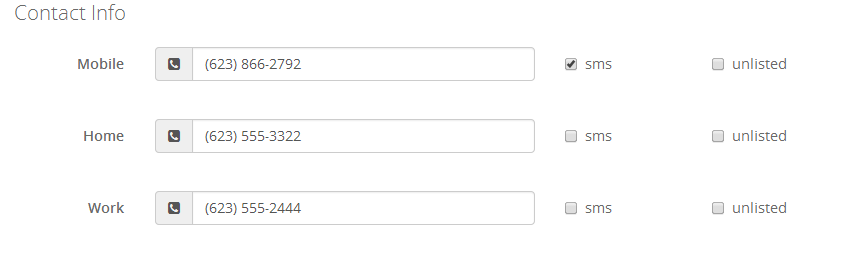

Post install, Rock is configured to support only US-formatted phone numbers. When only one country is configured, the phone entry field looks like the example below.

This field can easily be adjusted to support other countries. Simply add country specific formatting fields to the Admin Tools > General Settings > Defined Types > Phone Country Code defined type.

Each new entry should have the following values.

• Value: This is the country code that is used when dialing the number
• Description: A short description of the phone formatting pattern
• Match Expression: This is a regular expression that is used to match the value you entered and apply the correct formatting to it. For instance a seven-digit number in the US would match the formatting rule 555-5555 while a 10 digit number would match to (555) 555-5555.
• Formatting Expression: This string is used to apply the formatting to the matched number. Each grouping of numbers is represented by a $#.

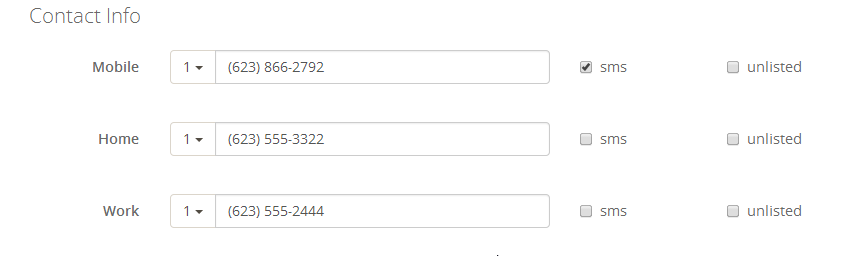

Once you add a second country, the phone number field will change a bit in look. You will notice the addition of a country code selection at the beginning of the input.

Dates & Times

We believe the .Net framework that Rock is built on should handle the formatting of dates and times correctly across regions. If you find an area of Rock that shows a date and/or time in a US format, please let us know by opening a Rock issue. Before opening a request, be sure to check the server's culture setting. This can be found on the ‘System Information’ dialog access from the Admin Toolbox at the bottom of each page.

Currency

There really isn't any magic in Rock’s implementation of local currencies. Behind the scenes, currency is stored simply as a number. You can change the currency symbol displayed within the application under Admin Tools > General Settings > Global Attributes > Currency Symbol.

International Address Support

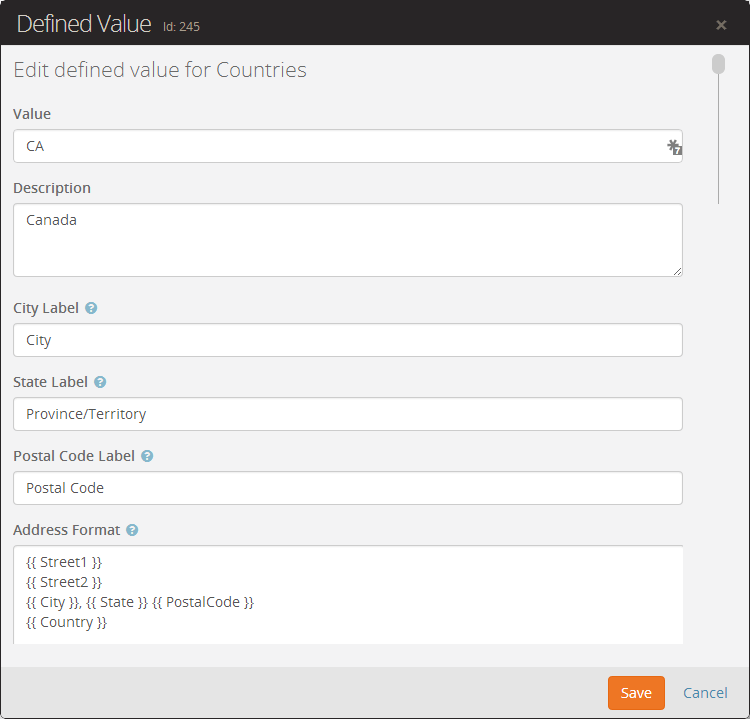

By default, Rock is set to accept and display US-formatted addresses. For most organizations operating inside the US, this will be the preferred configuration. Enabling support for international addresses is simple and remarkably powerful. Let’s take a look.

Strategies for Full Localization

Full localization, including the support of multiple languages, is outside of the scope of the Rock project. However, it is possible for someone to fork Rock's source and localize the code and database contents. If you are interested in starting an internationalized port let us know and we'd be happy to help share your work.

What To Do When Rock Won't Load

You make a configuration change and next thing you know Rock's not loading any longer. What should you do?! First, relax. A calm mind will lead to a quicker resolution while stress might only dig you in deeper. Here are some things you should try first.

SELECT TOP 100 *
  FROM [ExceptionLog]
  ORDER BY [CreatedDateTime] DESC
