Render Pipeline

Rock Mobile is a runtime shell. Your screens are not compiled into the app the way they are in a typical .NET MAUI project. The app downloads page and block definitions from your Rock server while it is running, and turns them into a visual tree on the device.

That means a single block passes through several stages before anyone sees it, and different features are resolved at different stages by different engines. Knowing the order is most of what you need to reason about the whole system.

The Pipeline

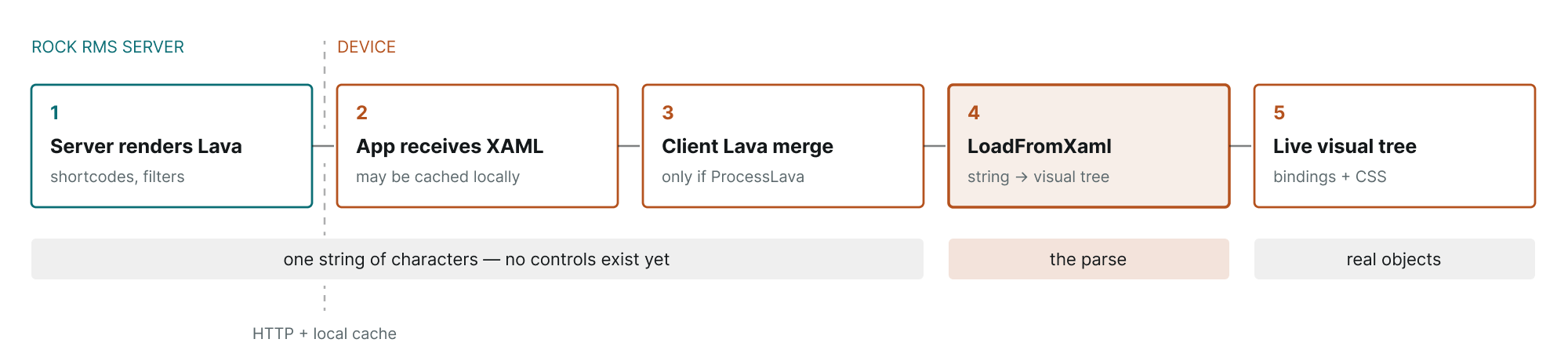

The five stages that render a Rock Mobile block:

Stage 1 — the server renders Lava. Your block's XAML is authored with Lava in it. On the server, the full Rock Lava engine runs over that template: shortcodes expand, filters run, entity commands hit the database, merge fields are substituted. What comes out the other side is finished text.

Stage 2 — the app receives the XAML. The response arrives over HTTP. Depending on the block, the app may also persist it locally, either in the app-shell package it syncs at startup or in a per-block cache with a configurable duration.

Stage 3 — an optional client-side Lava merge. Some blocks can run a second Lava pass on the device, against merge fields only the device has. This is off unless the block's Process Lava On Client setting is enabled, and the engine here is much smaller than the server's.

Stage 4 — the parse. The app hands the string to MAUI's runtime XAML loader. This is where elements are actually constructed. Before this call there is no Label, no Grid, no layout — only characters.

Stage 5 — the live visual tree. The constructed objects are attached to the page. From here bindings evaluate, stylesheets apply, and the tree responds to change for as long as the page lives.

Stages 1 through 3 all do the same kind of work. They transform a string into another string. None of them know what a Label is; none of them can inspect or modify a visual tree, because no visual tree exists yet.

Everything before Stage 4 is just text. Everything after it is an object graph. Lava never sees your visual tree. TheXAML parser never sees your Lava. This has two practical consequences worth internalizing:

1. Lava cannot react to anything about the constructed UI. It cannot know a control's measured size, whether a binding resolved, or what the layout did. It finished its work before any of that existed.
2. Any Lava output has to survive as valid XML. Before parsing, the shell round-trips the string through an XML reader and writer in order to inject the namespaces that unprefixed elements and markup extensions resolve through. If a merged value introduces an unclosed tag, a bare &, or an unbalanced quote, the failure takes down the whole block, not just the fragment that produced it.

Two Lava Engines

The word "Lava" is used for both stage 1 and stage 3, but they are different engines with very different reach.

What is available on the server versus on the device:

The client-side engine has no shortcode support at all — not partial, not degraded. An unexpanded {[ ... ]} tag is simply text the engine does not recognize, so it passes straight through to the XML reader.

Client-side merge fields are assembled in three layers: app-level (Device, AppValues, CurrentPerson, DeviceTheme, Context), page-level (PageParameter, PageValues, Page), and block-level (AttributeValues, ConfigurationValues, Block). Property access within them is allow-listed rather than open, so you cannot walk arbitrary object graphs even for objects that are present.

The rule of thumb: if a piece of logic needs data, do it on the server. The device-side pass is for the handful of things only the device knows.

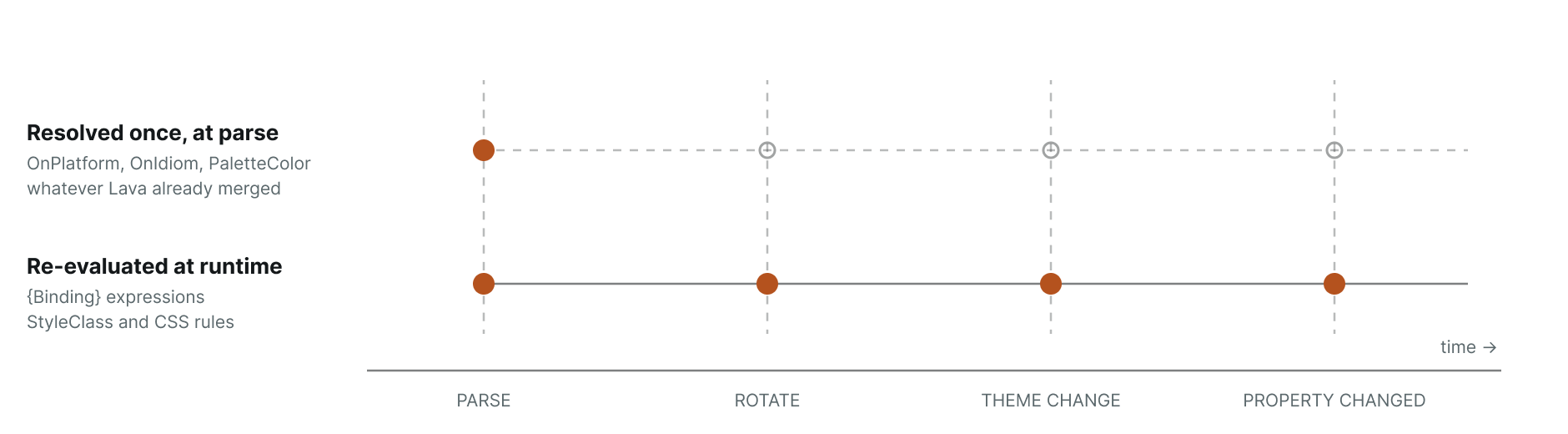

Parse-Time Versus Runtime

Inside stages 4 and 5 there is a second distinction, and it is the one that surprises people coming from compiled XAML.

Markup extensions resolve once. When the parser encounters OnPlatform, OnIdiom, or Rock:PaletteColor, it calls the extension, takes the value, sets the property, and discards the extension. There is no live object left behind. These are one-time decisions made while the element is being constructed.

Bindings are built at parse time but evaluated at runtime. The parser constructs a Binding object rather than a value. That binding resolves when a BindingContext propagates to the element and re-resolves on every change notification afterward. In a Rock Mobile block the BindingContext is the block's view model, assigned in the block's constructor — before any XAML is loaded — which is why {Binding} expressions in server-authored markup just work.

CSS is applied at runtime and re-applied. Stylesheets resolve against the tree once it is attached, and the shell maintains classes such as ios, android, phone, tablet, and dark-mode.

So OnIdiom will not respond to a rotation and OnPlatform will not respond to a theme change. That is not a defect; those values were decided and discarded during construction. Anything that must change after the screen exists needs a binding or a style class.

Reasoning

Most questions about what works with what have the same shape, and the same method answers them: identify the stage each feature is resolved at. If two features resolve at different stages, they do not interact — the earlier one only hands text to the later one.

As an example, a question that is genuinely unclear at first glance: would an OnPlatform definition work inside a shortcode?

Walk the stages. The shortcode expands at stage 1, on the server, and emits characters. If those characters spell <OnPlatform>, the server neither knows nor cares — it is producing text. At stage 4, the parser reads that markup and resolves it against the actual device. So yes, it works, and the reason is that the two never meet.

The same walk also surfaces the caveats. Lava written inside the shortcode body is evaluated on the server, so {% if Device.DevicePlatform == 'iOS' %} and <OnPlatform> are not equivalent even though both appear to branch on platform. And whatever the shortcode emits still has to be valid XML at stage 4.

Diagnosing Failures

Work down the stages; the earliest one that could have failed usually did.

1. Is the feature available at that stage? Shortcodes and entity commands in a client-merged template are the most common cause of "it works on the web but not in the app."
2. Did the merged output stay well-formed? Unclosed tags and bare ampersands in merged values take the block down.
3. Does the fragment declare its own xmlns? It should not. The wrap step injects the default namespace plus x:, Rock:, and Common:; a fragment that declares its own default namespace keeps it for that subtree and loses the shell's additions.
4. Does the value need to change after render? If so it needs a binding or a style class, not a markup extension.
5. Is a cached response involved? A block with DynamicContent and a CacheDuration can be rendering server output from hours ago.

One trap worth knowing in advance: a Lava error usually surfaces as a markup error. The shell's merge helper catches exceptions and returns the exception message as the rendered string, which is then handed to the XML reader and fails there. If a block shows an error box whose text does not look like markup, read it as a Lava message and check the template syntax first.
