Inherits from Xamarin.Forms.ContentView

Note

If you'd like to show an animated GIF, use the default Image control instead.

One of the most common controls you'll want to use is the Image control. Because of its importance, effort has been invested into ensuring that it has all the power you need. Let's start with the basics.

<Rock:Image Source="https://server.com/photo.jpg" />

Is that it? No, we're just getting started. Below are all of the properties you can add to images.

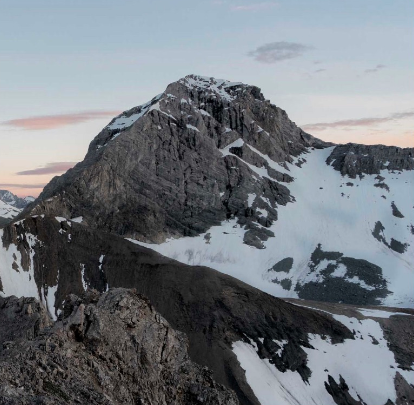

Basic Image

Properties

Property	Type	Description
Aspect	Aspect	Determines how the image will fill the space allotted. Valid values are: AspectFill - Fill the space with the image, some parts of the image may be cropped. AspectFit - Scale the image to fit the space, may leave space empty. Fill - Scale to exactly fill the space, may warp the image.
BackgroudColor	Color	The color to use for the background. Useful as a placeholder while the image downloads.
Command	ICommand	The command to execute when the user taps the image.
CommandParameter	object	Parameters to pass to the command.
ErrorPlaceholder	string	URL of the fallback image if loading fails.
HeightRequest	int	Desired image height.
WidthRequest	int	Desired image width.
HorizontalOptions	LayoutOption	Layout within parent horizontally (e.g., Center, FillAndExpand).
LoadingPlaceholder	string	URL of a loading image placeholder.
Ratio	string	Format is height:width (e.g., '4:2').
Source	string	URL of the image.
VerticalOptions	LayoutOption	Layout within parent vertically.
Margin	Thickness	Use format Margin="Left,Top,Right,Bottom".

Done now? Nope, still have much more to consider.

Image Transformations

You can apply several different transformations to your images. Each is discussed below.

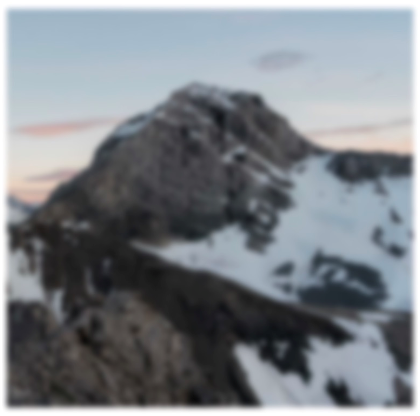

Blur

You can easily add a blur to your image with this simple transformation.

Warning

Blurring is a very CPU-intensive operation. The higher the radius value the more intensive this becomes. Use caution to not over blur something dynamically when you can instead replace it with a statically blurred image. Android devices have been known to crash with radius values over 15 or so.

Property	Type	Description
Radius	Float	The amount of blur to add.

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:BlurTransformation Radius="4" />
</Rock:Image>

Circle

The circle transformation masks your images into a circle shape. The syntax for this is below.

Property	Type	Description
BorderSize	int	The size of the optional border around the image.
BorderColor	Color	The color of the border around the image.

<Rock:Image
    Source="https://server.com/photo.jpg"
    BackgroundColor="#c4c4c4"
    HeightRequest="128"
    WidthRequest="128"
    Aspect="AspectFill"
    HorizontalOptions="Center"
    VerticalOptions="Fill">
    <Rock:CircleTransformation BorderSize="4"
        BorderColor="rgba(255, 255, 255, 0.58)" />
</Rock:Image>

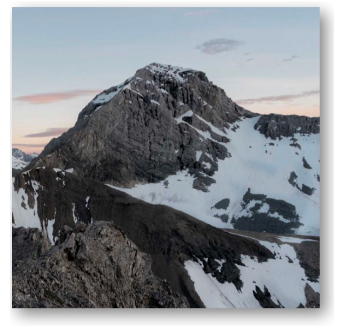

Drop Shadow

The filter adds a customizable drop shadow to your images.

Property	Type	Description
Distance	double	Shadow offset distance.
Angle	double	Shadow direction angle.
Radius	double	Shadow blur radius.
Color	Color	Shadow color.
Opacity	double	Shadow opacity.

Important

When using the drop shadow transformation be sure you do not have a background color. Otherwise, the background color will cover the drop shadow.

<Rock:Image
    Source="https://server.com/photo.jpg"
    BackgroundColor="#c4c4c4"
    HeightRequest="300"
    WidthRequest="300"
    Aspect="AspectFill"
    HorizontalOptions="Center"
    VerticalOptions="Fill">
    <Rock:DropShadowTransformation
        Distance="8"
        Angle="135"
        Radius="4"
        Color="#c4c4c4"
        Opacity="0.5" />
</Rock:Image>

Fill Color

This fills the image with the selected color. Not sure why you'd ever use this? Well, there's a great usage for this when used with Masks on layered images.

Property	Type	Description
Color	Color	The color to fill the image with.

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:FillColorTransformation Color="#41BFD0" />
</Rock:Image>

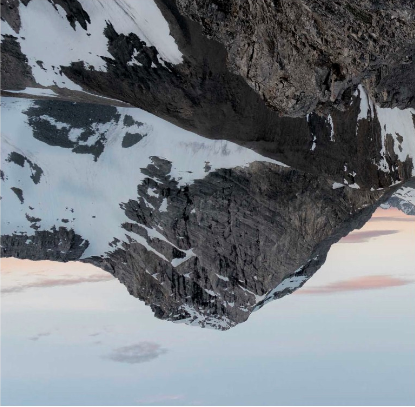

Flip

Flips the image either horizontally, vertically, or both.

Property	Type	Description
Direction	FlipDirection	One of: Horizontal, Vertical, Both

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:FlipTransformation Direction="Both" />
</Rock:Image>

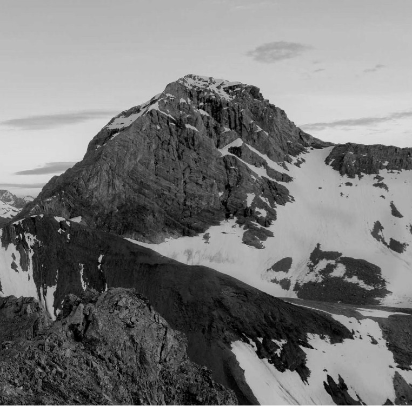

Grayscale

Converts the image to grayscale.

Property	Type	Description
Saturation	double	1.0 = original, 0.0 = grayscale, -1.0 = invert

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:GrayscaleTransformation Saturation="0" />
</Rock:Image>

Reflection

Draws a reflection of the image as if the image were sitting on a glass surface.

Property	Type	Description
Size	double	Size of the reflection area.

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:ReflectionTransformation Size="96" />
</Rock:Image>

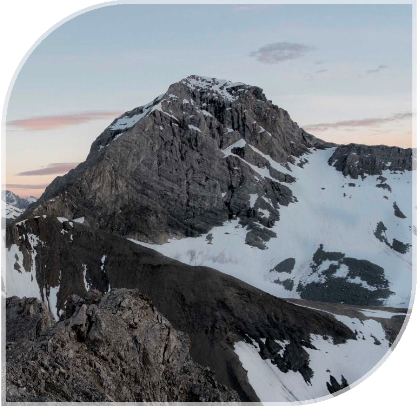

Rounded

Rounds the corners of the image and optionally adds a border.

Property	Type	Description
CorderRadius	CornerRadius	One value or specific for each corner.
BorderSize	float	Optional border size.
BorderColor	Color	Border color.

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:RoundedTransformation CornerRadius="120, 0, 0, 120"
        BorderSize="4"
        BorderColor="rgba(255, 255, 255, 0.58)" />
</Rock:Image>

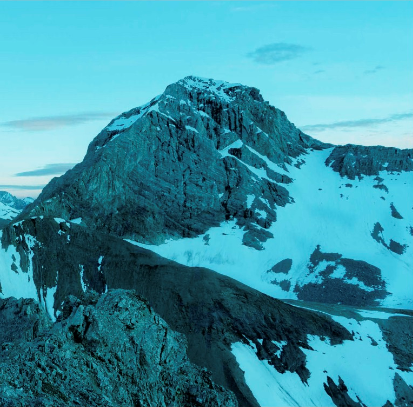

Tint

Tints the image using the provided color.

Property	Type	Description
Color	Color	Tint color applied to mid-tones of the image.

<Rock:Image Source="https://server.com/photo.jpg" >
    <Rock:TintTransformation Color="#41BFD0" />
</Rock:Image>

Keep in mind you can use more than one transformation on a single image.

Now are we done? Not quite, what's the rush?

Layering Images

Want to go to the next level with your images? Layer them!

<Grid>
    <!-- Bottom image -->
    <Rock:Image Source="https://server.com/photo.jpg"
        Aspect="Fill"
        HeightRequest="360"
        HorizontalOptions="FillAndExpand">
        <Rock:TintTransformation Color="#53AFBE" />
    </Rock:Image>

    <!-- Top mask -->
    <Rock:Image Source="resource://Rock.Mobile.Resources.Masks.vignette.png"
         Aspect="Fill"
         HeightRequest="360"
         HorizontalOptions="FillAndExpand">
         <Rock:FillColorTransformation Color="#53AFBE" />
     </Rock:Image>
</Grid>

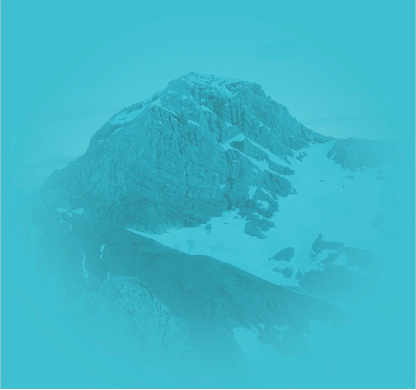

To make this, simply stack the original mountain under one of our built-in Masks. Note how the mask is just a PNG with an alpha channel. Notice how the mask is black. Applying a Fill Color transformation allows us to match the tint we added to the mountain photo producing a nice color vignette effect.

Styling

Ratio vs. HeightRequest

While HeightRequest can be used to size images, using Ratio is preferred.

<Rock:Image
    Source="https://server.com/photo.jpg"
    Ratio="4:2" />
