Communicating With Rock

Say what? How Rock helps you get heard.

Download PDF
Current Version: McKinley 16.0

Updates for McKinley 16.0

Below is a summary of the updates for this version.

  • Added guidance to help ensure compliance with spam regulations and policies, particularly with Gmail
  • In Communication History, organizations with multiple campuses can filter recipients by campus from the Recipient Details page
  • Interactions can now be written when an SMS Pipeline action runs.

Updates for McKinley 1.0

No updates made.

Updates for McKinley 2.0

No updates made.

Updates for McKinley 3.0

Below is a summary of the updates for this version.

  • Noted the change in location of 'Communication Templates' to it's new location under 'Login Status (top right of the page) > My Settings > Communication Templates'.

Updates for McKinley 4.0

Below is a summary of the updates for this version.

  • Updated information on communication approvals highlighting emails that will be sent for new communications waiting for approval.
  • Added tip on how to disable the view button on the bottom of the grid by removing view rights to the communications page.
  • Added a link to merge documents in the Admin Hero Guide.

Updates for McKinley 5.0

Below is a summary of the updates for this version.

  • Added information on enabling SMTP for Google Apps

Updates for McKinley 6.0

Below is a summary of the updates for this version.

  • Moved Managing Dynamic Content chapter to Designing and Building Websites manual.

Updates for McKinley 7.0

Below is a summary of the updates for this version.

  • Moved the Managing Dynamic Content chapter to the Designing and Building Websites manual.
  • Added note about Text to Workflow in SMS in Detail chapter.
  • Added Communication Wizard chapter.
  • Added Communication Lists chapter.
  • Added Communication Preferences chapter.
  • Moved Simple Email Editor section to own chapter.
  • Updated HTML Emails, Communication Templates, and History and Analytics chapters.
  • Added MMS Considerations section to SMS in Detail chapter.
  • Updated Communication Wizard screenshots and template documentation.
  • Updated Simple Email Editor chapter to link to Email Template Survival Guide.
  • Updated Long Code Throttling information in SMS in Detail chapter.
  • Updated communication list names and syncing information in Communication Lists chapter.
  • Updated Communication Lists screenshot in Communication Lists chapter.

Updates for McKinley 8.0

Below is a summary of the updates for this version.

  • Updated screenshots to v8.

Updates for McKinley 9.0

Below is a summary of the updates for this version.

  • Added SMS Pipeline
  • Added SMS Conversation Page

Updates for McKinley 10.0

Below is a summary of the updates for this version.

  • Added Save feature in Communication Wizard
  • Added Nameless Person features
  • Updated to include Group RSVP feature in Communication Wizard
  • Updated System Emails to System Communications
  • Updated Communication History and Analytics features

Updates for McKinley 11.0

Below is a summary of the updates for this version.

  • Added SendGrid Email Communication Transport
  • Added support for multiple SMS Pipelines

Updates for McKinley 12.0

Below is a summary of the updates for this version.

  • Added a Twilio Signature Validation option to the Twilio Communication Transport
  • SMS Conversations has a filter which allows you to search for conversations by person
  • The Communication Wizard has a new cleaner look and feel, with added enhancements
  • Added a new "Video" widget in the Communication Wizard to allow easy sharing of videos
  • Mass Push Notification lets you send push notifications to all active devices in your system

Updates for McKinley 13.0

Below is a summary of the updates for this version.

  • Added support for sending images from within SMS Conversations
  • SMS Phone Numbers can now have security applied to them
  • Notes can be created directly from SMS Conversations
  • New Communication Transport settings let you control how many concurrent communication recipients will be processed in parallel
  • SMS Pipeline actions have an Expire Date so they can be automatically deleted by the cleanup job if/when they expire

Updates for McKinley 14.0

Below is a summary of the updates for this version.

  • The SMS Pipeline has a new Give action, allowing for Text Giving functionality

Updates for McKinley 15.0

Below is a summary of the updates for this version.

  • The SMS Phone Numbers defined type has been replaced with a new System Phone Number model
Clearstream Advertisement

Welcome

In today's hectic world people expect their communications to be personal and professional. One channel isn't enough; organizations must meet people where they are. Sometimes that means pushing a message through email or text, other times it needs to be pulled from the web or social media. Rock gives you the tools you need to personalize your message through all these mediums and more. Let’s jump in and see how Rock can be that communications assistant you’ve always dreamed of.

Sending a Communication

Communications are ways of pushing out messages to your attendees. Today this can be in the form of emails or SMS text messages, but in the future communications could offer many more options.

Rock has two tools for sending communications: our Communication Wizard, which will make you feel like an email rock star, and the Simple Email Editor, which is best suited for sending simple emails, such as from a group toolbox. If you’re anxious to get started sending messages with the wizard, jump to the Communication Wizard chapter. If you’d like to learn about how communications work in Rock, read on.

But Wait, I Just Want to Send a Letter!

"These are great and all, but I need a good old-fashioned low-tech letter. Although I would like to use a fancy merge document and maybe a little Lava..." If this is you, you need to head over to the Rock Admin Hero Guide for more info on Lava and merge docs.

Under the Hood of Communications

Rock's Communication Engine

Like a car engine, Rock's communication tool has a number of different parts or components. Most of them can be found in the Communications screen (Admin Tools > Communications). We'll be talking about many of them in depth throughout this guide, but you can read an overview of all of the parts in the Communications chapter of the Admin Hero Guide.

Mediums and Transports

Like everything in Rock, the communications features are designed to be extensible for the future. That means the messages of tomorrow won't be limited by the messages of today. The communications engine is based on two types of components: mediums and transports. Let's look at how that works.

Mediums

Think of mediums as methods of communicating. Today Rock provides an email medium, an SMS medium and a push notification medium. Other mediums could easily be added in the future. These mediums can be written by either the core developers of Rock or by third-party developers. If you don’t like it, change it! Mediums can be configured under: Admin Tools > Communications > Communication Mediums.

Transports

Transports, on the other hand, can be thought of as the worker bees of the mediums. They do the actual work of getting the messages to their recipients. This is typically where you reach out to a third-party service like Mailgun (for email) or Twilio (for SMS messaging). Settings for the different transports are configured under Admin Tools > Communications > Communication Transports.

Some transports let you control how many recipients will be processed at the same time by adjusting the Concurrent Send Workers value. This lets you throttle your communications. High volumes of emails sent in a short period can be a red flag for spam activity. Also, large email bursts can potentially overload servers, possibly impacting Rock's performance.

A medium can only use one transport at a time. So, you can't have your email medium set up to use both Mailgun and SendGrid. Because the transport gets attached to the medium, you usually set up transports first.

Communications Send Job

Usually when you send a communication, it will be sent immediately to a communication queue that gets processed in almost real-time. There is, however, a Rock Job that runs every 30 minutes to look for communications with a pending status. You can view this under: Admin Tools > System Settings > Jobs Administration > Send Communications.

You don’t need to worry about this job, but we wanted to point it out, so you know more about how communications are sent.

Unsubscribing From Emails

It's very important that recipients of your emails have a way to unsubscribe from future emails, and that requests to unsubscribe are processed in a timely manner. Failure to do so can have legal implications, including fines of up to $51,744 for each individual email sent. Not to mention, your email reputation (a metric used by ISPs to help determine if your organization's email is spam) will suffer, resulting in a loss of deliverability.

To learn more about unsubscribing and what you can do to ensure you remain in compliance and stay off of spam lists, check the Unsubscribing section in the Configuring Email chapter below.

Bounced Mail

We know you have much to share, so let's make sure you have the opportunity to do that. You have to process bounced mail to keep your email addresses accurate and improve your email reputation.

Bounced messages are emails that are returned back to you after you send them because an email address is incorrect or no longer valid. Rock can automate this process if you use an email integration (i.e., Communication Transport) that supports the notification of these messages. Currently, the only core integration that supports bounced mail processing is Mailgun. You can read more on this integration in the Integrations chapter of this manual. Third-party provided solutions may be available for other services.

SMS Pipeline

In this chapter we’ll look at how Rock handles incoming SMS messages using Rock’s SMS Pipeline feature.

Rock’s SMS Pipeline is the entry point for all incoming SMS messages. Think of it as a switchboard operator that's directing each message to its intended action.

The Fundamentals

Below is an overview of how the SMS Pipeline feature works. If some of these concepts are foreign to you right now, don’t worry. We’ll go over all the details in the next section.

  1. An incoming SMS message is received into the pipeline.
  2. The message flows down the pipeline, through a series of Actions. Actions are activities that the system performs, like launching a workflow.
  3. Each action has filters. The pipeline uses filters to analyze the message and its contents against criteria you provide. If the message meets your criteria, then the action is performed. If not, the message moves to the next action. This process repeats until an action is performed.
  4. When an action is performed, the pipeline looks at the action’s Continue setting. This determines if the message should continue down the pipeline to the next action, or if the matched action is all that’s needed.
  5. If a message continues down the pipeline after an action has already been performed, it works the same way as described in #3 above. Satisfying the filter criteria for one action does not mean the message automatically satisfies the filters on the remaining actions.

These general steps are repeated for each new message you receive. That means you can use a single pipeline to perform different actions for a variety of scenarios.

Anatomy of Actions

Actions automate many of the tasks you would want to perform in Rock after receiving a text message. For instance, you might want to send the person an automated reply message. Or you might want to launch a workflow if the person’s message contains certain keywords.

Each action you add has its own settings and filters, giving you full control over what should happen and when.

There are four SMS Pipeline actions:

  • Give
  • Launch Workflow
  • Reply
  • SMS Conversations

We’ll use the Reply example pictured below to describe the properties of actions in general. Then in the following sections we’ll dive into each type of action individually. The below page can be accessed from Admin Tools > Communications > SMS Pipeline.

SMS Pipeline Actions
SMS Pipeline
1 Actions
These are the actions you can add to the pipeline. Click and drag the desired action into the center of the page to add it.
2 Name
This is the name of the action, which displays within the pipeline in the center of the page. The default name will be the type of action it is. If you have the same type of action in your pipeline more than once, you’ll want to change their names so you can easily tell them apart.
3 Active
The action will only be performed if it is active. You might want to disable actions that only apply during certain times of the year, so you don’t need to delete them when they’re no longer needed.
4 Continue
After an action is performed the process will check the Continue setting for that action. If Continue is enabled, the message will continue down the pipeline to the next action. When Continue is disabled, the process ends with that action and any remaining actions in the pipeline are ignored.
5 Expire Date
If you open the Advanced Settings, you'll see an Expire Date. The Rock Cleanup job will delete the action from the pipeline automatically after this date passes. If you have actions that are only temporary or only apply to a particular time period, this means you don't have to remember to update your pipeline when the action is no longer needed.
6 Log Interaction When Action Runs
Also located within the Advanced Settings, you can choose to have an interaction written when the person sends a text. This is a great way to find out when and how often each keyword is getting used. See the info icon for additional details.
7 Filters
Filters decide whether an action will be performed. If a message meets the action’s filter criteria, then the action is performed. If not, the process moves to the next action to evaluate that set of filters. If no filters are applied to an action, every message that reaches the action will cause the action to be performed.
8 Action-Specific Properties
This area will appear for actions where additional setup is needed. It will change depending on the type of action. We’ll cover these properties in the next section.

SMS Pipeline Webhooks

You might have noticed the Webhook URL at the top of the SMS Pipeline Detail page. This identifies the pipeline you’re viewing. You’ll use this URL to link your phone numbers to a specific pipeline. See below for details.

SMS Pipeline Actions

As noted in the prior section, all actions share some common properties. However, each type of action has unique features and properties that we’ll describe in detail below.

SMS Conversations

This action will send the message over to the SMS Conversations page, at which point you’re messaging with the person directly. There is only one filter for this action, and no additional unique properties.

Remember, the phone number filter references the number to which the person sent the message, not the person’s phone number. If this is left blank, then every message that reaches this action will go to the SMS Conversations page.

SMS Conversations
SMS Conversations

As pictured above, the SMS Conversations action is typically at the bottom of the pipeline. If the person’s message doesn’t meet the criteria for any of the other actions, this is how you can ensure it doesn’t fall through the cracks.

Reply

The Reply action is an easy way to automate responding to an incoming text. You can customize the content of your response and personalize it for the recipient using Lava. The reply action can in some cases eliminate the need for a workflow if a specific message is always to be returned.

Reply
Reply
1 Message Filter
You can check the content of the incoming text message against key words you provide. You can add as many of these conditions as needed. You can also select whether the message requires "any" or "all" of those criteria to match.
2 Response
This is the content of your organization's response, which will be sent if the incoming message meets the filter requirements. You can personalize the response using Lava.

The example pictured above will only perform the Connect Response action if the words "serve" or "volunteer" are somewhere in the message's text. If the incoming text says "I would like to serve" then the contents of the Response field will be sent to the person as a text message. In this particular example a workflow might also be launched for this message, because the Continue option is enabled.

Launch Workflow

As the name implies, this action will launch a workflow. You’ll want to configure your workflow to receive information from the pipeline, using the same workflow attribute merge fields we cover in the SMS Pipeline Workflows chapter of the Blasting Off with Workflows guide.

Launch Workflow Action
Launch Workflow Action
1 Workflow Type
You’ll use the drop down to choose your preconfigured workflow.
2 Pass Nameless Person
You can control whether Nameless person records (see Nameless People) should be passed to your Workflow.
3 Workflow Name Template
This Lava-enabled field is where you can create a string to use as the workflow name.
4 Workflow Attributes
This lets you pass information, like the person or their phone number, to the workflow you want to launch. See the SMS Pipeline Workflows chapter of the Blasting Off with Workflows guide for details on setting this up.

Give

This action enables Text Giving functionality, allowing a person to send a text to donate using their phone.

The Give action isn't ready to use out of the box. An administrator will need to configure the settings for the Utility Payment Entry block in addition to SMS Pipeline setup. For details on Text Giving and the required configuration, head over to the Rock Solid Finances manual.

Give Action
Give Action

SMS Pipeline In Action

Let’s look at a completed pipeline to see how this all comes together. This pipeline has four actions and was designed to handle inquiries about small groups and connecting. Below each screenshot we’ll highlight the key points.

Response
Response

As pictured above, when an incoming text contains the word 'group', an auto-response will be sent to the person with more information about joining a group. In this case the processing stops, because the Continue option is not enabled.

If the SMS message doesn't contain the word 'group' then the "Connect Response" action will be evaluated because it's the next in line. If the message contains the word 'volunteer' or 'serve' an auto response gets sent with more information about getting connected to a serving team. The arrow on the action indicates that the continue functionality is enabled, and the next action will run if the message meets the requirements.

Launch Workflow
Launch Workflow

You'll note in the screenshot above that the workflow action has the same filters as the "Connect Response" action. That means any message which activates the "Connect Response" action will also launch this workflow.

Lastly, the pipeline continues down to the “SMS Conversations” action so that a staff member can directly connect with this person.

In this case, the "SMS Conversations" action has no filters applied. Knowing this, and looking at the pipeline as whole, all incoming SMS messages will end up in the SMS Conversations page except messages that contain the word 'group'.

If we enabled Continue in the "Group Response" action, then every incoming SMS message would go to the SMS Conversations page. In that case, a message containing the word 'group' would not satisfy the "Connect Response" and "Launch Workflow" filter criteria, so those actions won’t be performed.

In this example pipeline, if an SMS message is received that says "I'd like to learn more about your services" it would pass through the pipeline straight to the "SMS Conversations" action. No automated replies would be sent, and no workflows would be launched for that message because it does not meet the criteria for those actions.

SMS Pipeline Lava

You can use Lava to customize and personalize your pipeline’s actions. There are different merge fields depending on whether you're working with the Reply or Launch Workflow action.

SMS Pipeline Response Lava
SMS Pipeline Response Lava

Launch Workflow Action Lava

Below is a list of Lava merge fields you can include in your pipeline when you're working with the Launch Workflow action. These are the same workflow attribute merge fields we cover in the SMS Pipeline Workflows chapter of the Blasting Off With Workflows guide.

SMS Pipeline Workflow Lava Merge Fields
Merge Field Description Field Type
{{ FromPerson.PrimaryAlias.Guid }} The pipeline uses the person's phone number to look up the first person with that phone number. If it finds a match, it assigns that individual's record to FromPerson. If the phone number is used in more than one profile, the pipeline defaults to the first record of an adult with children. Person
{{ FromPhone }} The person's phone number, pulled from the inbound message, from the SMS gateway. This will automatically get added to the workflow as FromPhone and will include the country code (i.e., the raw phone number 18645555555). Phone Number
{{ ToPhone }} The SMS gateway number where the message was sent. Phone Number
{{ ReceivedDate }} The date the message was received. Date
{{ ReceivedTime }} The time the message was received. Time
{{ ReceivedDateTime }} The date and time the message was received. Date Time
{{ MessageBody }} The content of the SMS message that was received. Text or Memo
{{ MatchedGroups }} If the RegEx expression provided contains matched groups, they are loaded into an array here. This is an advanced feature, so if you’re not sure what this means, don’t worry. You probably don’t need it. Typically, you fill in a text field with a merge expression of a single result from the MatchedGroups array.

Reply Action Lava

Below is a list of Lava merge fields you can use when you're working with the Reply action. Note that each uses a prefix of Message.

SMS Pipeline Reply Lava Merge Fields
Merge Field Description
{{ Message.FromNumber }} The person’s phone number from the inbound message
{{ Message.ToNumber }} The SMS number where the message was sent
{{ Message.FromPerson }} The pipeline uses the person's phone number to look up the first person with that phone number. If it finds a match, it assigns the value to FromPerson. If the phone number is used in more than one profile, the pipeline defaults to the first record of an adult with children. This is the full Person object, so, for instance, you'll need {{ Message.FromPerson.FullName }} to get the person's full name.
{{ Message.Message }} The content of the SMS message that was received

Adding New Pipelines

Technically a single pipeline is all you need in Rock. After a while though, you might find that your single pipeline becomes complex, especially if you have multiple numbers that you are supporting. In this case you can create additional pipelines. Please note though that a single SMS phone number can only work with a single pipeline, but a pipeline can service multiple SMS numbers.

To start, navigate to Admin Tools > Communications > SMS Pipeline. From here you can add, delete or edit your list of pipelines.

SMS Pipeline List
SMS Pipeline List

Click the button to add a new pipeline or click an existing pipeline to access its details. You can edit the 'Default' pipeline that ships with Rock, or you can create your own. In this example we’ll add a new pipeline from scratch so you can see the process.

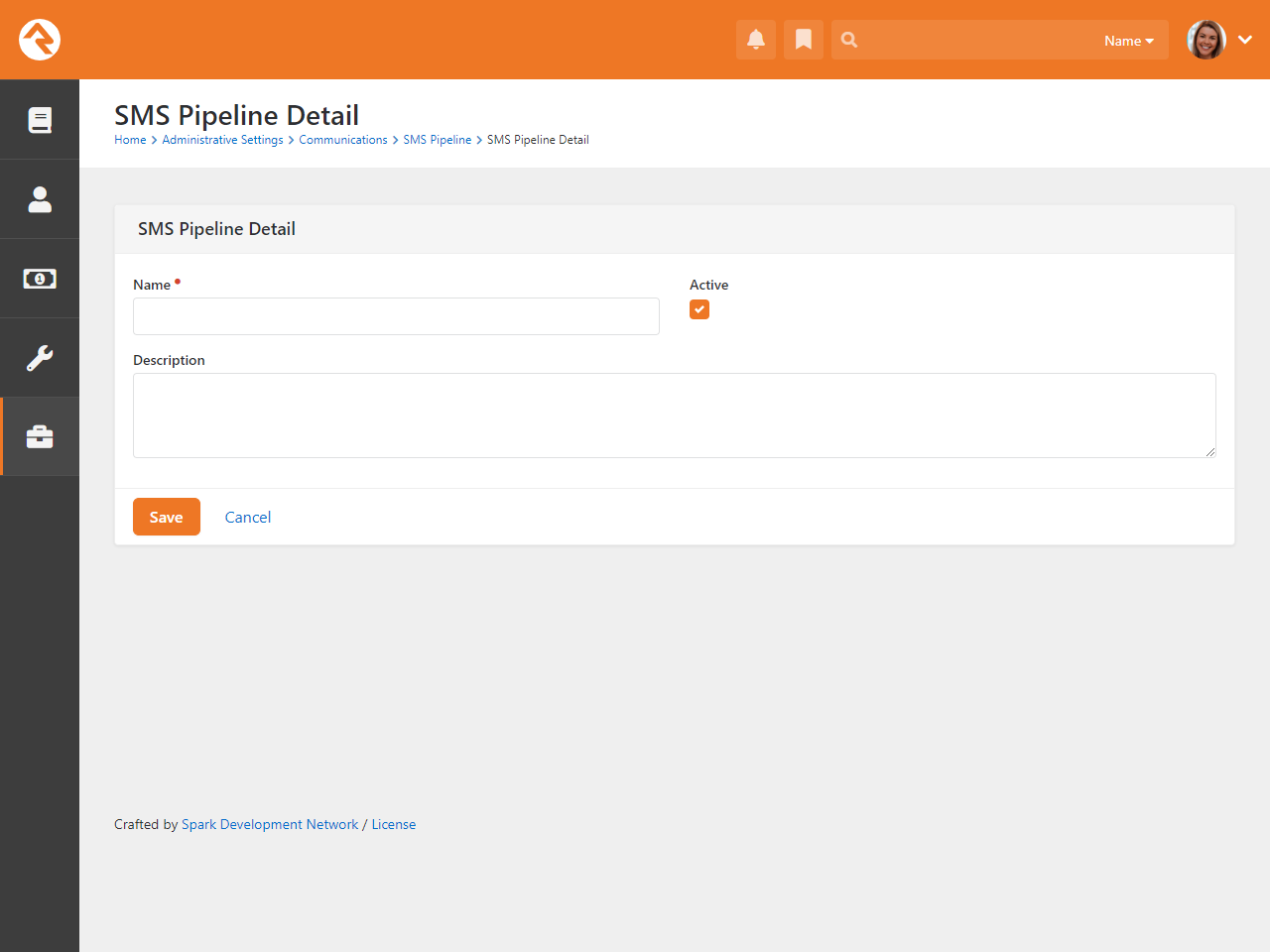

The first thing you’ll need to do is provide a name and description for the pipeline. If you have multiple pipelines, be sure to make the name and description clear.

Add New Pipeline
Add New Pipeline

Click the Save button, and that's all you need to start configuring your new pipeline using the instructions in the above sections. Remember, each pipeline can be associated with its own webhook (see below) for added flexibility.

From One to Many

If you started using SMS Pipeline before Rock v11, you don't need to change anything. The webhook you have in place will continue to work. However, don't forget that a webhook will stop working if the associated pipeline is deleted.

SMS in Detail

Before you can start using the SMS features Rock has to offer, you need to set up a phone number. This chapter provides the information you’ll need to get started.

Boosting Engagement with SMS

In the modern era, SMS messaging has become the predominant means of communication, surpassing phone calls and emails in popularity. SMS messages are typically read promptly and are more likely to elicit swift responses. However, it is not permissible for any organization to send an SMS message to an individual unless the recipient has explicitly given their consent by opting in. As a result, Rock has incorporated an SMS Opt-in Checkbox in most areas where mobile phone numbers can be entered.

Furthermore, we recognize that every organization is unique and may have distinct legal requirements. Therefore, the verbiage for the SMS Opt-in checkbox can be completely customized to meet your specific needs. You can customize the SMS Opt-in message at Admin Tools > System Settings > System Configuration under the UI Settings Tab.

Add SMS Phone Number

You need to have a phone number before you can start sending and receiving texts. We recommend Twilio, and have a whole section for setting up Twilio in a later chapter. Even if you don’t have a phone number set up yet, it’s important to be familiar with the System Phone Number settings because they are referenced later in this chapter.

These settings can be accessed and maintained from Admin Tools > Communications > System Phone Numbers.

System Phone Number
System Phone Number
1 Basic Settings
Here you can give the number a name, make it active or inactive, and you can choose a description. A good description can be very helpful if you have multiple phone numbers. Only Active phone numbers can receive responses. You might use a phone number for a large event and then inactivate it until the next event
2 Phone Number
Be sure that the phone number is in the Phone Number field and that it is in the format of "+15555555555" (or similar for international numbers).
3 Assigned to Person
The person you select here will receive the incoming messages sent to the SMS Phone Number you’re viewing. This only happens if SMS Forwarding is enabled. Be sure the individual you select has a valid SMS phone number on their record.
4 SMS Enabled
This simply indicates whether the number can be used in SMS contexts within Rock.
5 SMS Forwarding
If enabled, then incoming messages to this SMS Phone Number will be sent to the Assigned to Person and to the SMS Pipeline. If this is not enabled, then the conversation will still go to the SMS Pipeline or SMS Conversations, but it will not be sent to the Assigned to Person.
6 SMS Received Workflow
You have the option of automatically launching a workflow when a response is received. Use this field to indicate which workflow should launch. Don’t forget, you can use the same phone number to launch different types of workflows using the SMS Pipeline.
7 SMS Notification Group
The members of this group will be notified when a message is received to this number.
8 Mobile Application
Using this requires that you have Mobile configured correctly. This determines which mobile application to use when sending notifications.

In addition to the Assigned to Person settings described above, you can apply security to each System Phone Number individually. Simply click the icon when viewing the Phone Number to apply security for that number. Please note that the security does not transfer over to SMS Conversations, Communication Wizard and Simple Communication blocks.

You may also want to review the block settings for SMS Conversations to further refine how your numbers are used and who can see them.

SMS Number Strategies

Now that you've seen how SMS replies are handled in Rock, let's touch briefly on strategies to implement this effectively in your organization.

SMS services like Twilio make it very inexpensive to rent phone numbers for SMS. (A number from Twilio runs only $1 per month.) Don't limit your organization to a single number if you need more than one. Think about getting a number for each department and/or heavy SMS user. It's also very easy to turn an SMS number on and off. You might grab a number for a large event and remove it after the event is over. You can also reuse a number internally by changing the Response Recipient as described above.

MMS Considerations

Standard MMS (aka, Multimedia Messaging Service) messages allow you to send images, slideshows, videos and audio clips as attachments. While this means you can do some creative things with your communications, there are some limitations to keep in mind.

The biggest limitation is that the recipient's phone may not support all multimedia files. So, while you may be able to send a short video, not all of your recipients may be able to view it.

Another thing to keep in mind is that some mobile carriers limit the file size of attachments being sent over their network. For example, Twilio limits messages that combine text and images to 5MB. If you try to send, say, an MMS message combining text and video, and the total size is greater than 5MB, Twilio will prevent the message from sending. Before sending out a large number of messages, it's a good idea to test your communications on various handsets using different file formats and sizes. See what works and what doesn't.

Twilio, Short Codes and MMS Messages

If you're using a Twilio short code, keep in mind that it doesn't automatically support MMS messages. You can add MMS capabilities for a one-time fee of $500. This is different than regular "long codes" (phone numbers) where MMS is usually automatically supported.

If you're not sure whether your account supports MMS messaging, check your Twilio Console. If you only see "Capabilities: SMS" and MMS is not listed, then it's likely you haven't purchased MMS for your short code.

See the setting up Twilio section for more information on configuring Twilio as your SMS provider.

Long Code Throttling

It's still a bit like the Wild West out there when it comes to SMS and MMS. Each carrier has its own rules and practices. For many carriers, sending or receiving too many messages too quickly will set off spam warnings, which results in messages either not being sent or not being received. This can be a real problem when you need to send information to a lot of people at once.

Fear not. We've got you covered. Out of the box, Rock comes configured with Long Code Throttling. This slows the delivery of non-short code numbers. By default, it is set to 500 milliseconds, or half of a second, which is the rate we've found works best for both speed and reliable delivery. You can modify the rate, though, by changing your Twilio transport settings (Admin Tools > Communications > Communication Transports). You can also disable Long Code Throttling altogether. Keep in mind, though, that this may result in your messages not being delivered.

Configuring Twilio for SMS Pipeline

In the past, each SMS feature included its own webhook. The SMS Pipeline condenses those features into one place, so you only have to use one webhook. That means you can use a single phone number for a variety of different purposes.

To set your number up for the SMS pipeline in Twilio, set the A Message Comes In URL to:
https://YourServer/Webhooks/TwilioSMS.ashx?SmsPipelineId=YourPipelineId

If you need multiple SMS Pipelines, you can link each one to your phone numbers by specifying the pipeline’s ID in the URL.

See the Integrations chapter for more information on setting up Twilio in general.

SMS Conversations

In the prior chapter we explain why many of your incoming SMS messages will end up getting passed from the SMS Pipeline into SMS Conversations. Now, let’s take a step back and see how to manage those messages, or messages that are sent to SMS Conversations directly. Navigate to People > Communications > SMS Conversations to start.

SMS Conversations Page
SMS Conversation Page
1 New Conversation
This will open up a new conversation window to start a conversation with a selected individual. You can send the SMS message directly from Rock, and even include an image.
2 Recipient Filter
Use this filter to search for specific recipients. This is a fast alternative to scrolling through a lengthy list of people to find the conversation you're looking for.
3 Available SMS numbers
You can change between currently active SMS numbers by clicking the drop-down here. Changing the number will show you conversations associated with that number. If only one number is available, then the dropdown is replaced with a label.
4 Show/Hide
You can choose to show or hide messages that have already been read.
5 All Responses
This panel displays all the responses to the selected SMS number. Clicking on any of the listed responses will show you the conversation with that person.
6 Message
All you need to do is type your message here and hit Send to keep the conversation going. Your outgoing messages and responses will be shown in the screen above.
7 Add Note
The conversation you're having with the person can hold important information. By adding a note directly from SMS Conversations, you can track details about the conversation in a more visible and accessible way. The block's settings let you limit the Note Types that can be used.
8 Send Image
Click the icon to upload and send an image to the person.

We realize that every organization is different, so we add in settings to allow you to customize each feature for your needs. Suppose you have the Students Director and First Impressions Director using communications for scheduling different events with their volunteers. This could be done with the out of the box SMS Conversations page, or you can customize this so the two can only see their own SMS number on different pages.

Create Multiple SMS Pages

You can create multiple pages with the SMS Conversations block on them. Then on each page you can specify who has access and which number(s) can be used. Each ministry could have their own SMS Conversations page, for example. To learn more about creating pages and adding blocks check out the Designing and Building Websites using Rock guide.

Nameless People

Sooner or later, you’ll start receiving SMS messages from people and phone numbers you don’t recognize. If you’re worried that this will cause a snag in your processes, don’t be.

Rock will try to match the phone number of a new incoming SMS message to a person in the system. If it can’t find anyone with that number, Rock will create a Nameless Person record instead. This allows your processes to continue as normal, without knowing their name or other contact information. In most cases this will result in the message being passed from the SMS Pipeline to the SMS Conversations page. Other possible actions are limited because we don’t know who the person is.

Nameless People in SMS Conversations
Nameless People in SMS Conversations
1 Phone Number
Typically, a name is shown here. Since Rock doesn’t know the person’s name, you’ll see the phone number instead.
2 Unknown Person
This indicates the conversation is with an unknown (i.e., nameless) person.
3 Link To Person
Click this button to link the phone number to a new or existing person record. We’ll cover that in detail below.

As new texts come in, you might lose track of your nameless people in the SMS Conversations page. Luckily, you can go to Admin Tools > Communications > Nameless People to see and manage your list of nameless records.

Nameless People Page
Nameless People Page
1 Phone Number
All of the phone numbers Rock can't link to a person record are listed here.
2 Link To Person
Click the button to link the phone number to a new or existing person record (see below).

Where Did My Nameless Person Go?

Each night, the RockCleanup job will go through the Nameless record types to look for a matching person record. If it finds a match it will merge them for you and the Nameless record will be removed.

Linking to an Existing Person

Once you know for sure who you’re talking to, you'll want to link the phone number (and the conversation) to an actual person in Rock. You'll do this from the Link Phone Number to Person page. You can get there from the SMS Conversations page or from the Nameless People page as described above.

Link Phone Number to Person
Link Phone To Person
1 Add New Person
As pictured above, this page lets you quickly and easily create a new person record to be linked with the phone number.
2 Link Existing Person
Clicking this button will give you a person picker screen so you can look up the existing record to be linked with the phone number.

Respond from a Device

When you send an SMS message (see the Communication Wizard chapter) you'll select an SMS number to send from. When Response Recipient Forwarding is enabled as described earlier, responses will be forwarded to the response recipient's mobile phone with the sender's name and a response code.

The response code consists of the @ symbol followed by a three-digit number (e.g., @347). If further follow-up is required, the response recipient can use this code to reply back.

If your mind is swimming a bit, that’s OK. Let's look at an example. In our example Jenny has just sent out a bulk SMS message to several attendees reminding them of the car show that afternoon. Let's walk through a conversation she has with Alisha.

SMS Example
SMS Example
1 Bulk Message
The original bulk SMS message. Notice Jenny has cleverly used merge fields to personalize the text message with each recipient's name.
2 First Response
Alisha then responds to the message.
3 Response Code
The response goes back to Rock's SMS phone number. Rock then looks up that number's response recipient and relays the message to Jenny's phone. Because the message is no longer directly from Alisha, Rock adds Alisha's name to the message and also the response code @671.
4 Sent to Alisha
Jenny decides she would like to continue the conversation, so she writes a quick message back including the response code. Rock will use this code to match the conversation back to Alisha.
5 Shows Message
Alisha receives Jenny's response. Note how Rock has removed the response code. To Alisha it appears that she is texting Jenny directly.

Notice that both sides of the conversation are texting to Rock's SMS number (555) 351-5392. Little does Alisha know that Jenny's real number is 867-5309.

Configuring Email

When it comes to email configuration, much of the heavy lifting will be done outside of Rock. We have information in the Integrations chapter to help you with some of those processes. In this chapter, we’ll cover the basic Rock settings you’ll need to get email up and running. There are two main configuration areas, called Communication Transports and Communication Mediums.

Communication Transports

Communication Transports (Admin Tools > Communications > Communication Transports) are where you provide the necessary details for Rock to connect with your email service provider. These details are typically provided by your service. Check out the Integrations chapter for assistance with this setup.

Communication Transports
Communication Transports

SMTP Relaying May Bite You

For development and testing you might decide to use SMTP as your transport. If you do, be sure that the server/service you use is configured to allow the Rock server to relay. If you're using Google Apps, see the tips in the Integrations section below.

Communication Mediums

Communication Mediums (Admin Tools > Communications > Communication Mediums) represent the available communication methods in Rock, including email.

Communication Medium Email Settings
Communication Medium Email Settings
1 Active
Ensure this option is selected to enable email communication from Rock.
2 Transport Container
Choose the email service provider you've configured in Communication Transports. This setting helps Rock know which service to use for sending emails.
3 Unsubscribe HTML
Customize the appearance and destination of the unsubscribe link in Rock emails. This link, at the bottom-right of the email by default, allows recipients to opt out of future communications.

If you’re using Mailgun, be sure to check that your Tracking Settings in Mailgun are turned off, to avoid having two Unsubscribe options at the bottom of your emails.
4 Non-HTML Content
Provide an alternate message for recipients who are unable to view HTML emails. The recipient will see a generic message with a link to view the rich text email on your website. This ensures that all recipients can access the email content, regardless of their email client's capabilities.
5 CSS Inlining Enabled
Keep this option set to "Yes" for better email styling compatibility. Inline CSS styles enhance the visual presentation of emails across different email clients.
6 Bulk Email Threshold
Set a threshold to automatically designate emails as bulk when sent to more recipients than the threshold allows. The option to choose if an email is bulk or not will be removed when creating the communication. This helps manage email reputation and compliance with anti-spam regulations.
7 Request Unsubscribe Email
Specify the email address for unsubscribe requests. If left blank, the Organization Email in Global Attributes will be used. Because Rock always includes an API for processing unsubscribe requests (with Enable One-Click Unsubscribe enabled) the email option will probably never be used. However, it is required by email clients like Gmail. In the future, some email clients may choose to use this.
8 Enable One-Click Unsubscribe
Offer a convenient one-click unsubscribe option with a link at the top of the email. This enhances email credibility and complies with anti-spam regulations. It defaults to “Yes” which is the recommended setting.
9 Unsubscribe URL
Alternatively, provide a URL for unsubscribing. Clicking the unsubscribe link will redirect recipients to this page. This URL is only used if the Enable One-Click Unsubscribe option is turned off (which we don’t recommend).

For more information on the “unsubscribe” settings, see the Unsubscribing section below.

Safe Sender Domains

Many email service providers have implemented new restrictive policies on emails that are sent from a person's account (e.g., Yahoo.com) but did not originate from their email server. Because Rock sends email on behalf of others these emails can bounce in these situations. To prevent this, if an email communication is created with a From Address that is not in the Safe Sender Domains defined type, the Organization Email global attribute value will be used instead for the From Address and the original value will be used as the Reply To address.

You'll want to add all of your organization's email domains to the Safe Sender Domains defined type under:

Admin Tools > Communications > Safe Sender Domains

Adding Domains

Be sure that only your organization's domains are added to the Safe Sender Domains list. Adding gmail.com, yahoo.com, or any other domain you don’t control or have SPF records for will result in your email being dropped because you'd be forging 'From' addresses.

Broken Images

If you’re finding that some of your images aren’t appearing in your email, be sure your Public Application Root setting is configured with the proper URL. This can be modified under:

Admin Tools > General Settings > Global Attributes > Public Application Root

Broken Email Image
Broken Email Image
1 Broken Image
An email containing an image that can’t be found due to a misconfigured Public Application Root may look like this.

Your Public Application Root will be formatted like https://www.organization.com/ or https://rock.organization.com/ or similar, depending on your web address. Note that the forward-slash at the end is required.

Unsubscribing

Configuring email in Rock involves more than just sending messages; it's about safeguarding your communication channels and maintaining a positive sender reputation. Why? Because when your emails get marked as spam, it can harm your reputation and impact whether your messages reach their intended recipients. Not to mention the possible legal consequences.

Consider this: even if someone signed up for your emails, they might still report them as spam if they can't easily find the unsubscribe option. Or worse, they might start to unsubscribe but then resort to marking your emails as spam if the process isn't straightforward. That's why it's crucial to make unsubscribing as effortless as possible.

This is especially true for Gmail accounts. Gmail specifies that everyone must “make it easy for recipients to unsubscribe” and “if you send more than 5,000 messages per day, your marketing and subscribed messages must support one-click unsubscribe.” Gmail also indicates that if your unsubscribe method involves sending an email, the request to unsubscribe must be processed within two days. Why all the focus on Gmail? Well, with over 1.5 billion active accounts, it’s probably used by many in your target audience, so we want to ensure we're sticking to their guidelines.

Learn More

To read more about Gmail’s spam requirements, with links to additional resources, check out our blog post on the topic.

We also look to Gmail's rules because they will help cover you from a legal perspective. Gmail policies are more stringent than the US CAN-SPAM Act, which also has requirements related to unsubscribing. Adherence to the CAN-SPAM Act is crucial. Otherwise you expose your organization to potential legal action and hefty fines from the FTC.

Now, let's talk about how Rock can help you comply with these requirements. We've designed features to streamline the unsubscribing process. For more details on these settings, see the Communication Mediums section above.

Email Unsubscribe Settings
Email Unsubscribe Settings
1 Bulk Email Threshold
Automatically categorizes emails as bulk if the recipient list exceeds this threshold, ensuring unsubscribe links. This hides the bulk option for new communications.
2 Request Unsubscribe Email
Generates an email for unsubscribing, which must be processed within two days. If Enable One-Click Unsubscribe is set to “Yes” (which we recommend) this email address should never be used.
3 Enable One-Click Unsubscribe
Our recommended default setting of “Yes” is in line with Gmail's requirements.
4 Unsubscribe URL
Provides an alternative to one-click unsubscribing, directing recipients to a specified URL.

Not Gmail-Compliant

If Enable One-Click Unsubscribe is set to “No” and if the Unsubscribe URL is blank, nothing will be added to the header of the email.

With the above configuration in place, your emails will generally have two “Unsubscribe” options as pictured below.

Unsubscribe Links in Email
Unsubscribe Links in Email
1 Header Unsubscribe
Supports one-click unsubscribe functionality, though it’s not universally supported by all email clients.
2 Footer Unsubscribe
The older method of directing recipients to the Rock Unsubscribe page on the external site.

When someone is taken to the Unsubscribe page on the external site, they’ll see the page pictured below. Upon arriving at the page, they will automatically be unsubscribed without having to do anything. However, they can proceed to set other email preferences.

Unsubscribe (Email Preference) Page
Unsubscribe (Email Preference) Page
1 No Mass Emails
This will mark the individual’s “Email Preference” to “No Mass Emails” on their profile.
2 Receive All Emails
The person’s profile will be updated to have an “Email Preference” of “Email Allowed.”
3 Update Email Address
The person will be presented with a field for entering their new email address, and their “Email Preference” will be set to “Email Allowed.”
4 No Emails
The person’s “Email Preference” will be set to “Do Not Email.”
5 No Longer Involved
The person’s “Record Status” on their profile will be set to “Inactive.” This ensures that they will not receive future emails.

If the person didn’t unsubscribe from a communication list, their Person Profile email settings in Rock will be updated to “No Mass Emails.” If it’s already set to “No Mass Emails” then it will be updated to “Do Not Email.”

Changes to a person’s Email Preferences are logged in the Person History area under the History tab in the Person Profile.

Communication Lists

The Communication Wizard utilizes communication lists to send messages. Communication lists are kind of like the contact lists or groups you can set up in your own email and messaging apps. Rock's communication lists are simply groups of a specific type. For example, you could create a communication list of all small group members, or everyone registered for summer camp, or anyone serving as an usher. If you can create a group of it, you can create a communication list from it. Using groups as the basis for lists allows you to quickly identify and select recipients from the different areas of your organization.

Communication lists can be found in the Communication Lists screen, located at:
Admin Tools > Communications > Communication Lists.
Click the name of a list to view its members or modify its settings.

Communication Lists
Communication Lists

Rock ships with the following four lists:

  • Members and Attendees
  • Parents of Children
  • Parents of Youth
  • Sports Ministry

These lists are just samples to get your juices flowing and so you can see how lists should be configured. You can use them for your organization if you want, but you'll need to wire them up to sync with your data views. Because these lists are groups, you can add people to them manually...or you can use Rock's group sync features to keep them automatically updated. To learn more, see the Group Sync chapter in the Rock Your Groups guide.

You can also create your own communication lists. In the Communication Lists screen, click the button to create a new list.

Communication List Detail
Communication List Add New

As you can see, the Communication List Detail screen offers a lot of options and flexibility for creating your communication list. To make your new list available to members viewing the Communication List Subscribe block on your external site, be sure to click the Public checkbox. (To learn more about that block, see the Communication Preferences section below.)

Next let's look at how to associate the list with categories and data views.

Communication List Categories

You can create categories to further identify and filter your communication lists. The Communication List Categories page is located at Admin Tools > Communications > Communication List Categories.

Communication List Detail
Communication List Categories

Rock ships with one category, called "Public", but you can create as many categories as you want. For example, you could create a category called "Staff Only" to use when creating communication subscription blocks you want only to be available to staff members. Categories can have child categories as well. You can use communication list categories in a number of ways: for paring down the recipients in your communication lists, in creating subscribe/unsubscribe blocks in your organization's website, for creating data views to use when filtering communication lists... The more you use them, the more you're going to see how extensive they are. We'll be talking about communication list categories a little later in the Communication Preferences chapter.

Keep in mind that the category's security will be used to decide if the individual can see the communication lists associated with that category. This means an administrator can set up a new category (e.g., Staff) and then add security to that category such that people with access to view that category will be able to see any communication lists that are tied to that category. Don't forget, the admin would have to configure the Communication List Subscribe block's settings with the new category.

Segments

Segments provide a way to select and filter your lists based on any field in the system. You can use data views to further pare down, or segment, who you’re communicating with in a particular list. They can be global to all lists or unique to a specific list. When using the Communication Wizard, after selecting a communication list, you can add any segments you want to use to filter that list. For example, if you only want the communication to be sent to members who are age 35 or older, you’d select the segments “Members” and “35 and older”. (More on that in the next section.)

It's important that you think through your list strategy. A smart use of segments can cut down on the number of lists you will need.

Data views can be created, modified and deleted in the Communications Segments category of the Data Views screen, located at Tools > Data Views. For more information about data views, see the Filtering Using Data Views section of the Taking Off with Reporting manual.

OK, now for the fun part. Let’s look at how to actually use the Communication Wizard.

Communication Wizard

Rock's Communication Wizard works like other wizard models, with buttons that move you forward and backward through a series of screens. Let's walk through how to use the wizard to send a communication.

Sending a Communication Using the Communication Wizard

To begin a new communication, go to People > New Communication. The first screen you'll see, pictured below, is where you'll pick who you want to send the communication to. This can be done by using a Communication List or by adding individuals manually. There are other ways too, like if you arrived at this screen from a grid.

List Selection
List Selection
1 Use Simple Editor
Click this button to launch the Simple Editor.
2 Full Screen Toggle
This button will change the view of the page into a full screen. The same button is used to return the screen back to its original state.
3 Manual List
If you want to select individual recipients manually, you can do that here. This lets you create a list of people without using a configured Communication List. If there are more than 1,000 recipients you'll only see a summary of those who may not receive the communication because, for instance, they don't have an email address or SMS phone number.
4 Communication List
After a Communication List has been created, you can select it here. Depending on the other settings you choose on this page, this will be the list of people who receive the communication.
5 Segments
The Segments feature lets you filter people in the Communication List according to your selections. For instance, you could apply the '35 and older' segment to only communicate with people from the 'Members and Attendees' list who are 35 and older.
6 Recipients Must Meet
If you’ve chosen more than one Segment then this lets you decide if the people who receive the communication should meet all of the segment requirements, or any one of them.
7 Prevent Duplicates
This setting is only visible if enabled in the block's settings. People within a family will often share an email address or SMS phone number. Selecting this option will cause only one communication to be sent per email address or phone number. For instance, if spouses share an email address, then only one of them will receive the communication, personalized to that person.

Click Next to advance to the Communication Details screen.

Wait! I want to go back!

If at any point you want to return to a previous screen, click the Previous button.

Communication Details
Communication Details
1 Communication Name
This is the name of the communication you’re sending. This is for internal use only, to help you identify which communications were sent as you look through your history of communications. The name you provide here will not be included in the communication you send.
2 Bulk
Here you choose if it's a bulk (group) communication. When you enable this option, Rock includes a link for the recipient to unsubscribe. You can change the default for this option in the block settings, but we recommend leaving it on. Note, this will be hidden and automatically enabled if the recipient count exceeds the threshold set on the Communication Mediums page. See the Configuring Email chapter for more information.
3 Communication Medium
The options you see here may vary depending on your Rock configuration/data. In this case we can choose to send an email, an SMS text message or a push notification. Or we can send it using different mediums based on each recipient’s communication preference.
4 Schedule Send
By default, the communication will be sent immediately after it has been created (and approved, if applicable). However, you can click here to specify a date and time on which the communication should be sent.

Click Next to advance to the Communication Template screen. This is where you’ll select the email template you want to use to create your communication. You can imagine how, after you’ve created a number of templates, having a Template Image Preview (i.e., thumbnail) will help you easily locate the template you want.

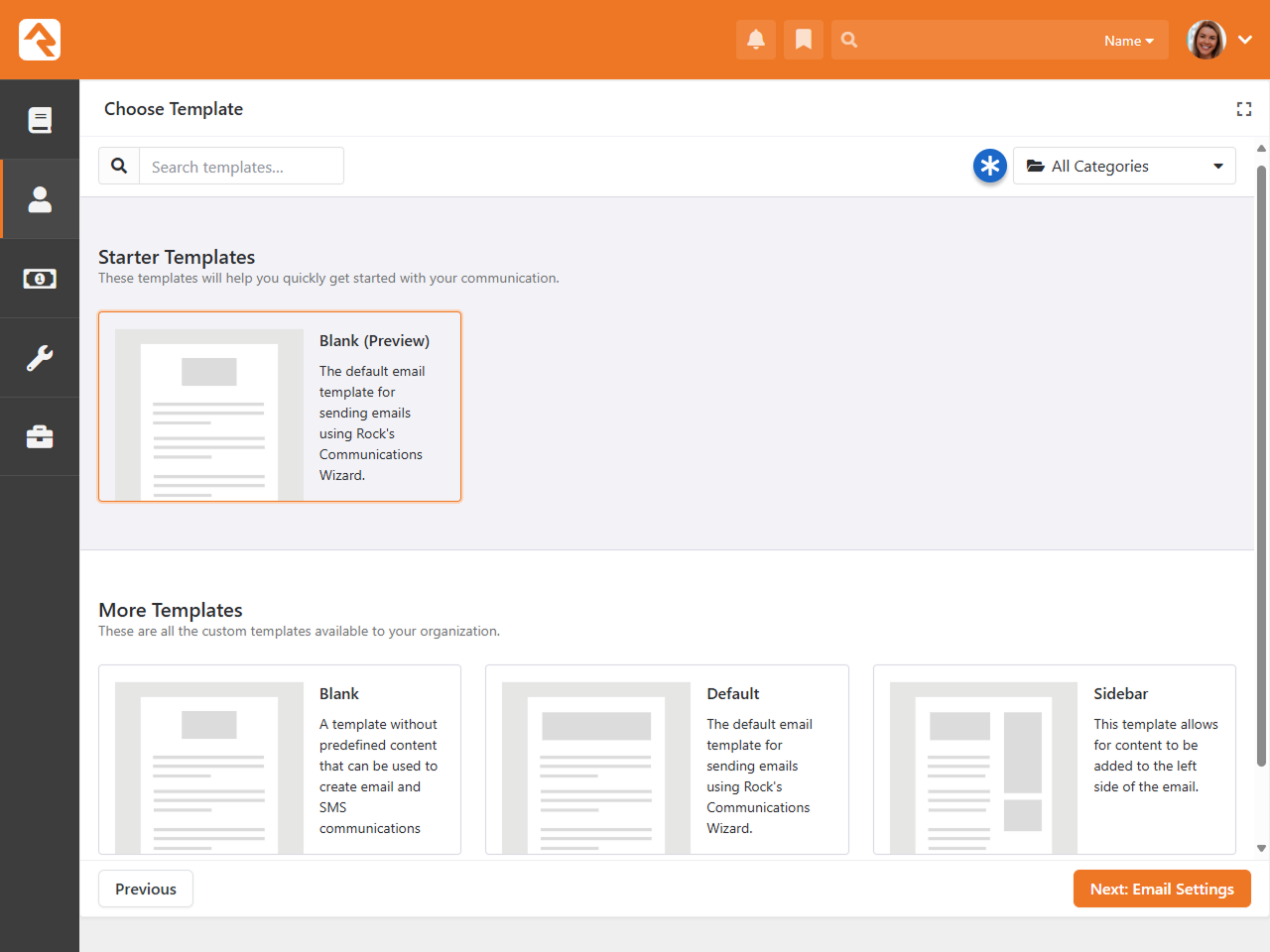

Communication Template
Communication Template
1 Category Filter
You can also use the Category Filter dropdown to help you locate your template. If you don’t see a template listed, you may not have permission to use it, or it might not be set up for use with the wizard. You can learn more about template security and support in the Email Template Survival Guide.
2 Template Selection
Rock ships with these three templates out of the box, but this list will expand as you create your own. Remember, the template is a starting point for how your email will look, but you’ll be able to customize many aspects of it in the following screens. Keep this in mind before creating new templates.

After selecting your template, click Next to advance to the Email Summary screen. The Email Summary screen is where you specify the sender, the subject and any files you want to attach to the message.

Email Summary
Email Summary
1 From Name
This will be the name that appears as the person, ministry, etc. who sent the email.
2 From Address
The email address you provide here will be seen by the recipient as the email address from which the email was sent.
3 Show Additional Fields
Click this link to specify a separate 'Reply to' email address, and to add email addresses to 'CC' and 'BCC' lists. These fields are optional and can be left blank.
4 Email Subject
The subject line of your email is added here. You can use Lava to personalize the email subject.
5 Email Preview
You can provide a concise summary that appears alongside your subject line in recipients' inboxes. This quick peek can entice them to open and read your message.
6 Attachments
You can use this to upload files that will be sent with the email as an attachment.

CC, BCC and Personalization

If you use the CC or BCC fields, be aware that each communication is personalized for each recipient, so each email is unique. That means your CC/BCC recipients will receive many messages.

Click Next to advance to the Email Editor. If your communication will be sent by SMS or Push only, then the wizard will skip this screen.

Email Editor
Email Editor

Here’s where things get really fun. The Email Editor is a drag-and-drop visual email composer. This is where you configure the layout, images, text, buttons, etc., of your communication.

To add an element, simply drag it from the buttons bar to where you want it to be in your message. Notice that when you drag an element over a section, a transparent image of the element helps to show where you’re placing it.

After placing an element, you can edit it by clicking on the section it's in. The options associated with that element are displayed on the right side of the screen. Notice that the section you’re editing is highlighted with a green border, and you can view your changes in real time. When you’re done editing the section, click Complete. If you decide you don’t want that element after all, click Delete.

At any point while working in the Email Editor, you can send a test email to yourself by clicking the Send Test button. Click Preview to see both desktop and mobile previews of your design. Click Save to save a draft of your email.

We should pause a moment here to note the RSVP button, indicated by the icon. This element is used to send RSVP requests to groups, and it requires some setup in advance. For full details check out the Group RSVP section of the Rock Your Groups guide.

Adding Videos to Email

Because of how different email clients work, we can't reliably embed a video within an email. Using the Video feature will let you provide a link to a video, with an associated image, but the video can't play from inside the email itself. As of this update, Rock will automatically apply a thumbnail image if the video is from YouTube or Vimeo.


When everything is set up and looks the way you want, click Next to go to the Mobile Text Editor screen. If your communication will be sent by email only, the wizard will skip this screen. The Mobile Text Editor is similar to the Email Editor. This is where you design how your SMS message will appear.

Mobile Text Editor
Mobile Text Editor
1 From
Select the SMS phone number from which the text message will be sent. Unless specified in the block’s settings, this list will contain all active SMS phone numbers you have configured.
2 Add Merge Field
Personalization has never been easier. Use the list here to populate your message with the Lava you’ll need to truly customize and personalize content for each recipient.
3 Message Body
This area is where you’ll compose the actual content of your message, including any Lava you might be using for personalization.
4 Attachment
You can use this to upload files that will be sent with the message as an attachment.
5 Send Test / Save
You can also send a test text to yourself by clicking the Send Test button. Click the Save button to save a draft of your text.
6 Live Preview
As you make changes to your Message Body you can see in real time how the message will appear when it’s received.

If you're sending the communication via a Push Notification, then you'll see the Push Notification Editor screen instead of the Email and SMS screens described above.

Push Notification
Push Notification
1 Title
This will be the title of the push notification and will be seen by the person receiving it.
2 Add Merge Field
Just like the Mobile Text Editor page, you can easily personalize the content of the notification by adding Lava merge fields from this drop-down.
3 Notification Content
This is the main content that the person will see. Merge fields will appear here when added, to customize and personalize the content.
4 Open Action
When Link to Mobile Page is selected then you can set which page the person will be taken to, including any query string parameters you might add. If Show Details is selected, you'll be prompted to select a Mobile Application and add additional details in the editor provided. If your app has a push notification detail page defined in it, that page will be opened with the details for the communication. These two features require Rock Mobile and require that Rock Mobile is configured correctly to receive these details.

With the last of the communication methods configured, click Next to go to the Confirmation screen. This is the last stage in the process before we actually send the communication.

Confirmation
Confirmation
1 Communication Details
The information along the left applies to the communication in general. This lets you ensure you’ve selected the correct options in the prior screens.
2 Communication Method Previews
In the example pictured above, the communication may be sent in two different ways. You can click each button to see a preview of the communication in each of the formats we talked about above.
3 Communication Preview
This area will show you what the communication recipient will see. In the example pictured above we also see the number from which the SMS message will be sent, because that is specific to the SMS version of the communication.
4 Save as Draft
Not quite ready yet? That’s okay, you can save this as a draft and come back later. Your communication drafts can be found in the Communication History screen.
5 Send
This is the Moment of Truth. Are you ready to send the communication? If so, click Send.

After clicking Send, the communication is sent to the communication queue.

Communication Queue
Wizard Complete

To immediately view the communication’s analytics, click the View Communication link. See the Viewing Analytics section to learn more.

To turn around and send the same communication to a different list, click the Copy Communication button from the Communication History page. This will take you back to the beginning of the Communication Wizard, keeping the settings and design options of the original communication.

Pretty cool, right? With the Communication Wizard, you’re going to be rocking email and SMS messages in no time.

Simple Email Editor

Rock’s previous, non-wizard communication system (aka, Simple Editor) is still available. You may find it useful if volunteers need to send individual or simple communications. Here’s what you should know about using the Simple Editor.

Sending a Communication Using the Simple Editor

There are a lot of ways to start a new communication. The most popular one is to click the button at the top or bottom of any grid of people. This will take you to the New Communications page and add all of the individuals from the grid to the communication as recipients. This is really powerful when used with Data Views and groups pages. If you prefer you can also start a new communication from People > New Communication and enter your recipients by hand.

Whichever method you use, the Simple Editor can be accessed by clicking the Use Simple Editor button near the top right of the screen.

Use Simple Editor
Use Simple Editor

Tip: Hide the New Communications Button

If a person does not have view access to the New Communications page the button at the bottom of the grid will be hidden.

Once on the Simple Editor page, you’re ready to start crafting your message. We'll walk through each section of this page highlighting some of the features you have at your disposal.

New Communication
New Communication
1Selector
Email is the default communication medium, but this can be updated from the communication selector at the top of the page.
2Recipients
The recipient list will be filled with all of the people you previously selected as recipients. You can also add and/or remove names from the list at this point. Don’t forget that if you started with a blank communication, you'll need to enter all of the names manually. You may notice that some names are in red. These names either do not have an email address or have been marked as not wanting emails or bulk emails.
3Bulk Option
Determine if this message should be treated as a bulk email. Bulk emails will have an unsubscribe link added to them and will exclude people who have asked that they not receive bulk emails from your organization. If you can't see this option then the email is being treated as bulk.
4Template
If you would like to use a previously created email template, you can select it here. For more information on creating templates see the Email Template Survival Guide. This page can be set with a default template. Out-of-the-box this will show your organization’s header and footer with the sender's signature.
5From
Fill in the email address that you would like the email to be sent from. By default, your contact information will be input, but you can change this as needed.
6Reply to Email
You might want replies to go to a different address than the one you're sending from. For example, when you send emails from the organization's leader, you may want the replies to go to an administrative assistant.
7Attachments
You can add any number of attachments you want to the email. Why limit a good thing?
8Subject
Next, enter the subject of your email. A well-written subject can greatly increase the response rate of the email. Here are a few tips: provide context for the content of the message and a hint about the organization sending it. Remember to focus on catching the eye of the reader. You can use Lava merge fields in your subject line so by all means, be creative.
9The Message
Now the fun part: your message. While you can enter any generic message in this box, consider personalizing your message using merge fields. The message editor has a button {} for selecting a merge field to add. Personalization is one of Rock's main strengths so be sure to use it to its fullest.
10Delay Send
If you'd like you can delay the sending of your message to a date and time in the future. What a timesaver!
11Test
Before sending the email it's wise to send a test. Using the Test button will send the contents of the email to the currently logged in user. The first recipient will be used to process any merge fields in the email.
12Draft
Finally, you can send the communication or save it as a draft to be completed later. This draft will be available to complete from People > Communication History. Take the time to get it right!

Resolving Relative Links

By default, Rock will convert relative URLs in links and images to absolute URLs using the Public Application Root global attribute.

Mass Push Notifications

The Mass Push Notification page lets you send a push notification to every active mobile device in your system. By default, a device is considered active if it's had an interaction recorded within the past year. That's a lot of notifications, so this isn't something you'll use every day, but you'll find it's perfect for certain communications.

Sending Mass Push Notifications

You'll find the Mass Push Notification page under People > Communications > Mass Push Notification. If you've used tools like the Communication Wizard to send push notifications, then this page will look familiar to you.

Mass Push Notification
Mass Push Notifications
1 Title
This will be the title of the push notification and will be seen by the person receiving it.
2 Add Merge Field
You can easily personalize the content of the notification by adding Lava merge fields from this drop-down.
3 Notification Content
This is the main content that the person will see. Merge fields will appear here when added, to customize and personalize the content.
4 Open Action
When Link to Mobile Page is selected then you can set which page the person will be taken to, including any query string parameters you might add. If Show Details is selected, you'll be prompted to select a Mobile Application and add additional details in the editor provided.

By default, this block will send a notification to every device that has had an interaction recorded in your system within the past year. Administrators can edit the block settings to change the number of days that the device must have had an interaction for it to be considered active.

Approvals

As your organization grows, you'll find an increasing number of people sending large emails. Chances are good that not all of them understand the intricacies of your communications strategies. Rock has just the thing to help you maintain quality in growth – approval settings for emails that are sent to a large number of people.

Approving Emails

By default, emails that are sent to 300 or more recipients will require approval. This number can be changed by configuring the block settings of the Communication Entry block (for the simple editor) or the Communication Entry Wizard block (for the wizard).

When an email requires approval, its status will be set to Pending Approval and members of the RSR - Communication Approvers group will receive an email. Note that this is the only group that will receive the approval emails.

A communication will not be sent until it's approved by a person with approval access. By default, these are the RSR - Communication Administration and RSR - Communication Approvers roles. Before a communication is approved these roles have the ability to edit the communication to ensure it meets the standards of your organization.

Any individual with approval access can view a complete list of communications waiting for approval from the Communication History page. The filters on the Communications List block allow approvers to view communications from anyone in Rock, with additional filters for status.

Additional security roles can be added to approve communications by adjusting the block security of the Communication Entry Wizard and Communication Entry blocks. Simply add the new role to the Approve permission of these blocks.

Approver Notification Emails

By default, the System Communication for approval emails is Communication Approval Email. Just like other communications, you can customize the content of your approval notifications to suit your needs.

Email Only

The approval notification communication currently only works with emails and cannot be used with the SMS or Push features.

If you need to take it a step further, you can use an entirely different System Communication for these approvals. Simply go to Admin Tools > Communications > Communication Settings and select the System Communication you want to use instead.

Communication Settings
Communication Settings

Communication Preferences

Rock's communication tools provide powerful functionality not only to senders but also those receiving communications. Recipients can control not only which communications they receive but also how they receive them. Let's look at how Rock handles communication preferences.

Communication List Subscribe Block

Rock ships with the Communication List Subscribe block ready for you to use on your external website under Connect > Subscribe. This block will display the communication lists a person is subscribed to or can be subscribed to. Pictured below is an example of this block on the external website.

Sample Subscribe Page
 Sample Subscribe Page

In this example, the block shows the three communication lists that ship with Rock under the Public category: Parents of Children, Parents of Youth and Sports Ministry. Additional lists unique to your organization would be displayed here as well if the person is subscribed or is able to subscribe to them.

You can further configure the Communication List Subscribe block in the block settings. This is one area where Communication List Categories come into play. You can specify a category in the block settings if you want the Communication List Subscribe block to target only a particular segment of the communication lists. By default, this is set to display lists in the Public category.

Communication List Block Settings
Communication List Block Settings
1 Communication List Categories
Whichever categories you select here will affect the functionality of the Communication List Subscribe block. For example, you could select Staff Only to display lists only available to staff members. If you don't select a category, Rock will display all of the lists the person is authorized to view.
2 Show Medium Preference
For instance, the person could choose SMS or Email as their preferred medium.
3 Filter Groups By Campus Context
Communication lists associated with a campus can be filtered using campus context.
4 Always Include Subscribed Lists
If the campus context would normally filter out a list the person is subscribed to, this setting keeps it in place.

Remember, the "Public" category ships with Rock, but you can create as many categories as you want. Whichever categories you select here will affect the functionality of the Communication List Subscribe block. For example, you could select Staff Only to display lists only available to staff members. If you don't select a category, Rock will display all of the lists the person is authorized to view.

Now let's look at how a person interacts with the Communication List Subscribe block to set their communication preferences.

Setting Subscription Preferences

There are two ways a person can access and set their communication preferences: by logging in and navigating to a subscribe page, or by clicking the unsubscribe link that takes them to an email preferences page. Let's look at the subscribe page option first.

Setting Preferences in a Subscribe Page

When a person logs in, the Communication List Subscribe block is made available for them to set their communication preferences. If that block is placed on a Subscribe page, as shown in the earlier screenshot, they can select which lists they want to subscribe to, and choose which format they want the messages they receive to be in. To subscribe to a list, simply check the box beside the list's name. To unsubscribe, uncheck the box. To set a delivery preference, simply click which you want to receive: email or SMS. Super easy, right?

Communication Wizard and Delivery Preference

The Communication Wizard uses the preferences set using the Communication List Subscribe block. So, when sending a communication using the wizard, if you choose the Recipient Preference option in the Communication Delivery screen, the wizard will check which preferences a person has set and send the communication accordingly.

The Communication List Subscribe block works the same way for the internal pages of your organization's site as well. You can create subscribe pages available only to staff members or others where they can set their communication preferences. For example, you can set up an employee resources page with an email preferences zone containing the Communication List Subscribe block.

Sample Employee Resources Page
Sample Employee Resources Page

Setting Preferences from an Unsubscribe Link

The other way a person can access and set their communication preferences is by clicking on an unsubscribe link in an email or SMS message.

Unsubscribe Page
Unsubscribe Page

The Email Preference Entry block on this page allows you to customize the wording for each of the options on the page. If you want to add more reasons for the "I am no longer involved" option, you can do that under
Admin Tools > General Settings > Defined Types > Inactive Record Reason.
The block also allows you to suppress any reasons that might be awkward in this context (e.g., Deceased, No Activity).

See the Unsubscribing section above, in the Configuring Email chapter for more information on this page and the unsubscribe process.

A Note About the Email Preference Page

If a person is logged in when they view the Email Preference page, any communication lists they're subscribed to will be displayed beneath the "Only unsubscribe me from the following lists" item, allowing the person to select which list(s) to unsubscribe from.

Communication History and Analytics

A communication from Rock continues to provide value even long after it's sent. Using the tools described in this chapter, you can measure the success of past communications to inform your future communications. You can even drill down to an individual's communication history to see which communications they engage with.

Person Communication History

A history of communications that have been sent to an individual can be viewed on the Person Profile page, under the History tab. This is where you'll come to find out which communications a person has received, and to view the details of those communications.

Person Profile Communication History
Person Profile Communication History
1 Communication Medium
From this block you can view push notifications, emails or SMS messages the person has been sent.
2 Message Summary
Here you can see the subject (for emails) and title (for SMS/push) of the communication. You can also see who sent the communication. Clicking More will provide further details about each communication.
3 Recipients
This column shows a count of how many recipients received the communication.
4 Date and Status
The date the communication was sent is shown for reference. You can also see the Status of each communication:
  • Cancelled
  • Delivered
  • Failed
  • Interacted
  • Pending
  • Sending

Phone Number Security in Communication History

You can set a security which allows specific people to view the SMS messages when setting up the SMS communication. But please note that the personalized communication history block does not respect SMS view access. This means that people will be able to see the SMS communication even if they do not have the security permission to do so.

Communication History

You can view a history of the communications you've sent under People > Communication History. The list of communications can be filtered based on a variety of data elements, like type, status, content, etc.

Communication History
Communication History

See the Bigger Picture

Those with Approve permissions on this block will be able to see every communication in the system and can filter by a specific person.

Viewing Analytics

When you click a communication from the Communication History list, Rock displays a page showing the status of the message along with any analytics that are available. This is where using one of the email service integrations like Mailgun can provide a ton of value.

With services like Mailgun you can see how many people have opened your message and even which links they've clicked. This gives you a much broader understanding of how well your message was received and what calls to action were engaged. To learn more about Mailgun, see the Integrations chapter below.

Communication Analytics
Communication History - Analytics
1 Status States
Analytics are shown for each state that a message could be in. The number and types of states is dependent on the transport that you used. The states pictured above include:
  • Pending - The communication has been saved or queued but hasn't been sent yet.
  • Delivered - The communication has been sent to the appropriate destination server. For email communications this does not mean that it necessarily reached the person's inbox, just that it made it to the recipient's email server.
  • Failed - The communication did not reach the recipient. This could be from a bad email address or a hard bounce.
  • Cancelled - This state is used when a communication has been cancelled by the sender.
2 Analytic Graph
This graph shows the number of opens, clicks and unopened messages over time. As emails are opened you should expect the number of unopened messages to go down while the number of clicks (hopefully!) goes up.
3 Actions
The Actions section gives you lots of information at a glance, making it easy to monitor overall activity.
4 Clients
Services like Mailgun can identify which email clients are being used by recipients to view your email.
5 Popular Links
In addition to knowing the number of clicks, progress bars at the bottom of the page let you know which links are being clicked and how frequently.

Email Analytics

If you want a wider view of these types of analytics for emails, go to People > Communications > Email Analytics. There you can view analytics for all emails within a specified time period.

Viewing Message Details

This page shows you details related to the communication itself. Reviewing things like the subject of an email or the phone number used to send a text message can be helpful both for sent messages and for future communications that are pending.

Communication History - Message Details
Communication History - Message Details
1 Created By
The name of the person who created the communication, and when it was created, will be displayed here.
2 Approved By
After a communication has been approved you can see who approved it and when the approval took place.
3 Change Communication View
Right now we're looking at the Email version of the message, but you can toggle over to SMS to see the SMS version of the communication. This will only appear if the communication was crafted to send both Emails and SMS text messages.
4 Communication Details
Here you'll see the "From" value that's being used, as well as the subject of the email.
5 Message Content
If the communication originated from a list block, such as those associated with data views or small groups, clicking this link will take you to that page.
6 Copy Communication
Using the Copy Communication link will create a new communication with the exact settings used for this communication. The recipient list will be the same. If the initial communication was sent from a dynamic list of people (like a Data View) it will not re-run the list.

If the communication was launched from a grid, you may also see Originated from this Page which will take you to the page containing the grid of people from which the communication was initiated. If the communication is a draft (i.e., not yet sent) you'll also see the option to Cancel Send.

Viewing Activity

This area lists activities for the communication. Depending on the transport used, you can see every time the message was opened by a recipient and every link inside the communication that was clicked.

Communication History - Activity
Communication History - Activity
1 Date
The date and time on which the activity occurred are displayed for reference.
2 Person
The person who took the action is provided as a link that takes you to their Person Profile page.
3 Activity
The specific action (e.g., Opened, Click) that the person performed is shown here. You can sort the list by activity to group actions together.
4 Details
Details related to the activity are displayed here. If the person clicked a link, the link’s URL will also be displayed.

Viewing Recipient Details

Details about the individuals who received the email can be viewed here. This is great for accessing and analyzing easily customizable sets of information about communication recipients.

Communication History - Recipient Details
Communication History - Recipient Details
1 Person Properties
Select one or more person properties and click the Update button to have those properties displayed in the grid. You can then sort the communication recipients according to the selected properties.
2 Person Attributes
Like the person properties, you can select one or more attributes to display in the grid. From allergies to t-shirt sizes, you can add as many as you need.
3 Filter Options
Dive into the details and take control of recipient data! Here you can filter by delivery status, the communication medium, or whether the person opened it. Or, focus on individuals or families by filtering by name. Organizations with multiple campuses can also filter by campus.
4 Recipient Detail Information
This area will show the person’s name and general information related to the communication itself. As described above, columns can be added according to any properties and/or attributes you’ve selected.

System Communications

System Communications (formerly known as "System Emails") are communication templates that are used by Rock to send very specific messages. Typically, these are automated communications, such as the message someone receives when they've forgotten their password and requested to reset it.

System Communications can be used with either emails or SMS messaging. While Rock sets these up to look professional from the start, you may want to modify them to match your organization's branding. You can edit these communications under Admin Tools > Communications > System Communications.

System Communications
System Communications
1 Title
This is the name of the system communication. This is only used internally and would not appear in the communication itself.
2 Subject
The subject line of the system communication is displayed here for reference. This can help you identify the system communication you're looking for.
3 Category
Every system communication must be associated with a category. If needed, you can add or remove categories from Admin Tools > System Settings > Category Manager. System communication categories use the System Communication entity type.
4 From Address
If you have a From Address configured in the system communication, it will be displayed here for reference.
5 Mediums
Here you'll see SMS or Push tags, indicating that the system communication is configured for those mediums.
6 Preview
Clicking the icon will show you a preview of the communication, as it would look if sent to a particular person at a specific time. See below for details.
7 Active
This simply shows whether the system communication is currently active.
8 Security
You can apply security to each system communication individually. This will restrict who can see the communication on the History tab of the Person Profile page and on the Communication Detail block.
9 Delete
You can probably guess what this does. Only system communications that are not marked as Is System can be deleted.

System Communication Preview

As noted in the screenshot above, you can click the icon to view a preview of the system communication. However, this is not the typical preview you might be used to seeing when editing the system communication. This is a special preview that's interactive, allowing you to choose a person and a date to populate merge fields. This helps you see what the communication will look like with certain merge fields filled in.

System Communication Preview
System Communication Preview
1 Message Date
Here you can select a date, showing you what it would look like if the communication was sent on that date. In order for this to appear you need to have a merge field of SendDateTime somewhere in the communication template, and a Send Day of the Week must be selected in the block settings.
2 Target Person
This defaults to the current person but can be changed to any person. Changing this will populate any Person merge fields in the communication, showing you what it would look like if it were sent to that person.
3 Desktop/Mobile
Here you can toggle between the Desktop and Mobile views of the communication.
4 Send Test
You can click this to send a quick test to an email address that you provide.

CSS Inlining

CSS Inlining of Email Templates is only available if the email Communication Transport supports it. You can allow CSS Inlining for all emails by updating the Communication Medium settings.

Integrations

Email: Mailgun

We've already touched on just how great we think Mailgun is, but let's dig deeper into the benefits of their service.

Note:

We are not in a business partnership with Mailgun, nor do we receive any form of compensation from them. We are just passing along helpful tips about some quality products and services we’ve discovered along the way. While Rock ships with the Mailgun transport, other integrations and plug-ins may be available in the Rock Shop.

Mailgun is an email delivery service that provides several advanced features. Mailgun is operated by the popular web hosting company Rackspace and is used by numerous online businesses like Stripe, GitHub, Lyft, Slack and many many more. We think you'll find that using a service like Mailgun is more than worth the small cost. The main benefits of Mailgun are:

  • Improved deliverability of your emails through advanced reputation features like SPF records, domain-keys and reputation monitoring. If all of this sounds Greek to you, don’t worry, they handle all of the technical details. You just need to know that they know what they're doing so you don't have to. Whew!
  • Email analytics that help you keep track of trends. Through Mailgun, Rock can show you how many of your emails made it to their destination and, even more importantly, how many were opened, and internal links clicked. All of this happens for you behind the scenes so you can just sit back and view the reports.
  • Not all email addresses work. Mailgun can notify you about incorrect email addresses so you can follow up. These bounced emails will be reported, and the person’s profile will be flagged to show the incorrect address.
  • Mailgun also offers to inline your emails for you as you send.

Costs

As of this writing, Mailgun has a free starter package that generously gives you 5,000 emails a month for your first three months. After that you can pay by the number of emails you send or purchase a different plan. For full details and up-to-date pricing visit their website. In our experience, Mailgun's pricing has been very competitive, and their features are among the best in their class.

While the starter package will save you money, keep in mind that you will be given a shared IP address with other organizations. In addition to sharing that IP address, you'll share their reputation, and in some cases, their blacklist. If you find that your emails are not always getting through, or if you want to be on the safe side, you might consider purchasing a plan with a dedicated IP address. And if you've already found yourself on a blacklist, Mailgun has provided documentation about blacklists and how to follow up with their support.

Setting Up Mailgun

Mailgun has spent time making their service easy to configure. Follow the steps below to enable and configure a new Mailgun account for Rock.

Mailgun Updates

In late 2023, Mailgun changed its key structure, providing both Mailgun API keys and an additional HTTP webhook signing key. In Rock versions 14.4, 15.4, 16.1, and later, separate fields in the Communication Transport settings accommodate these keys. For new Mailgun accounts, you'll use either the standard account-wide Mailgun API keys or domain-specific Sending API keys as the API Key in Rock. Additionally, the HTTP Webhook Signing Key should be added to the corresponding field just below the API Key. Existing accounts only need action if you've changed your Mailgun API keys.

  1. Sign up for a new account on the Mailgun website.
  2. Once setup is complete, head to the main Dashboard page in your Mailgun account to start collecting what you’ll need to get Mailgun set up with Rock.
    1. In the box near the bottom-right of the Dashboard page, click on the “API Keys” link.
    2. On the API Keys page, reveal the full HTTP Webhook Signing Key by clicking the eye-shaped icon. Keep track of this key, you will need it in Rock.
    3. Below the webhook key you’ll find a section called Mailgun API Keys that you'll use to create your API key by clicking the Create API Key button. You'll need to provide the key a short name and click Create Key to continue.
    4. Be sure to immediately copy the API key that appears on the screen. Not only will you need it in Rock, but this is the only time you get to see it. It is not the same as the Key ID listed in Mailgun.
    5. If you lose your key, you’ll need to create a new one by clicking the Add new key button.
  3. Set up your domain.
    1. Head back to the Dashboard page and click the Add a custom domain link near the middle-right of the page.
    2. Provide your domain name and choose an IP assignment option. You may need to upgrade your plan before you can use a dedicated IP, as noted in the prior section above.
    3. On the following page, Mailgun will walk you through the DNS changes that need to be made to ensure the best delivery and spam protection.
  4. Next, return to the Dashboard and scroll to the bottom to see your list of domains.
    1. Click the gear icon to the right of your domain and go to Settings. On the new page click the SMTP credentials tab.
    2. Under the SMTP credentials heading, note the login and password. You might need to reset the password.
    3. On the same page, below the Login information, note the value under SMTP settings (it will probably be “smtp.mailgun.org”).
  5. Take a breather! You're almost done. The last step in Mailgun is to configure the webhooks. To do this select Webhooks from the left-hand navigation. On the webhooks page, click the Add webhook button near the top-right of the page.
    1. You’ll need to add a webhook for each “Event type” in the list.
    2. Put https://[yourserver.com]/webhooks/Mailgun.ashx as the URL for all events (see image below).
    3. The Open and Click tracking options need to be turned on in the Domain Settings in the Mailgun site. It's located in the Tracking section under the Domain Settings tab. Once you turn these on, the data will be tracked.
  6. Mailgun Webhooks
    Mailgun Webhooks

    Here's what your webhooks screen should look like once you've got it configured in Mailgun.

    Long-time users of Rock and Mailgun may recall the "Legacy Webhooks" section. As of April 2023, Mailgun no longer supports the Legacy Webhooks configuration. If you only have Legacy Webhooks set up, you'll need to move the addresses to the "Webhooks" section as shown. It's likely that Mailgun has automatically done this for you, but you may want to check to be sure.
  7. Let's head back to your Rock server. First, let's enable the Mailgun Transport under
    Admin Tools > Communications > Communication Transports > Mailgun HTTP.
    Start by changing the Active setting to "Yes". Next, provide the Mailgun API key and the HTTP Webhook Signing Key from above. Finally, add the domain that you want your email to come from (this must match the domain that was configured in Mailgun).
  8. Last step and we're done. Now that the email transport is configured, we need to tell Rock to use it for the email medium under
    Admin Tools > Communications > Communication Mediums > Email.
    Select "Mailgun HTTP" under Transport Container.

On Behalf Of

Following the instructions on Mailgun’s site may lead to a scenario where your emails are sent “on behalf of” your domain. In short, this happens when the domain of the Sender field and the domain used in the From field are different. For instance, the Sender field would be something like mg.rocksolidchurchdemo.com while the From field would be rocksolidchurchdemo.com.

Email With On Behalf Of
Email With On Behalf Of

In order to resolve this, the domains should match. The domain that you're sending emails from needs to be added to your Mailgun account and verified. In the above example, the domain rocksolidchurchdemo.com would need to be configured in Mailgun, and your DNS records (all except MX) would need to be updated accordingly. When you're finished, your domain overview in Mailgun will look similar to the example pictured below.

Mailgun Domain Settings
Mailgun Domain Settings
1 SPF Record
You probably already have an SPF Record; in which case you should just add include: mailgun.org to your existing record rather than creating a new one.
2 DKIM Record
You'll create a new TXT record in your existing domain that matches what Mailgun shows here.
3 MX Records
If you're using your actual email domain, you should not modify these records. Note that in this screenshot the MX records are unconfirmed, which is expected for this approach.
4 CNAME Record
Mailgun will use the CNAME record to inform Rock of opens and clicks. You'll need to create a new record like Mailgun shows.

Lastly, make sure the new domain is added to your Mailgun Communication Transport configuration under Admin Tools > Communications > Communication Transports > Mailgun HTTP per the instructions in the prior section above. With the new domain set up and ready to go, your emails will no longer have the "on behalf of" notation. If you had an old domain that you were using (like mg.yourserver.com) it's no longer needed in Mailgun.

Email Without On Behalf Of
Email Without On Behalf Of

SMS: Twilio

Twilio is the leading SMS provider. Period. They not only provide the best service, but they are also one of the least expensive options available. Again, we don’t have a relationship with this organization, but we do know a good thing when we see it! Below are instructions on setting up this service for Rock.

  1. From the Twilio website click the sign-up link, then provide your account information. You'll then need to verify that you have a pulse by typing in a verification code they text to you. Finally, select a phone number to tie to your account and proceed to your account information.
  2. On your account page note your Account SID and Auth Token. You'll need this for Step 5 below.
  3. In order to receive replies from your SMS messages you'll need to provide a 'callback' (aka webhook) address for your SMS number. This tells Twilio how to tell Rock when this event occurs. You can set this by clicking 'Numbers' from the main menu, selecting the SMS number you wish to configure, then adding the URL format below to the 'Messaging Request URL'.

    https://-yourserver-/Webhooks/Twilio.ashx

    SMS Pipeline

    To set your number up for the SMS pipeline, use the 'Messaging Request URL'
    https://-YourServer-/Webhooks/TwilioSMS.ashx?SmsPipelineId=-YourPipelineId-

    Configuring the Twilio Webhook
    Configuring the Twilio Webhook

    Make It Accessible

    It's important that this address be accessible from the Internet so Twilio can access it.

  4. Before you can actually use Twilio for real communications, you'll need to upgrade from the free trial.
  5. From Rock navigate to
    Admin Tools > Communications > Communication Transports > Twilio.
    Enter in your Account SID and Auth Token and activate the transport. Click Save when done.
  6. Next set the Twilio transport as the default transport for the SMS medium under
    Admin Tools > Communications > Communication Mediums > SMS.
  7. Finally, add your Twilio phone number under
    Admin Tools > Communications > System Phone Numbers.
    You can add as many Twilio numbers here as you wish. Be sure that the phone number is in the Phone Number field and that it is in the format of “+15555555555” (or similar for international numbers). If you select an Assigned to Person, be sure the individual you select has a valid SMS phone number on their record.

Twilio Signature Validation

When you’re setting up your Twilio transport as described above (step 5), you’ll have an option to Enable Signature Validation. You’ll want to enable this if you're concerned that a system other than Twilio might try to send incoming SMS responses to your Rock server. Enabling this is a small step you can take to possibly avoid a lot of unwanted messages, and it helps keep your data secure.

In short, Signature Validation compares your Public Application Root (this is a Global Attribute in Rock) to the webhook that’s set in Twilio. If they match, the validation is successful, and the message will come through as usual. If they don’t match, then the message won’t reach Rock. There’s a bit more to it than that, and it gets a little technical, but we strongly recommend checking out the details on Twilio’s site so you can get this set up.


That's it! Now you’re set to send SMS messages from the Rock communications features.

Twilio's Impact Access Project for Non-Profit Organizations

Twilio offers a $500 kickstart credit to non-profit organizations. To learn more, visit www.twilio.org.

Twilio, Short Codes and MMS Messages

If you're using a Twilio short code, keep in mind that it doesn't automatically support MMS messages. You can add MMS capabilities for a one-time fee of $500. This is different than regular "long codes" (phone numbers) where MMS is usually automatically supported.

If you're not sure whether your account supports MMS messaging, check your Twilio Console. If you only see "Capabilities: SMS" and MMS is not listed, then it's likely you haven't purchased MMS for your short code.

Email: Google Apps

Note

Gmail is not a commercial Email Delivery Service and has significant limitations on how many messages can be sent per day, how many identical messages can be sent to different addresses, etc. Using Gmail as your email delivery service is not a viable solution for most organizations and should only be used for testing. You will want to implement one of the other email transports discussed in this section for production use.

This technically isn't an integration as much as tips for configuring SMTP Relaying for Google Apps. The basic steps are covered in this link from Google https://support.google.com/a/answer/2956491?hl=en. A couple of tips are below.

  • The link above notes you will find the relaying settings under the 'Apps' menu setting. That setting appears to have been moved. Instead search for 'SMTP Relay' in the admin search.
  • We've found success with the following Google Relay options.
    1. Allowed Senders: Any Addresses
    2. Authentication: Require SMTP Authentication
    3. Encryption: Require TLS encryption
  • On the Rock side use the following SMTP settings.
    1. Sever: smtp-relay.gmail.com
    2. Port: 587
    3. Username: The admin account username
    4. Password: The admin account password
    5. Use SSL: Yes

Email: SendGrid

SendGrid is another supported Transport you can use in Rock. Like the other options described above, be sure to evaluate each service before deciding which is the best fit for your organization’s needs.

Most of the configuration you’ll need to do will be with SendGrid. You can learn more and get started for free by visiting https://sendgrid.com/. After you’re set up with SendGrid, you’ll need to provide the following in Rock:

  • Base URL: The default URL https://api.sendgrid.com should work in most cases. You can change this if needed based on your setup in SendGrid.
  • API Key: SendGrid will provide this when you’re set up with their service. This is required for Rock and SendGrid to communicate.

Like other Communication Transports, you can also choose whether SendGrid should track email opens, clicks and unsubscribes. Note that Rock only supports HTTP/S (and not SMTP) for SendGrid.

Setting up SendGrid

The first step will be getting your API Key. Log in to your SendGrid account and navigate to Settings > API Keys. Click the button for Create API Key.

Create API Key
Create API Key

We recommend giving Restricted Access permission. Also, make sure Mail Send is assigned full access as pictured below.

API Key Configuration
API Key Configuration

Be sure to copy the API key when it is presented to you. SendGrid warns that you won’t see it again, and that's true. If you lose the key, you’ll have to create a new one.

Once you’ve got your API key, you’ll need to add it to Rock. Inside Rock, navigate to Admin Tools > Communications > Communication Transport > SendGrid HTTP and add the Base URL and your API Key as pictured below.

Communication Transport
Communication Transport

Next, you’ll need to update the Communication Medium configuration in Rock. Navigate to Admin Tools > Communications > Communication Mediums and access the Email entry. Change the Transport Container to the SendGrid HTTP transport configured in the prior step.

Communication Medium
Communication Medium

With the above configuration in place, head back over to SendGrid to set up the Event Webhook. You can access this in SendGrid under Settings > Mail Settings > Event Settings. Click the pencil icon for the Event Webhook row to access its settings.

Edit Event Webhook
Edit Event Webhook

The Event Webhook settings in SendGrid will look like those pictured below. The HTTP Post URL will be formatted as shown, with your Rock URL followed by Webhooks/TwilioSendGrid.ashx. Twilio owns SendGrid, so don’t be concerned about the Twilio part of the webhook.

Event Webhook Configuration
Event Webhook Configuration

Note that Processed and Deferred currently have no functionality in Rock and can be left disabled. Be sure that the Event Webhook Status is set to Enabled before saving.

To track opens and clicks, you’ll want to enable those Tracking options in SendGrid. Under Settings click on Tracking to enable these options by clicking the pencil icon. The example below shows what the page will look like after open and click tracking have been enabled.

Tracking Settings
Tracking Settings

Lastly, add your information to the Sender Authentication settings. This helps with deliverability. An example of the setup is pictured below, but if you’re not sure what you need there’s a helpful link at the top of page.

Sender Authentication
Sender Authentication

Don’t be discouraged if your emails aren’t popping into inboxes right away. There are a variety of factors that can cause delays ranging from a few minutes to several hours. You can click on the Activity menu item in SendGrid to search for emails you’ve sent and view details on what may be holding them up. Be patient, because sometimes there’s a delay between sending an email and seeing it in the Activity list.

Email Spam Reporting

When you send an email, the recipient can report the email as spam. When this happens, Mailgun and SendGrid can report it back to Rock through their APIs. Rock will then find the person and inactivate their email address in the system and add a note to their record. The note indicates that the email address was deactivated due to a spam complaint and includes the date of the complaint.

In order for this to happen, in Mailgun you would need to set up a webhook of type Spam Complaints. In SendGrid you'll want to update the Event Webhook to include "Spam Reports" under Engagement Data.

Check out the Unsubscribing section of the Configuring Email chapter above to see how Rock can help your emails avoid being reported as spam.

Improve
