Introduction

Field types have become rather complex. This document aims to provide understanding for how field types work and the various methods that are used to provide different functionality.

Functionality

At a high level, a field type provides 4 pieces of functionality:

1. Viewing a value.
2. Editing a value.
3. Filtering on a value.
4. Configuring behavior.

The idea is to abstract all this functionality into a single interface (both in C# and TypeScript) so that you don't have to think about the specifics when working with fields in a block. You simply tell a field type to "display the value" and it does so.

Viewing a Value

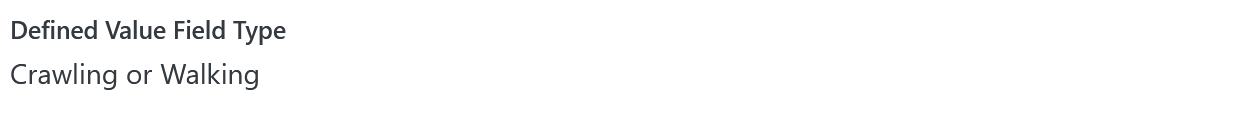

The raw value might be naturally formatted (for example a text field type), or it might need to be formatted for human readability (such as a person field type because the raw value is a GUID). When viewing a value, it can be presented in one of two ways. Either as a plain text string, or as an HTML formatted string.

For example, a person field type might return just the person's full name when formatting for text display. And when formatting for HTML it might return it as a clickable hyperlink to the person detail page. However, most field types will probably output the same content for both the text formatting and HTML formatting.

Editing a Value

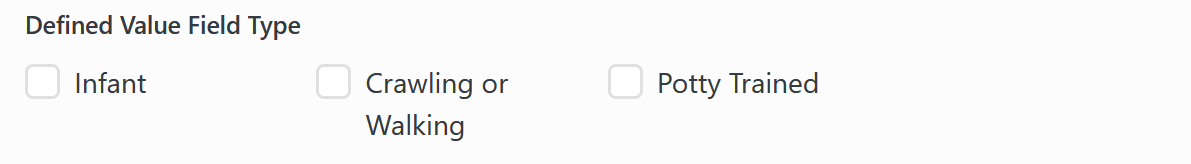

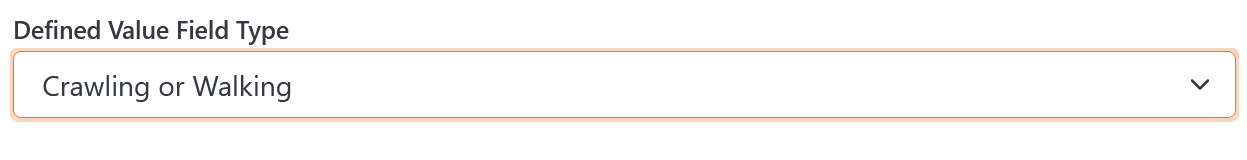

Because the raw value may not be in a format that can be easily edited by the individual, custom UI controls are used by the field types to edit their values. For example, a group field type stores the value as the unique identifier of the group. But that isn't something the user can edit with just a text box. So a group picker is used to allow the individual to have a friendly interface to the underlying value.

Filtering on a value

Field types can provide custom filtering logic to either properties or attributes of entities. This filtering is used during database queries to return a subset of results that match what the individual is looking for. Filtering also uses custom UI controls to provide the interface to select the value to filter on.

Field types can also opt-out of filtering if it does not make sense for their data type. For example, a sliding date range field type would not support filtering.

Configuring behavior

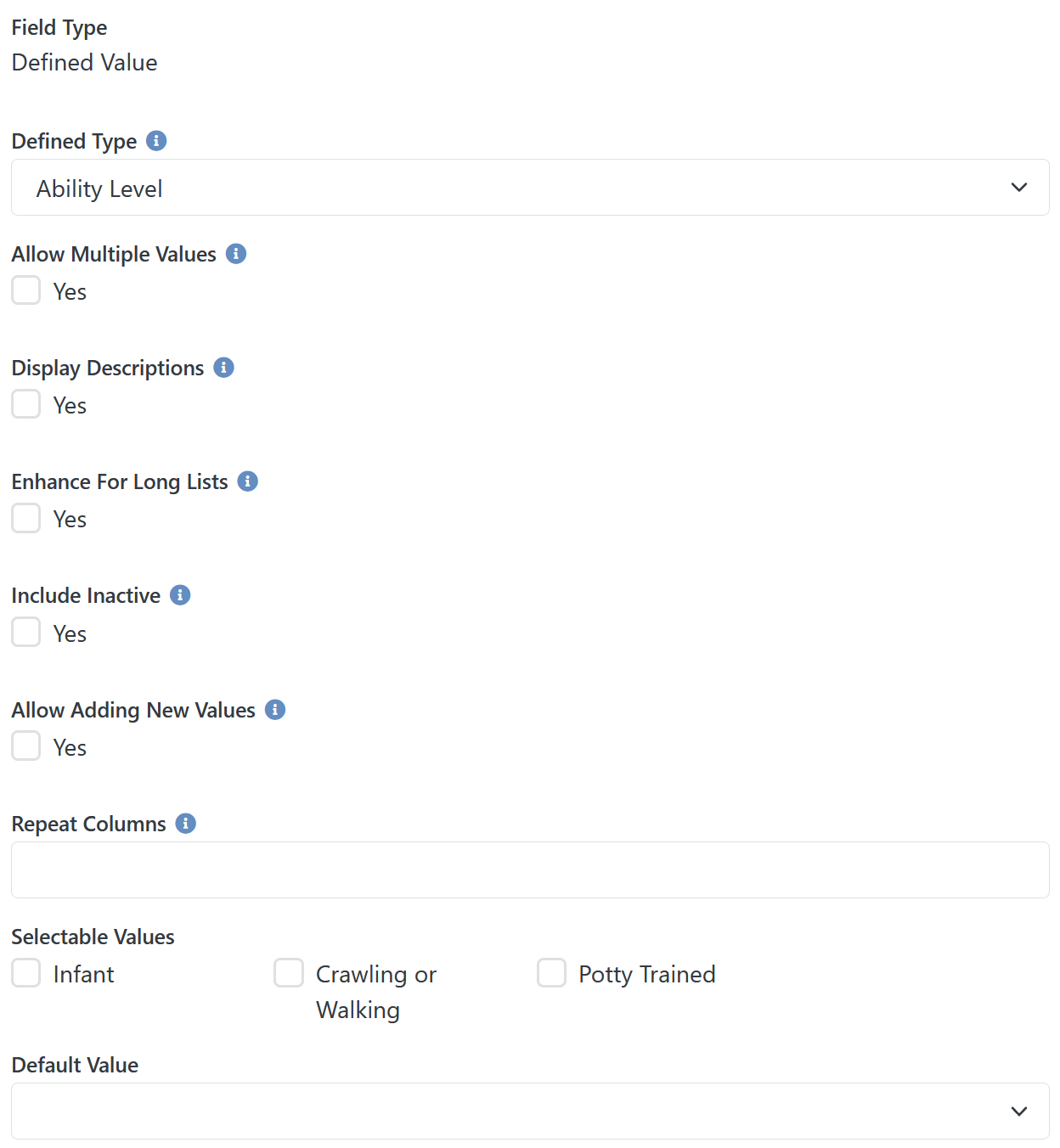

Finally, custom UI controls are also used to configure the behavior. These controls allow the individual to set the configuration values of the field type - often in the form of an attribute. These configuration values are then used by the other three functionalities above to configure how they behave.

For example, a text field type has options to control the maximum length of the text entry control.

Intermediate Topics

Configuration Values

All field types can have a set of configuration values. These take the form of key-value pairs. When used by attributes, these are stored in the AttributeQualifier table. The meanings of these values are dictated by the field type itself. But in general, these key-value pairs describe the behavior when viewing, filtering or editing a field type.

For example, a Text field type has a configuration value that specifies the maximum length of text that can be entered. This particular key-value pair changes the behavior of the edit control. While the URL Link field type has a configuration value that specifies if the link should be rendered as a clickable link or plain text, which only affects the viewing of a value.

Public vs Private

Field types have a concept of public and private data. Private data is what is used by the server and is never transmitted over the wire. Public data is that same information sanitized for transmission over the wire. The private data may contain sensitive information that should not be visible to most people.

For example, the social security number field type has a private value that contains the social security number, such as 111-22-3333. But that private value shouldn't be sent over the wire when viewing the value since we don't expose the entire value for display purposes. Instead, the public value sent is ***-**-3333.

This holds true for both actual field values as well as configuration values.

Many field types don't really have sensitive data and can use the default implementations which just pass along the private data. But any time you are implementing a field type or adding "public" functionality to an existing field type you should question if the data is really safe to transmit over the wire.

Public data can also just be the private data formatted for use by Obsidian controls rather than C# controls. For instance, with a C# control, when you select a value from a list, it is generally stored as a GUID or ID in the database and a C# control can directly use a GUID, but Obsidian controls would require an additional call to the server to retrieve more data if they only have the GUID, so it's common to convert GUIDs or IDs into ListItemBags to make it easier for Obsidian to utilize the data. If you need to do this, then you also need to write a corresponding method for converting the ListItemBag into a GUID or ID for storage in the database and/or use by the C# control.

Obsidian Flow Charts

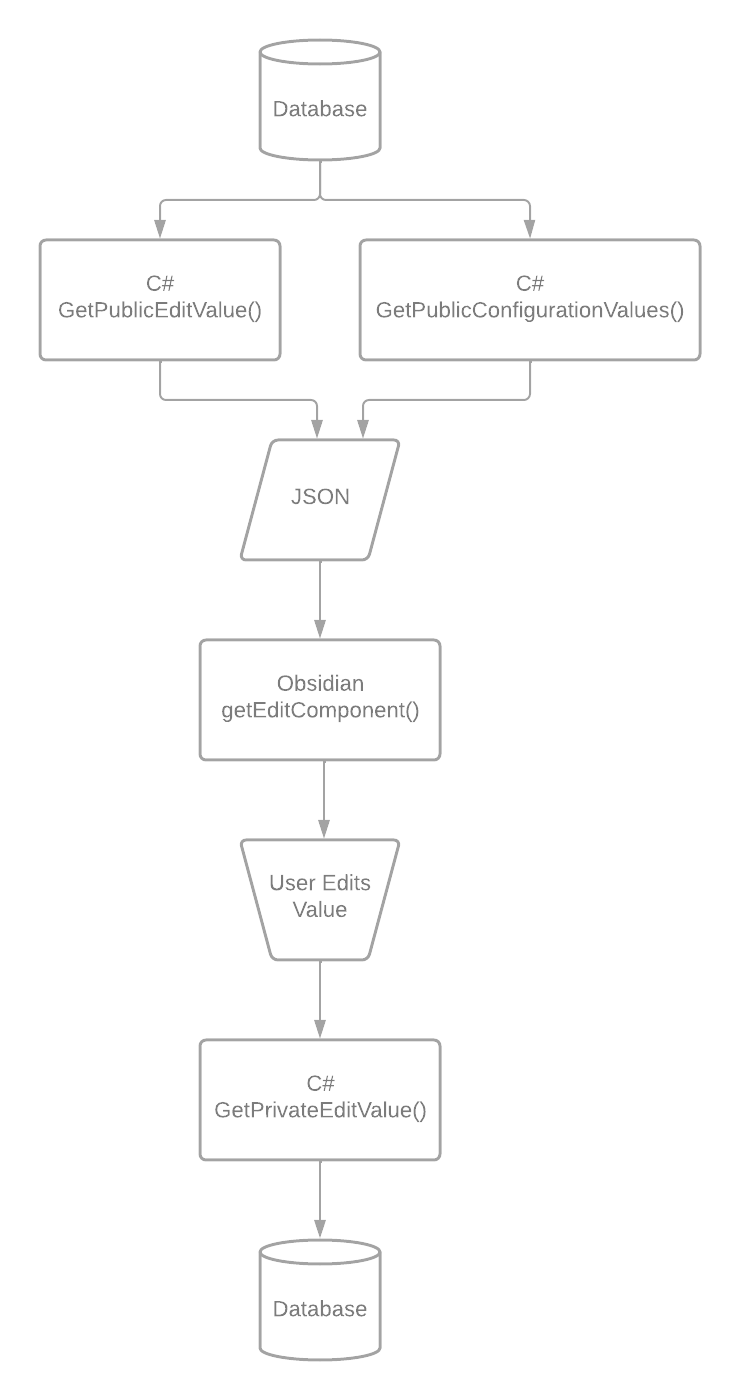

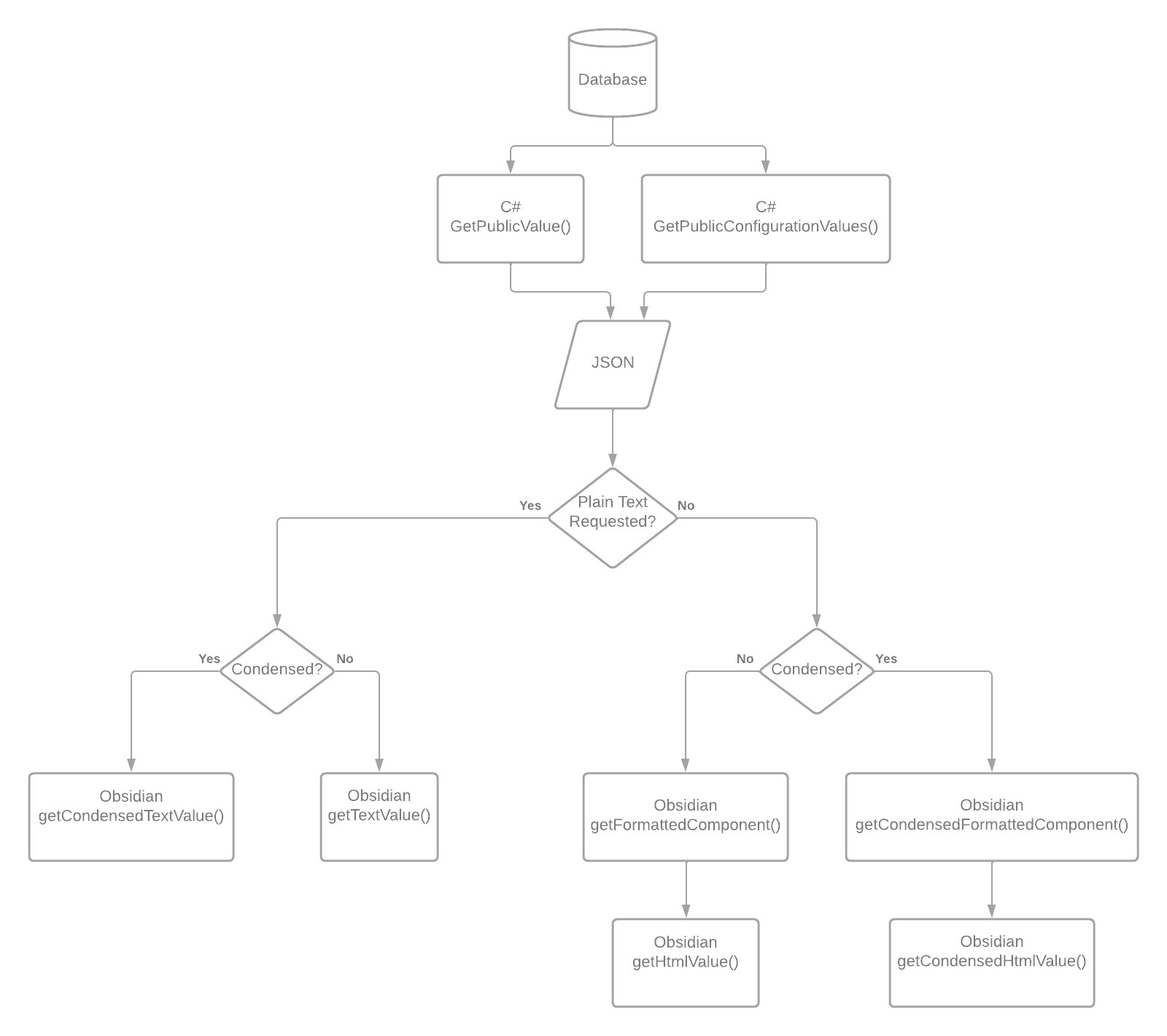

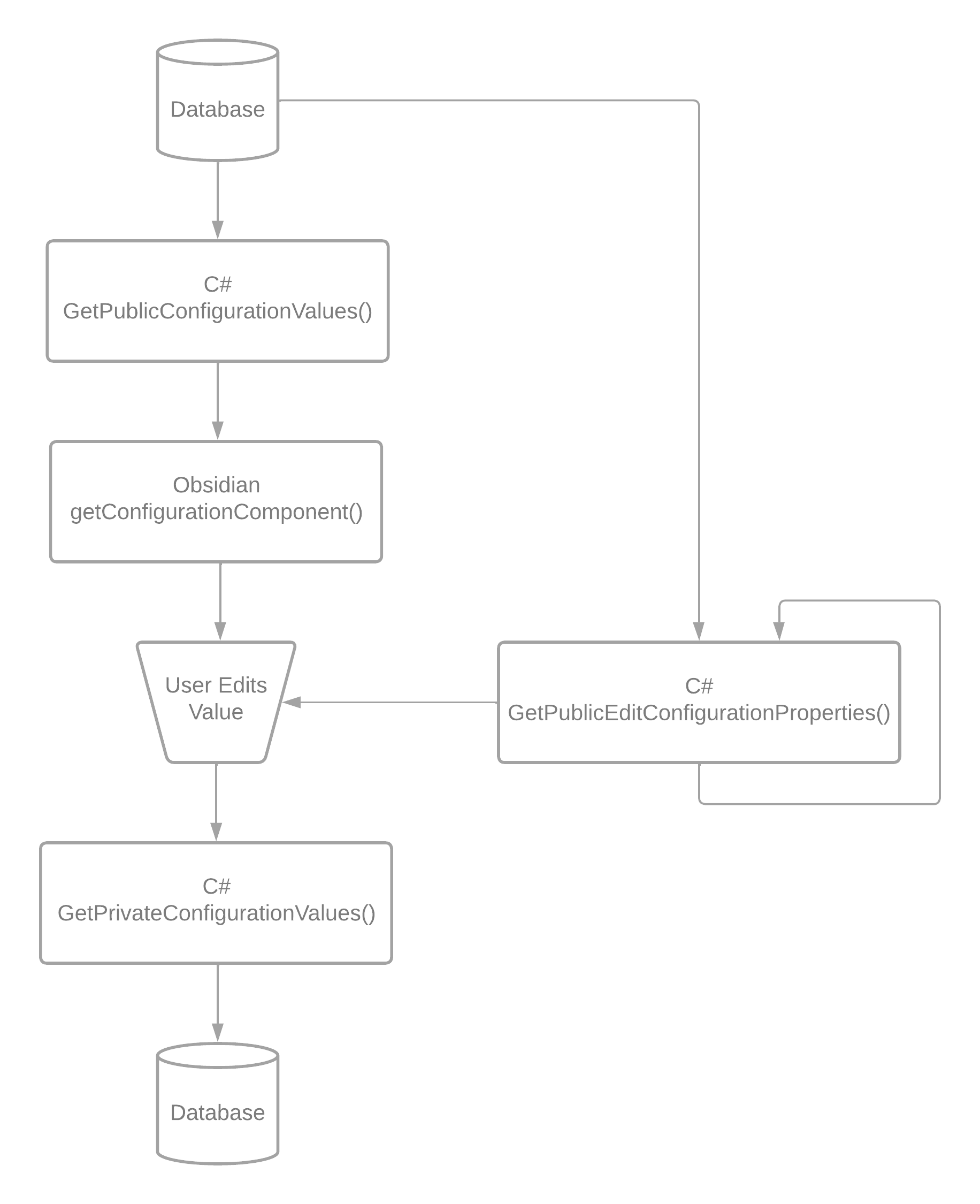

Below are a number of charts that visually describe the flow of data and the relationship of the various C# and Obsidian methods.

WebForms Flow Charts

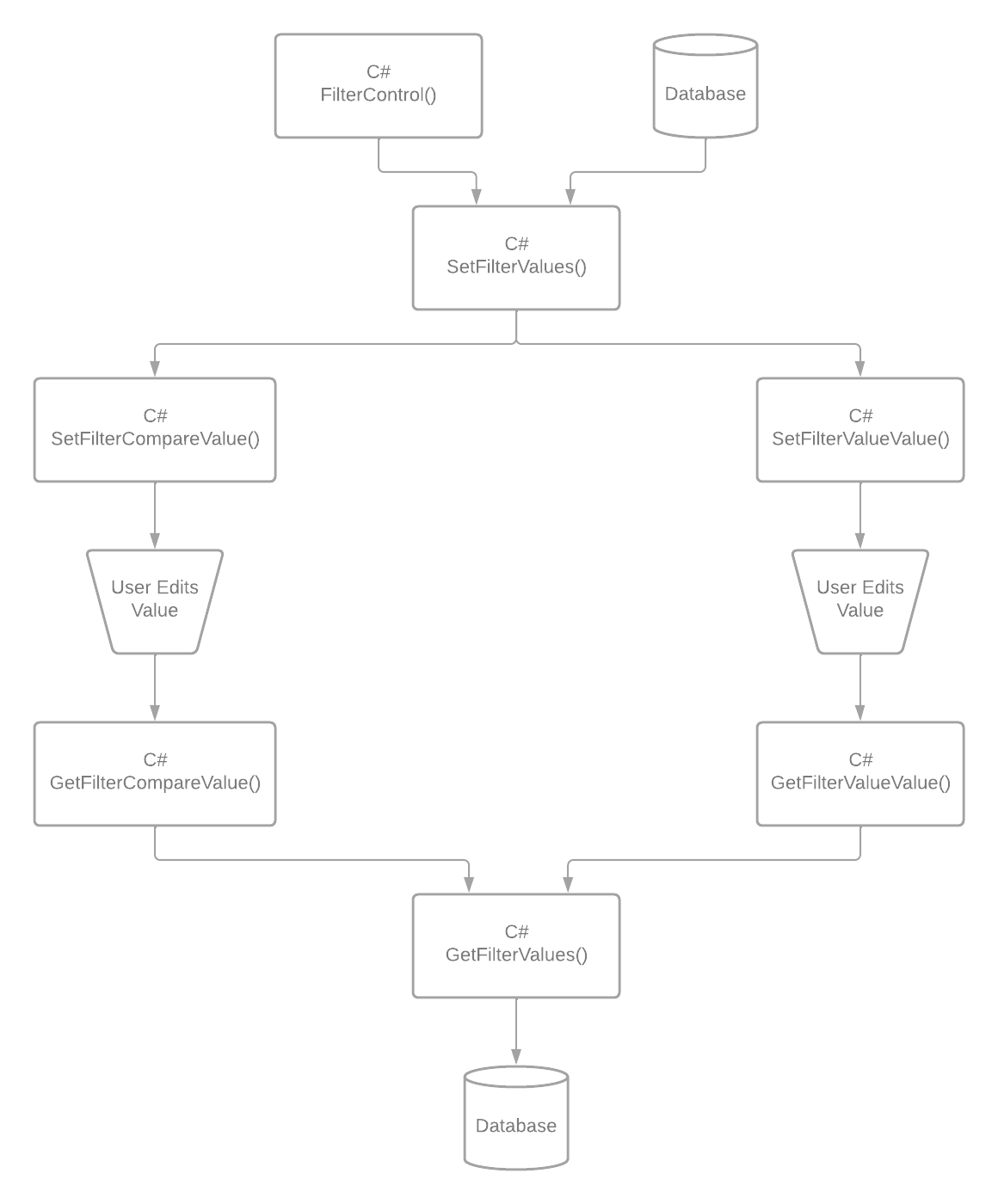

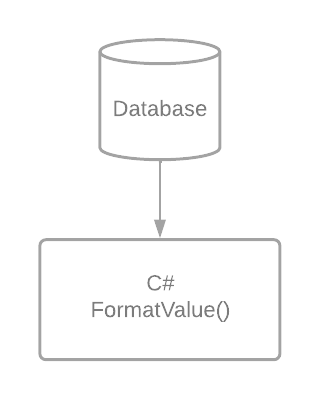

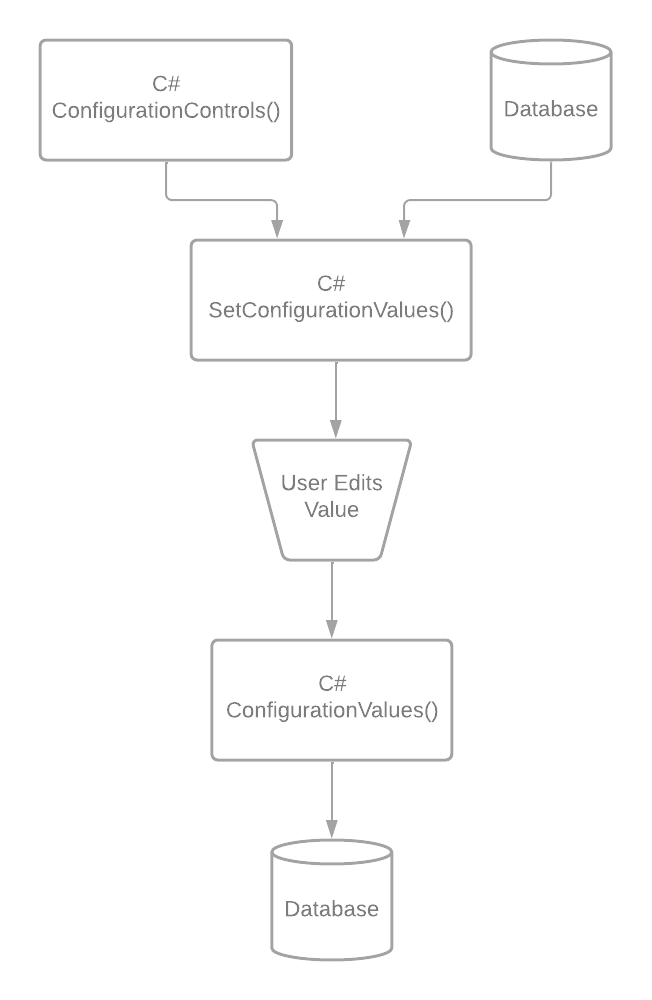

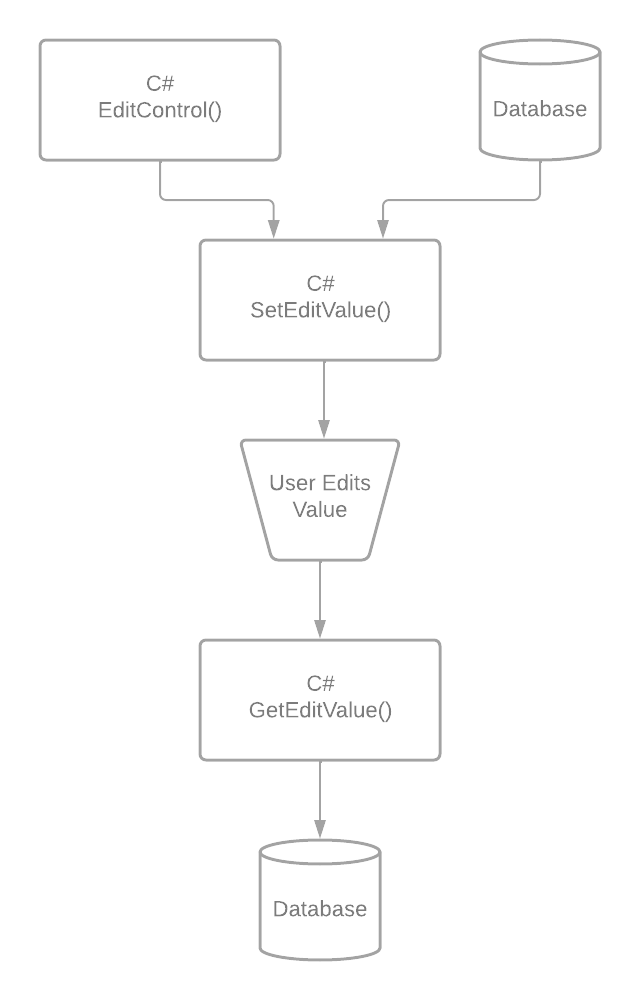

Below are a number of charts that visually describe the flow of data and the relationship of the various C# methods.

Advanced Topics

C# Reference

Below is the list of methods and properties that make up a field type as well as when they are used. The methods and properties with bold typeface are the ones you are most likely to need to implement when building a new field type.

Any method or property below with the annotation of [WebForms] means it has dependencies on WebForms and is not used by newer functionality.

A few items are also annotated with [Legacy]. This means it has legacy functionality, such as old method parameters or unclear naming, that might get updated in the future.

Viewing a Value

• GetPublicValue()
• GetTextValue()
• GetHtmlValue()
• GetCondensedTextValue()
• GetCondensedHtmlValue()
• FormatValue() [WebForms]
• FormatValueAsHtml() [WebForms]
• ValueAsFieldType()
• SortValue() [WebForms]
• AlignValue [WebForms]

The GetPublicValue() method is used to convert the private field value into a public one that can be used for viewing/formatting purposes by a remote device.

The 4 Get…Value() methods handle converting the raw field type value into one that can be presented to the individual. The "Condensed" versions should be used when space is at a premium, such as in a grid. The 2 FormatValue…() methods are used by WebForms for the same purpose.

ValueAsFieldType() is used to convert the value into a native object value. For example, the boolean field type returns an actual boolean true/false value from this method rather than a string containing the word.

SortValue() is used to provide a value that can be used for sorting purposes, for example an integer field type might return the value cast as an integer data type so that it can properly sort. NOTE: This really doesn't seem to be used except by DefinedType, DefinedValue and GroupMember. Is it really needed?

AlignValue is used to determine alignment when displayed in a grid. For example, in a table or grid, text is often left aligned while numbers are often right aligned. NOTE: This is only used by Currency, Decimal, Integer and RangeSlider. NOTE2: This was implemented using a WebForms enum which is not compatible with NET Core.

Editing a Value

• GetPublicEditValue()
• GetPrivateEditValue()
• EditControl() [WebForms]
• GetEditValue() [WebForms]
• SetEditValue() [WebForms]
• HasChangeHandler() [WebForms]
• AddChangeHandler() [WebForms]
• IsValid()

The GetPublicEditValue() and GetPrivateEditValue() methods are used to convert the private value to a public value for editing and the public value back into a private value. This may return a different value than GetPublicValue(), but is not required to do so. For example, the social security number field type returns a masked value in GetPublicValue() but the entire unmasked value in GetPublicEditValue().

The EditControl() method is used to obtain a UI control that can be used in WebForms to edit the value. Then SetEditValue() is used to set the initial value of that control from the private value. Finally, GetEditValue() is used to retrieve the private value from the control.

HasChangeHandler() is used to determine if the control returned by EditControl() supports change notification. If it does, then the AddChangeHandler() method can be used to add a callback for when the control's value has changed. NOTE: Because the postback used by a change handler is expensive, not all field types or controls will support this.

The IsValid() method is used to determine if the current edit value is valid for the field type. NOTE: As far as I can tell, this method is never called and can be removed.

Filtering a Value

• GetPublicFilterValue()
• GetPrivateFilterValue()
• FilterComparisonType
• HasFilterControl() [Legacy]
• FilterControl() [WebForms]
• SetFilterValues() [WebForms]
• SetFilterCompareValue() [WebForms]
• SetFilterValueValue() [WebForms]
• GetFilterValues() [WebForms]
• GetFilterCompareValue() [WebForms]
• GetFilterValueValue() [WebForms]
• GetFilterFormatScript() [WebForms]
• FormatFilterValues() [Legacy]
• PropertyFilterExpression() [Legacy]
• AttributeFilterExpression() [Legacy]
• ApplyAttributeQueryFilter() [WebForms]
• GetEqualToCompareValue() [Legacy]
• IsEqualToValue() [Legacy]
• IsComparedToValue() [Legacy]
• AttributeValueFieldName
• AttributeValueFieldType

The GetPublicFilterValue() method converts the private filter value into a public value that can be sent over the wire. Then later the GetPrivateFilterValue() method will convert that value back to a private value.

FilterComparisonType property indicates which comparisons this field type supports. For example, equal to, not equal to, greater than, etc.

HasFilterControl() is used to determine if this field type supports filtering. If it does not, then none of their other methods or properties in this section should be considered valid.

The FilterControl() method returns a UI control that can be used to enter a value to filter on. The SetFilterValues(), SetFilterCompareValue() and SetFilterValueValue() methods are used to set the initial values from the private value. After the individual makes changes, GetFilterValues(), GetFilterCompareValue(), and GetFilterValueValue() methods are called to get the private value from the filter control.

The GetFilterFormatScript() method is used with the above web forms methods to inject script onto the web page to dynamically format the filter into a user friendly string.

FormatFilterValues() takes the filter value and formats it into a user friendly string that can be displayed to the individual.

The PropertyFilterExpression() and the AttributeFilterExpression() methods convert the filter value into a LINQ expression that can be used to perform the filtering on the given property name or attribute.

ApplyAttributeQueryFilter(): NOTE: I don't know what this does, more specifically, why you would use this instead of AttributeFilterExpression() - especially since it takes values directly from the filter control.

The GetEqualToCompareValue() NOTE: This is always the value of EqualTo or null (in 4 cases). It is unclear why this exists instead of just inspecting the FilterComparisonType value instead.

The IsEqualToValue() method checks if the filter value is an EqualTo comparison type and that the value matches the specified value. NOTE: This does not appear to be used anywhere.

The IsComparedToValue() method appears to be so it can check if the given value matches the filter value. NOTE: Logic doesn't seem correct, and this does not appear to be used anywhere.

The AttributeValueFieldName and AttributeValueFieldType properties are used to determine which column on the AttributeValue table holds the value for comparison as well as the data type for that value.

Configuring Behavior

• ConfigurationKeys()
• HasDefaultControl
• GetPublicConfigurationValues()
• GetPrivateConfigurationValues()
• GetPublicEditConfigurationProperties()
• ConfigurationControls() [WebForms]
• ConfigurationValues() [WebForms]
• SetConfigurationValues() [WebForms]

The ConfigurationKeys() method was intended to return a list of all the configuration keys used by a field type. NOTE: this is not actually used or kept up to date and should be deprecated.

HasDefaultControl indicates if a default value control should be presented when editing the field type configuration values. For example, the Matrix field type does not have a default value as it doesn't make sense.

The GetPublicConfigurationValues() method is used to get the configuration values to be made public. It is passed a parameter that indicates if the public configuration values will be used for viewing, editing, or configuring. The editing usage configuration values should also include all the same data as viewing usage would. Similarly, configuration usage values should also include all the same data as editing usage would. In this way, they are cumulative to the lower usage levels.

GetPrivateConfigurationValues() method does the reverse of the previous method. It takes a set of public configuration values that were created for configuration usage and translates them back into private configuration values. For example, translating a defined type Guid to its integer identifier value.

GetPublicEditConfigurationProperties() is used to provide custom data to a remote device that is editing configuration values. For example, a defined value field type would include the defined types that can be selected from.

On the WebForms side, ConfigurationControls() gets the controls to be displayed when editing the configuration values. Then SetConfigurationValues() is called to set the initial values for those controls and later ConfigurationValues() is called to get the current values from the controls.

Misc

• IsSensitive()
• ConvertValueToPropertyType()

The IsSensitive() method provides a way for field types to indicate that they work with sensitive data. For example, when logging historical changes this is used to determine if the value should be logged to history or not.

• There is also a ConvertValueToPropetyType() method to convert a value to a specified C# data type. NOTE: This doesn't seem to be used anywhere and can probably be removed.

TypeScript Reference

In this section you will find all the methods and properties on the field type's class (found in the Rock.JavaScript.Obsidian/Framework/FieldTypes/xxXxxField.partial.ts file, where xxXxx is the camel case name of the field type) required to implement the Obsidian side of a field type. The methods and properties with bold typeface are the ones you are most likely to need to implement when building a new field type.

Viewing a Value

• getTextValue()
• getHtmlValue()
• getCondensedTextValue()
• getCondensedHtmlValue()
• getFormattedComponent()
• getCondensedFormattedComponent()

The getTextValue(), getHtmlValue(), getCondensedTextValue() and getCondensedHtmlValue() methods provide simple formatting of the public value into a human friendly representation. The Text variations provide a plain text representation while the Html versions provide a nicely formatted markup, such as a clickable link.

getFormattedComponent() and getCondensedFormattedComponent() provide the UI components used to render the formatted (HTML) values. By default, these will simply use the getHtmlValue() and getCondensedHtmlValue() results to build the component. This allows you to render some incredibly powerful user interfaces.

Editing a Value

• getEditComponent()

The getEditComponent() method returns the Obsidian component that will be used to edit the value. It will automatically be passed the current value as well as the configuration values. When the value changes it is emitted to the parent so there no is getValue() or setValue() methods to go along with this.

Filtering a value

• isFilterable()
• getFilterComponent()
• getSupportedComparisonTypes()
• getFilterValueDescription()
• getFilterValueText()

The isFilterable() method determines if the field type supports filtering. If this returns false then none of the other filtering related methods should be called.

The getFilterComponent() method returns an Obsidian component that handles the filter value editing for the field type. It will be passed the initial value and the configuration values automatically.

getSupportedComparisonTypes() returns the bit-flag comparison types that are supported by this field type. This is primarily used to populate the drop down to select which filtering operation to perform when editing the filter value.

The getFilterValueDescription() and getFilterValueText() methods convert the filter value into a user friendly string that represents the filter operation. getFilterValueText() returns just the value of the filter value, for example "3". getFilterValueDescription() is responsible for returning a more complete string, such as "greater than '3'".

Configuring Behavior

• getConfigurationComponent()
• hasDefaultComponent()

The getConfigurationComponent() method provides the Obsidian component that will handle editing the configuration values for the field type. It is passed the current configuration values as well as the configuration properties.

hasDefaultComponent() determines if a "Default Value" edit component should be included when editing the configuration values.
