Use Entity Search

Entity Search makes querying Rock feel less like writing code and more like getting answers. With just a few simple expressions, you can refine and fetch exactly the data you need, right when you need it.

When you're building custom tools, Entity Search gives you a flexible way to work with Rock records—no SQL required. You can use the Searches you write with API v2 or even Entity Commands in Lava. We'll explore both options in a bit.

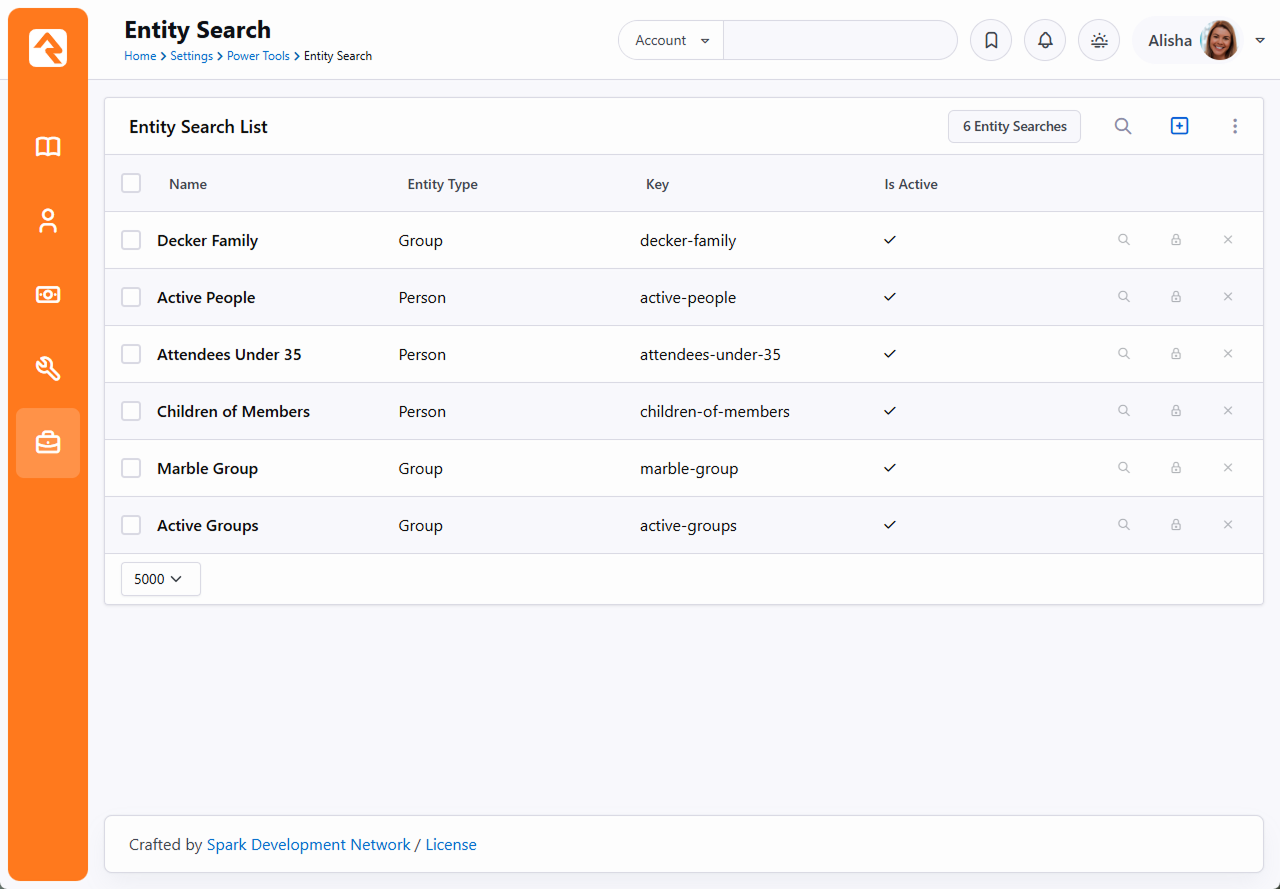

To add an Entity Search, navigate to Admin Tools > Settings > Entity Search.

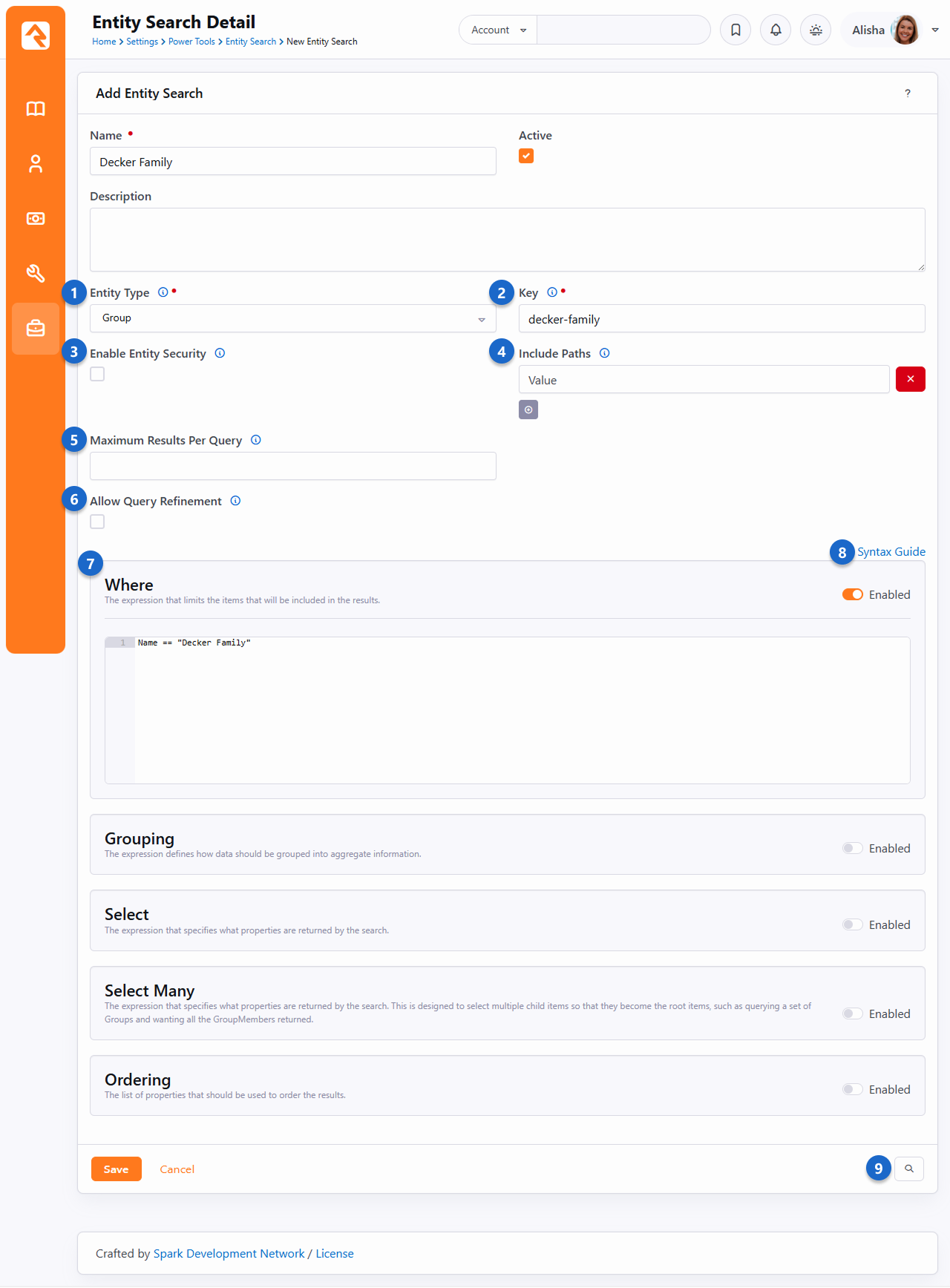

To add a new Entity Search, press ti ti-plus.

Make sure to click Save once you are done, and you have a Search that is ready for API v2 usage!

Our Entity Search uses Language Integrated Queries—also known as LINQ—a way to query data in the programming language C#. More on how to use LINQ on our Dynamic LINQ syntax.

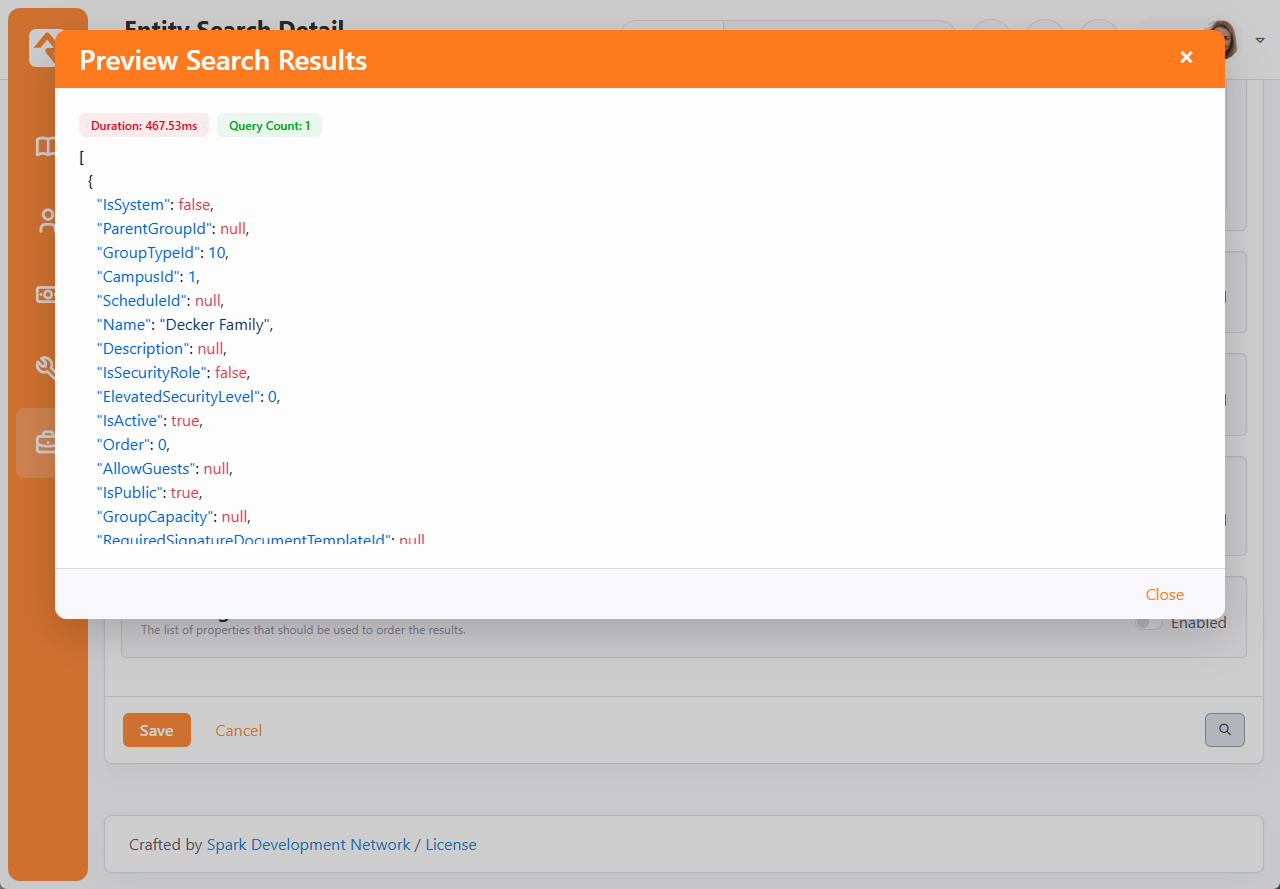

If your expression is accurate, it will display JSON data when you select ti ti-search.

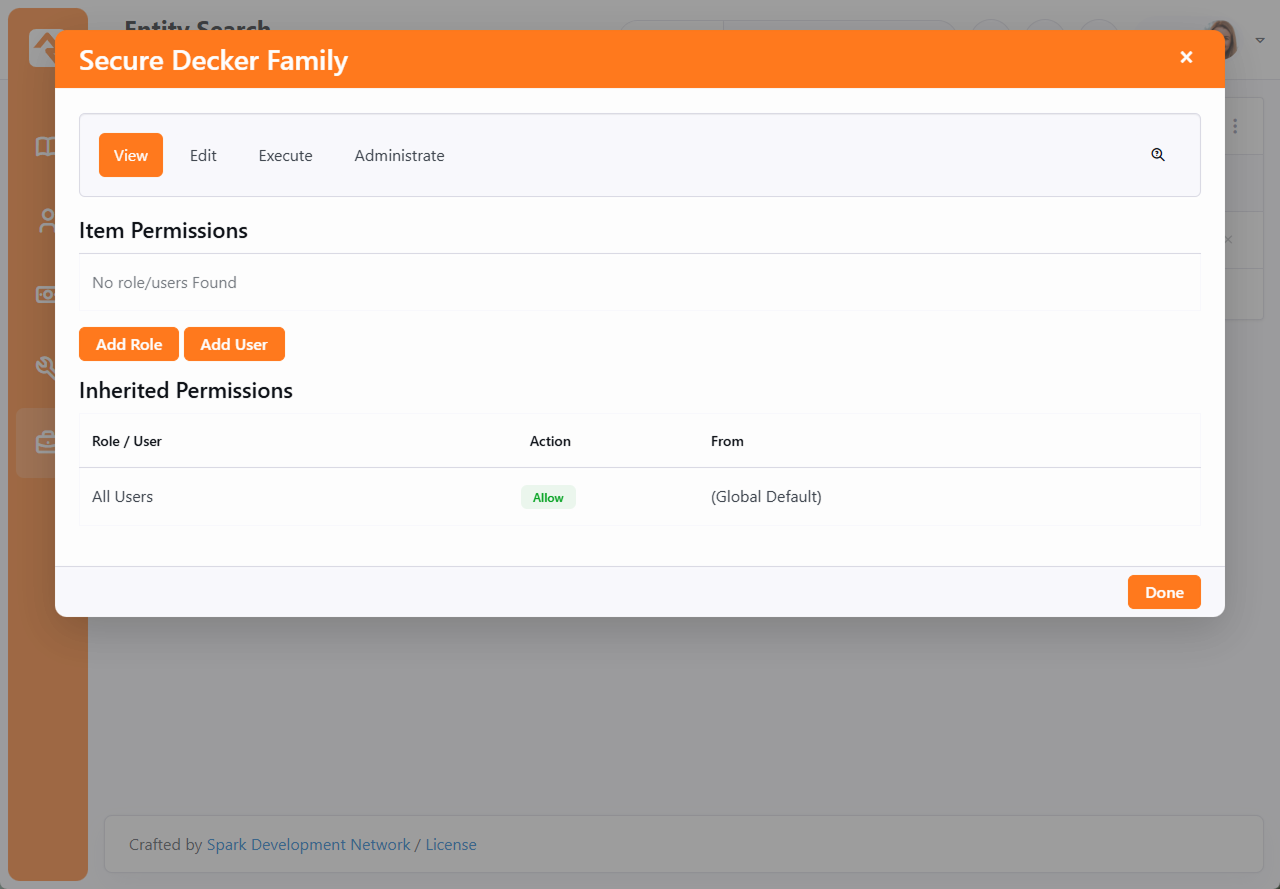

When you create a search query, you can configure its security by pressing ti ti-lock.

By default, only View permissions are given to all users. To use this query in an API call or Entity Search, you must give Execute permissions.

For more on using an Entity Search query with Lava, see the Lava Docs on Entity Commands.

Extend Entity Search with Payloads

Once you've created an Entity Search in Rock, you've built a reusable query that refines and retrieves data. But sometimes, the built-in UI options don't give you quite enough flexibility.

That's where payloads come in.

A payload is a block of JSON you can attach to a request to customize how your Entity Search behaves. Instead of replacing your query, the payload lets you refine, override, or extend it—just for that specific use case.

Example: Simple Filter and Select

{
  "where": "id < 10"
  "select": "new (Id, Guid, Name, GroupType.Name as Type)",
  "order": "id, name desc, type.name",
  "skip": 2,
  "take": 1
}

• Filter: Include only items where Id < 10
• Select Fields:
  • Id
  • Guid
  • Name
  • GroupType.Name (renamed to Type)
• Sort the results by:
  • Id in ascending order
  • Name in descending order
  • GroupType.Name in ascending order
• Skip the first 2 items after sorting
• Take only 1 item from the remaining results

{
  "id": 2,
  "guid": "628c51a8-4613-43ed-a18d-4a6fb999273e",
  "name": "RSR - Rock Administration",
  "type": "Security Role"
}

Example: Group and Count

{
  "where": "GroupTypeId == 1 || GroupTypeId == 10",
  "groupby": "new (GroupTypeId, GroupType.Name)",
  "select": "new { Key.GroupTypeId, Key.Name, Count() as Total }",
  "order": "Total desc",
  "skip": 0,
  "take": 10
}

What it does:

• Filter the Group records where GroupTypeId is 1 or 10.
• Group the filtered records by:
  • GroupTypeId
  • GroupType.Name
• Select the grouped values:
  • GroupTypeId
  • GroupType.Name
• Attempt to sort the results by Total in descending order.
• Skip the first 0 records (i.e., start at the top).
• Take the first 10 results after sorting.

{
  "count": 2,
  "items": [
    {
      "groupTypeId": 1,
      "name": "Security Role",
      "total": 25
    },
    {
      "groupTypeId": 10,
      "name": "Family",
      "total": 42
    }
  ]
}

Unique Payload Properties:

Use Entity Search With the v2 API

You can find all entities with available REST endpoints in the API v2 Docs, located at Admin Tools > Settings > API v2 Docs. These endpoints can be used with your custom code.

To try an operation that uses a SearchKey—such as a GET or POST—this is what you will do:

1. Find the endpoint for your created SearchKey—in this case we are using Groups.
2. Click on a statement that has {searchKey} appended to the end of the method.
3. Click Try it Out.
4. Type in the key created for your SearchKey.
5. Click Execute.
6. You should see an output in the Response Body reflecting your search query.
